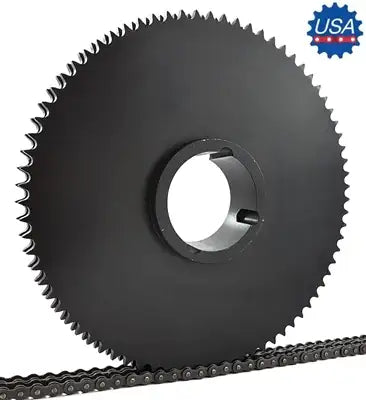

D08CTB84 Sprocket (Taper Bushed)
Note:
Custom Cut to Length Chain Also Available
SKU: D08CTB84-SPROCKET
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
D08CTB84 Sprocket (Taper Bushed) Features
D08CTB84 Sprocket (Taper Bushed) Specifications
This D08CTB84 sprocket is a metric taper bushed style roller chain sprocket manufactured under ISO and British Standard 228. and is made to accept a 2517 taper bushing Our D08CTB84 sprockets are made with reliability and performance in mind, so we use high-quality carbon steel (CS) and have the sprocket precision cut to ensure maximum performance and wear life. We also offer upgrades on our D08CTB84 sprockets such as black-oxide coatings and heat-treated hardened teeth, though hardened tooth sprockets are typically not utilized on tooth counts past 30. Besides the 84 tooth sprocket, we also stock a high-quality 08B-2 roller chain, 2517 bushings, and a wide array of roller chain accessories. For more information or to get a quote on taper bushed D08CTB84 sprockets, please contact us and one of our sales team members will be happy to assist you.
D08CTB84 Sprocket Dimensions
- Sprocket Size: D08CTB84
- Tooth Count: 84
- Pitch Diameter: 339.65mm
- Bushing Size: 2517
- Maximum Bushing Bore: 63.50mm
- Length Thru Bore (L): 44.45mm
- Hub Diameter (C): 108mm
- Sprocket Weight: 16.87 kG
- Bushing Weight: 1.59 kG
- Sprocket Size: D08CTB84
- Tooth Count: 84
- Pitch Diameter: 339.65mm
- Bushing Size: 2517
- Maximum Bushing Bore: 63.50mm
- Length Thru Bore (L): 44.45mm
- Hub Diameter (C): 108mm
- Sprocket Weight: 16.87 kG
- Bushing Weight: 1.59 kG
