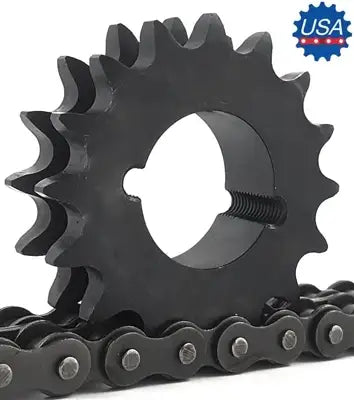

D08BTB19 Sprocket (Taper Bushed)
Note:
Custom Cut to Length Chain Also Available
SKU: D08BTB19-SPROCKET
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
D08BTB19 Sprocket (Taper Bushed) Features
D08BTB19 Sprocket (Taper Bushed) Specifications
This D08BTB19 sprocket is a metric taper bushed style roller chain sprocket manufactured under ISO and British Standard 228. and is made to accept a 1210 taper bushing. Our D08BTB19 sprockets are made with reliability and performance in mind, so we use high-quality carbon steel (CS) and have the sprocket precision cut to ensure maximum performance and wear life. We also offer upgrades on our D08BTB19 sprockets such as black-oxide coatings and heat-treated hardened teeth, though we often have these specific sprockets with those features already added right off the shelf. Besides the 19 tooth sprocket, we also stock a high-quality 08B-2 roller chain, 1210 bushings, and a wide array of roller chain accessories. For more information or to get a quote on taper bushed D08BTB19 sprockets, please contact us and one of our sales team members will be happy to assist you.
D08BTB19 Sprocket Dimensions
- Sprocket Size: D08BTB19
- Tooth Count: 19
- Pitch Diameter: 77.16mm
- Bushing Size: 1210
- Maximum Bushing Bore: 31.75mm
- Length Thru Bore (L): 25.40mm
- Hub Diameter (C): 63mm
- Sprocket Weight: 0.36 kG
- Bushing Weight: 0.27 kG
- Sprocket Size: D08BTB19
- Tooth Count: 19
- Pitch Diameter: 77.16mm
- Bushing Size: 1210
- Maximum Bushing Bore: 31.75mm
- Length Thru Bore (L): 25.40mm
- Hub Diameter (C): 63mm
- Sprocket Weight: 0.36 kG
- Bushing Weight: 0.27 kG
