Power Transmission > Sprockets > Metric Roller Chain Sprockets > 08B-2 Double Chain Sprockets
D08B84 Sprocket With Stock Bore
Note:
Custom Cut to Length Chain Also Available
SKU: D08B84-SPROCKET
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
D08B84 Sprocket With Stock Bore Features
D08B84 Sprocket With Stock Bore Specifications

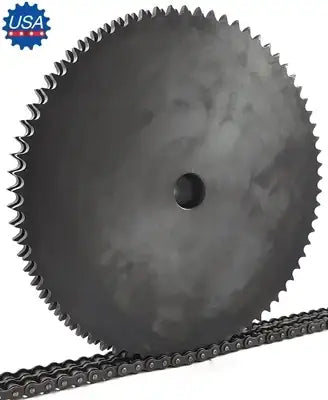

This D08B84 sprocket with a stock bore is a metric roller chain sprocket manufactured under ISO and British Standard 228. Our D08B84 sprockets are made with reliability and performance in mind, so we use high-quality carbon steel (CS) and have the sprocket precision cut to ensure maximum performance and wear life. Besides the stock bore we also can supply these sprockets with a specific plain or finished (has key-way and set screws) bore size. We also offer upgrades on our D08B84 sprockets such as black-oxide coatings and heat-treated hardened teeth, though hardened tooth sprockets are typically not utilized on tooth counts past 30. Besides the 84 tooth sprocket, we also stock a high-quality 08B-2 roller chain and a wide array of roller chain accessories. For more information or to get a quote on D08B84 sprockets, please contact us and one of our sales team members will be happy to assist you.
D08B84 Sprocket Dimensions
- Sprocket Size: D08B84
- Tooth Count: 84
- Pitch Diameter: 339.65mm
- Stock Bore: 30mm
- Maximum Recommended Bore: 80mm
- Hub Dia Diameter (H): 120mm
- Length Thru Bore (L): 45mm
- Sprocket Weight: 7.29 kG
- Sprocket Size: D08B84
- Tooth Count: 84
- Pitch Diameter: 339.65mm
- Stock Bore: 30mm
- Maximum Recommended Bore: 80mm
- Hub Dia Diameter (H): 120mm
- Length Thru Bore (L): 45mm
- Sprocket Weight: 7.29 kG
