Power Transmission > Sprockets > Roller Chain Sprockets > Single Strand Roller Chain Sprockets > #80 Roller Chain Sprockets > #80 Q Type Sprockets
80Q70 Sprocket (Taper Bushed)
Note:
Custom Cut to Length Chain Also Available
$745.99
SKU: 80Q70-SPROCKET
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
80Q70 Sprocket (Taper Bushed) Features
80Q70 Sprocket (Taper Bushed) Specifications

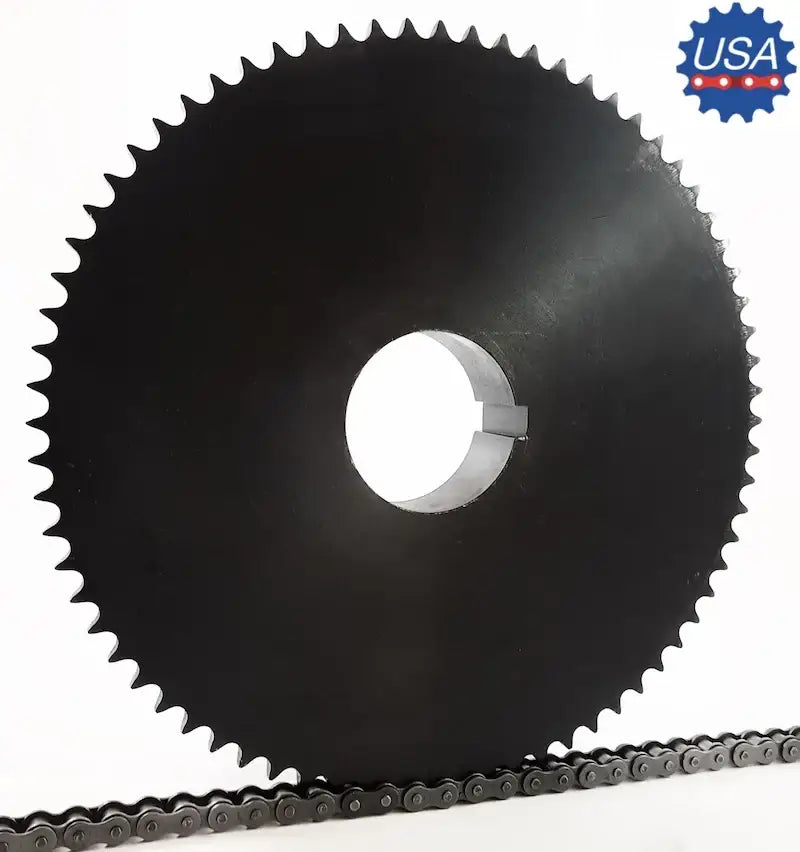

This 80Q70 sprocket is a durable, high quality, and precision 70 tooth sprocket that is manufactured to accept a Q1 bushing. Something that is notable about this sprocket is that it fully meets all ANSI Standards, which insures proper contact between the #80 roller chain and sprocket, thus preventing premature wear or breakage and this means that it will directly interchange with most other manufactures sprockets. This sprocket is also black oxide coated which increases resistance to the environment and prevents early rust build up. 80Q70 sprockets are made to accept a Q1 size taper bushing which we also stock with a wide range of bore sizes. We also offer sprockets with finished bore configurations, and if you are needing a custom bore sprocket we the capabilities on providing those to within a fast lead time and at really great prices. For more information or large inquiry request please contact us and we will be happy to assist you.
Dimensions:
Phone: (407) 347-3519
Email: sales@usarollerchain.com
Dimensions:
- Sprocket Size: 80Q70
- Tooth Count: 70
- Bushing Type: Q1
- Outside Diameter: 22.870"
- Pitch Diameter: 22.289"
- Sprocket Type: 4
- Dimension (OL): 2-25/32"
- Dimension (L): 2-1/2"
- Dimension (H): 4-1/8"
- Dimension (P): 1-15/16"
- Dimension (T): 0.575"
- Bushing Weight: 3.5 LBS
- Sprocket Weight: 60.0 LBS
Email:
- Sprocket Size: 80Q70
- Tooth Count: 70
- Bushing Type: Q1
- Outside Diameter: 22.870"
- Pitch Diameter: 22.289"
- Sprocket Type: 4
- Dimension (OL): 2-25/32"
- Dimension (L): 2-1/2"
- Dimension (H): 4-1/8"
- Dimension (P): 1-15/16"
- Dimension (T): 0.575"
- Bushing Weight: 3.5 LBS
- Sprocket Weight: 60.0 LBS
