Home > Power Transmission > Sprockets > Roller Chain Sprockets > 80C76 Sprocket - ANSI 80C76 Sprocket

80C76 Sprocket - ANSI 80C76 Sprocket

Name: 80C76 Sprocket - ANSI 80C76 Sprocket
Brand: USA ROLLER CHAIN
SKU: 80C76-SPROCKET
Price: 1120.99 USD
Availability: InStock

$1,120.99

SKU: 80C76-SPROCKET

In stockOnly 0 left in stockBackordered Out of stock Item is unavailable

Request a Quote

Don’t see what you need? In a rush?

Call us!

Buy it With:

80C76 Sprocket - ANSI 80C76 Sprocket Description/Features

80C76 Sprocket - ANSI 80C76 Sprocket Specifications

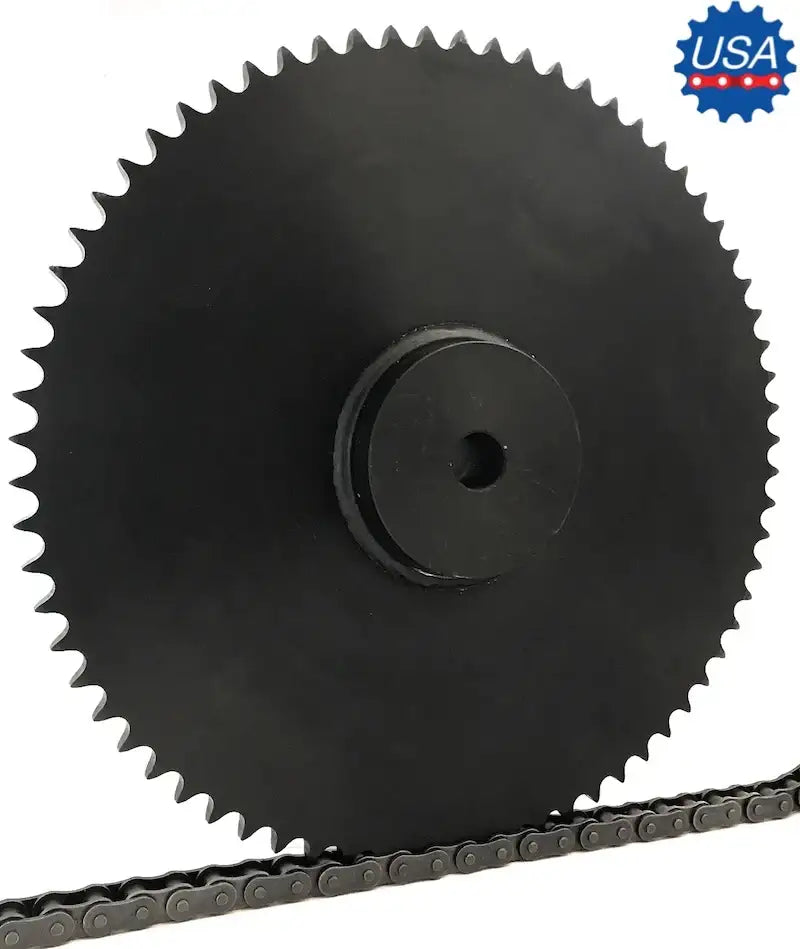

This 80C76 sprocket is a durable, premium quality, and precision 76-tooth sprocket that is manufactured out of high-quality steel. This sprocket is manufactured for optimum performance, durability, and to strict quality control standards. Something else that is notable about this sprocket is that it fully meets all ANSI Standards, which insures proper contact between the #80 roller chain and sprocket, preventing premature wear or breakage. It is also black oxide coated which increases the sprockets overall resistance to the environment along with preventing early rust build up. 80C76 sprockets with a stock bore come with the standard 1-1/2" inside diameter hole with no keyway or setscrews and can be easily machine bored to custom sizes. We also offer 80C76 sprockets with finished bore configurations right off the shelf from stock, and if you are needing a custom bore sprocket we the capabilities on providing those to within a fast lead-time and at really great prices. For more information, sprocket re-boring, MTO sprockets, or large quantities please contact us and we will be happy to assist you.

Dimensions:

Sprocket Size: 80C76
Tooth Count: 76
Hub Type: C
Outside Diameter: 24.780"
Stock Bore Size: 1-1/2"
Maximum Bore Size: 4-1/4"
Hub Diameter: 6-1/4"
Length Thru Bore: 3-1/2"
Weight: 87.8 LBS
Common Interchanges: 80C76-SB
