Power Transmission > Sprockets > Roller Chain Sprockets > Single Strand Roller Chain Sprockets > #80 Roller Chain Sprockets > #80 B-Hub Sprockets > 80B50 Sprockets

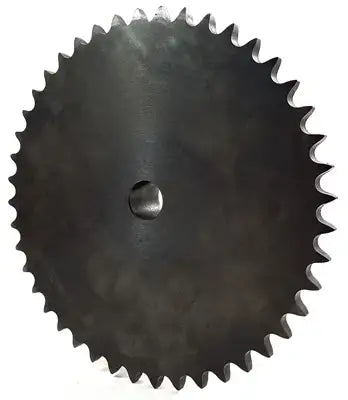

80B50 Sprocket | 80B50 Sprocket - Stock Bore Sprocket
Note:
Custom Cut to Length Chain Also Available
$333.99
SKU: 80B50-SPROCKET
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
80B50 Sprocket | 80B50 Sprocket - Stock Bore Sprocket Features
80B50 Sprocket | 80B50 Sprocket - Stock Bore Sprocket Specifications
Our 80B50 sprocket is a high-quality precision industrial power transmission component made from premium C1045 steel and a black oxide coating. The 50 precision-machined teeth on this 80B50 sprocket are designed to mate perfectly with ANSI 80 roller chains while improving overall performance and wear life. At the same time, the base material of our 80B50 sprocket is 1045-carbon steel, which provides higher tensile strength, Brinell hardness, and yield strength compared to the standard 1018 steel used by other brands. Finally, this sprocket undergoes specific black oxide coating processes to protect it in mildly corrosive environments, such as outdoor or humid applications. More specific to this sprocket itself, it is 16.500" in diameter (O.D.) and is a b-hub configuration (hub on one side), and is supplied with a plain stock bore. Stock bore b-hub sprockets can be bored to specific shaft sizes and typically include a key-way and two set screws for drive applications or utilize a bearing type for idler applications. We also supply custom 80B50 sprockets upon request. Discover the difference today when you choose our genuine tier-one 80B50 sprockets or one of our premium roller chain products! For additional information or to get a large quantity quote on 80B50 sprockets, contact our customer support team, and we will be happy to assist you!
80B50 Sprocket Dimensions
- Part #: 80B50
- Tooth Count: 50
- Outside Diameter (O.D.): 16.500"
- Type: B
- Stock Bore: 1.25"
- Recommended Max. Bore: 3.25"
- Hub Diameter: 4.75"
- Length Thru Bore: 2"
- Weight: 37.3 LBS
- Part #: 80B50
- Tooth Count: 50
- Outside Diameter (O.D.): 16.500"
- Type: B
- Stock Bore: 1.25"
- Recommended Max. Bore: 3.25"
- Hub Diameter: 4.75"
- Length Thru Bore: 2"
- Weight: 37.3 LBS
