Premium 80C13 Sprocket
$77.99
SKU: 80C13-SPROCKET
In stockOnly 0 left in stockBackordered
Out of stock
Item is unavailable
Contact Us For Pricing & Availability
Carbon Steel Chains
| Features | Premium/Premier | General Duty Plus | Economy Plus |
|---|---|---|---|
| Solid Bushings | Split Bushings in most cases | Split Bushings | |
| Solid Rollers | |||
| Through-Hardened Pins | Case-Hardened Pins | Heat-Treated Pins | |
| Case-Hardened Rollers | Heat-Treated in Some Chains | ||
| Case-Hardened Bushings | Heat-Treated in Some Chains | ||
| Wide Contour Plates | Standard Contour Plates | Standard Contour Plates | |
| Superior Pin to Plate Contact | |||
| High-Hold Riveting | Standard Dual-Stake Rivets | Standard Dual-Stake Rivets | |
| Factory Pre-Loading | Not Standard on Economy Chains | ||
| Specific Heat-Treatment on Every Component | Some Components Might be Heat-Treated | ||
| Premium Alloy & Carbon Materials | High-Quality Carbon Materials | Standard-Quality Carbon Materials | |
| Shot-Peened Components | Non Shot-Peened Components | Non Shot-Peened Components | |
| High-Precision Components | Standard Precision Components | Low Precision Components | |
| Conforms to ANSI B29.1 or ISO/DIN Standards |
Premium 80C13 Sprocket Description/Features
Premium 80C13 Sprocket Specifications

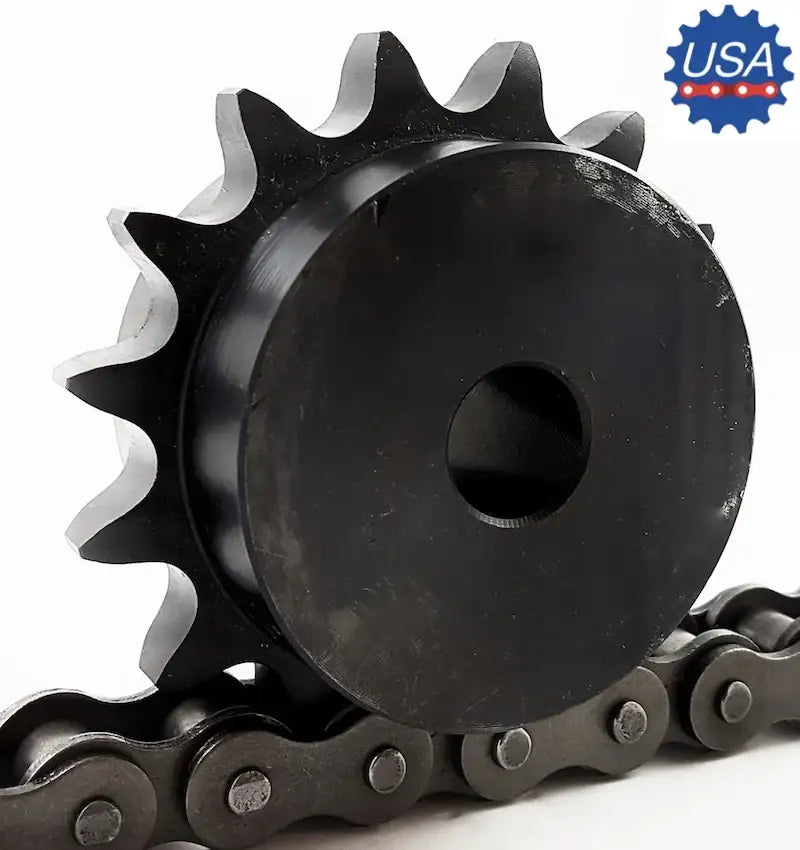

This 80C13 sprocket is a durable, premium quality, and precision 13-tooth sprocket that is manufactured out of high-quality steel. This sprocket is manufactured for optimum performance, durability, and to strict quality control standards. Something else that is notable about this sprocket is that it fully meets all ANSI Standards, which insures proper contact between the #80 roller chain and sprocket, preventing premature wear or breakage. It is also black oxide coated which increases the sprockets overall resistance to the environment along with preventing early rust build up. 80C13 sprockets with a stock bore come with the standard 1" inside diameter hole with no keyway or setscrews and can be easily machine bored to custom sizes. We also offer 80C13 sprockets with finished bore configurations right off the shelf from stock, and if you are needing a custom bore sprocket we the capabilities on providing 80C13 to within a fast lead-time and at really great prices. For more information, sprocket re-boring, MTO sprockets, or large quantities please contact us and we will be happy to assist you.
Dimensions:
Phone: (407) 347-3519
Email:sales@usarollerchain.com
Dimensions:
- Sprocket Size: 80C13
- Tooth Count: 13
- Outside Diameter: 4.660"
- Stock Bore: 1"
- Recommended Maximum Bore: 2"
- Hub Diameter: 3-1/64"
- Length Thru Bore: 2-3/8"
- Sprocket Weight: 5.32 LBS
Phone: (407) 347-3519
Email:
- Sprocket Size: 80C13
- Tooth Count: 13
- Outside Diameter: 4.660"
- Stock Bore: 1"
- Recommended Maximum Bore: 2"
- Hub Diameter: 3-1/64"
- Length Thru Bore: 2-3/8"
- Sprocket Weight: 5.32 LBS
