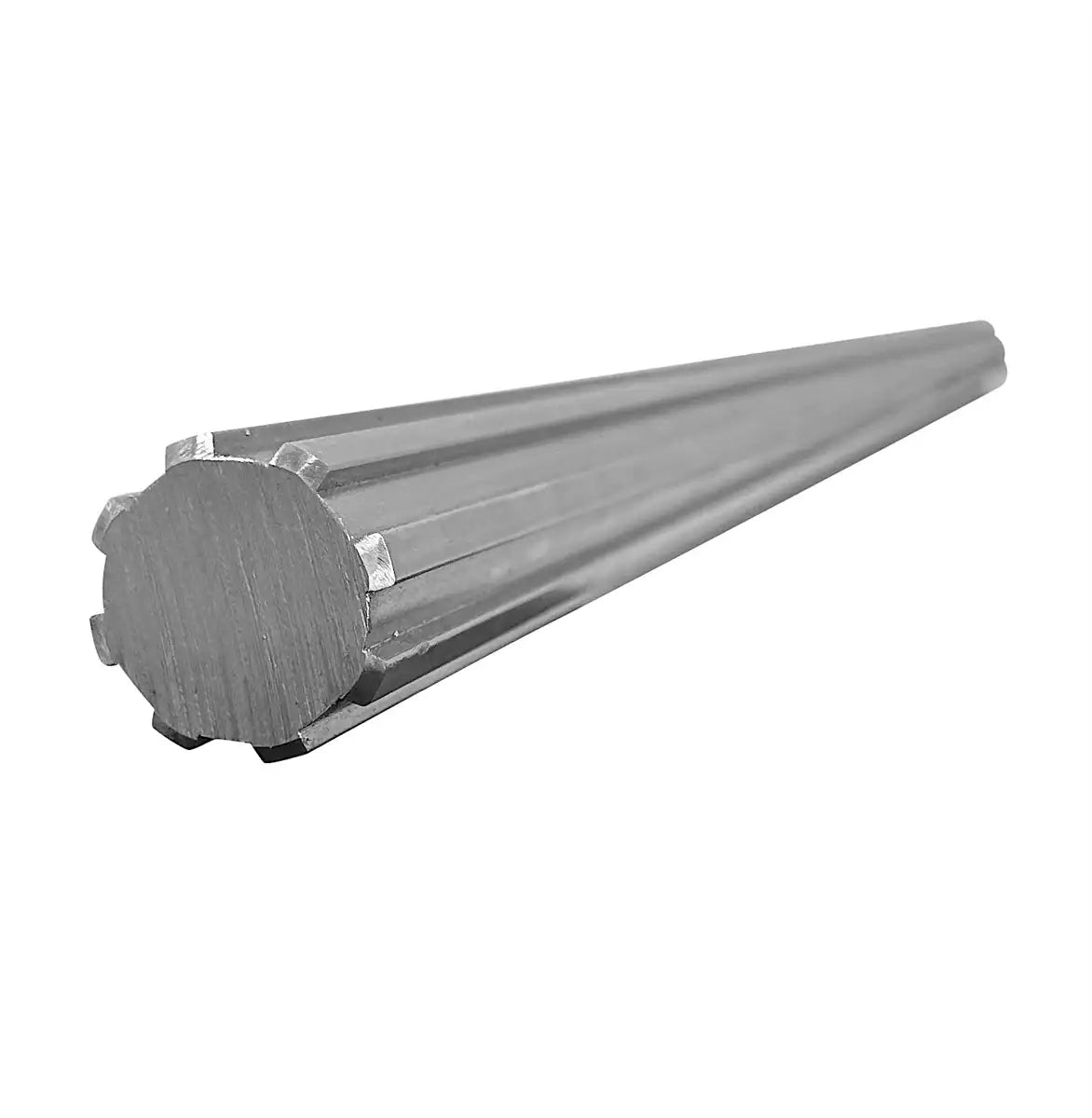

42mm Spline Shaft 8-Splines 304SS Material - 6000mm

Our high-quality stainless 42mm spline shaft, featuring 8 splines and measuring 6000mm in length, is precisely machined from 304-grade stainless steel, ensuring exceptional resistance to corrosion and abrasion. Ideal for food-grade, high-temperature, and low-temperature environments, this shaft complies with DIN ISO 14 standards, guaranteeing compatibility and interchangeability with other brands and components such as hubs, collars, and couplings. While it is available in a 6000mm length, we also provide other standard or custom lengths of stainless 42mm splined shafting. Designed for precise and efficient torque transmission, it is perfect for industrial machinery, food processing equipment, and mechanical drives. Additionally, stainless 42mm spline shafts can be used for mechanically positioning components. For more information or to request a quote on our premium stainless 42mm spline shaft with 8 splines in a 6000mm length, please contact our customer service team, and we will be happy to assist you!

42mm Spline Shaft With 8-Splines Dimensions

• Shaft Diameter (D): 42mm
• Amount of Splines: 8
• Dimension (d): 36mm
• Dimension (b): 7mm
• Length: 6000mm
• Material: 304SS
• Weight: 9.30 Kg/ Meter
• Length Tolerance: 0.8mm/ Meter
• Maximum Torsion: 0.5mm/ Meter
