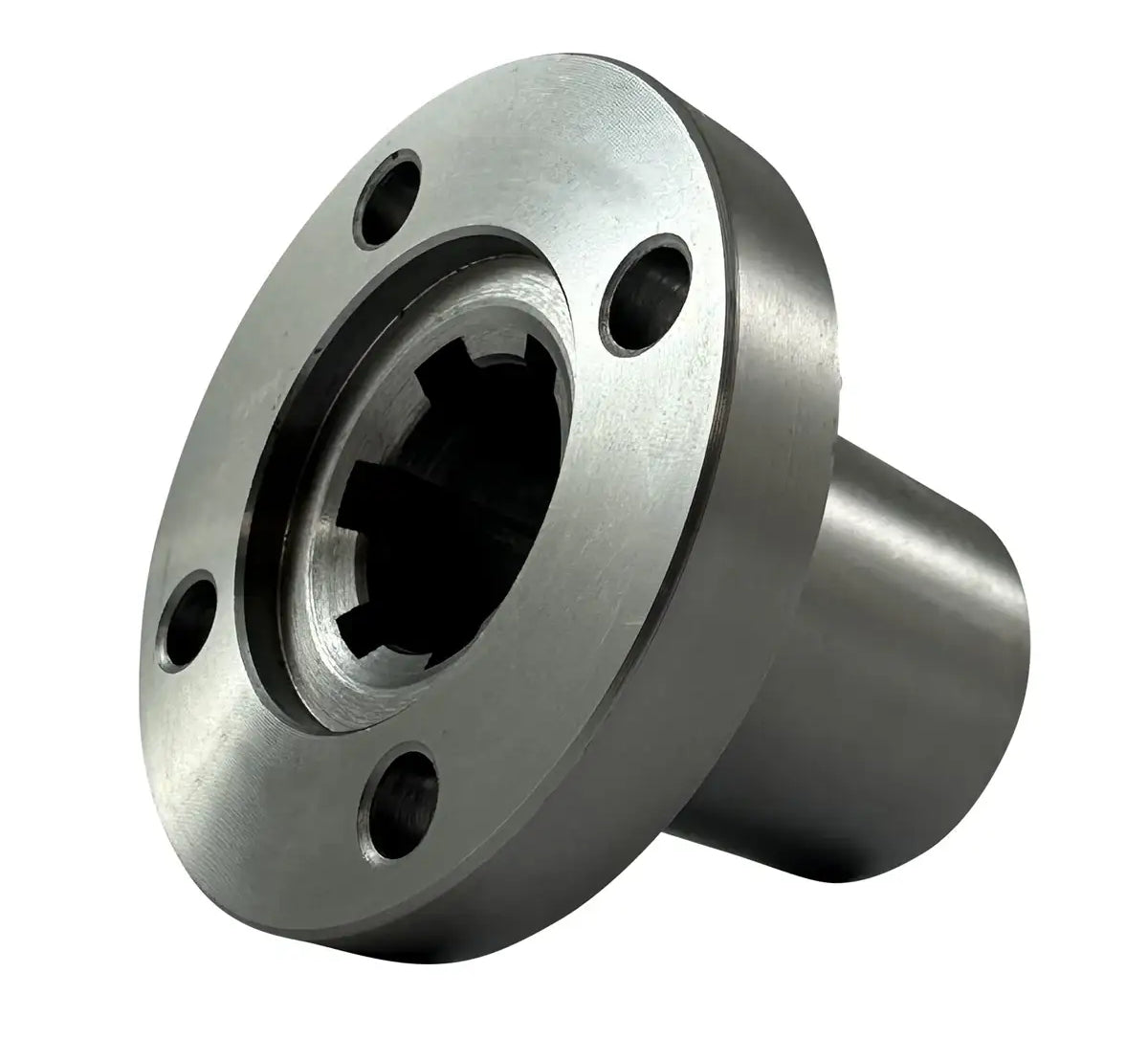

Splined Hub With Flange for 42mm Shaft With 8 Splines - C45 Material
Splined Hub With Flange for 42mm Shaft With 8 Splines - C45 Material
Note:
Custom Cut to Length Chain Also Available
Product Code: 64851200-FLANGED-HUB
Shipping calculated at checkout.
Couldn't load pickup availability
Other Customers Viewed
This top-tier splined hub with a flange is crafted for a 42mm shaft with 8 splines, using durable C45 steel. It meets ISO DIN 14 standards, ensuring smooth interchangeability. Flanged splined hubs are crucial for accurately transmitting torque in a wide array of applications. Designed for a 42mm diameter shaft with 8 splines, this hub is straightforward to install and ensures dependable, long-lasting performance. We also offer splined clamp collars with four pre-drilled holes to complement this hub. For more information or to get a quote on our premium splined hub with flange for a 42mm shaft with 8 splines, please contact our customer service team, who will be happy to assist you!
42mm With 8 Splines Hub With Flange Dimensions
- Made for Shaft Diameter: 42mm
- Profile Description: KN36x42
- Material: C45
- Part #: 64851200
- Dimension (A): 90mm
- Dimension (B): 70mm
- Dimension (B1): 9.0mm
- Dimension (C): 52mm
- Dimension (F): 52mm
- Dimension (d): 36mm
- Dimension (E): 16mm
- Dimension (h): 4mm
- Dimension (L): 80mm
- Weight: 0.94 KG
Feature
- Precision Made from C45 Steel
- Made for 42mm Splined Shafting
- Pre-Drilled Holes to Accommodate Through-Bolts
- Conforms to DIN ISO 14 Standard
- Made for Shaft Diameter: 42mm
- Profile Description: KN36x42
- Material: C45
- Part #: 64851200
- Dimension (A): 90mm
- Dimension (B): 70mm
- Dimension (B1): 9.0mm
- Dimension (C): 52mm
- Dimension (F): 52mm
- Dimension (d): 36mm
- Dimension (E): 16mm
- Dimension (h): 4mm
- Dimension (L): 80mm
- Weight: 0.94 KG
