Power Transmission > Shafting > Precision Metric Spline Shaft ISO DIN 14 Standards

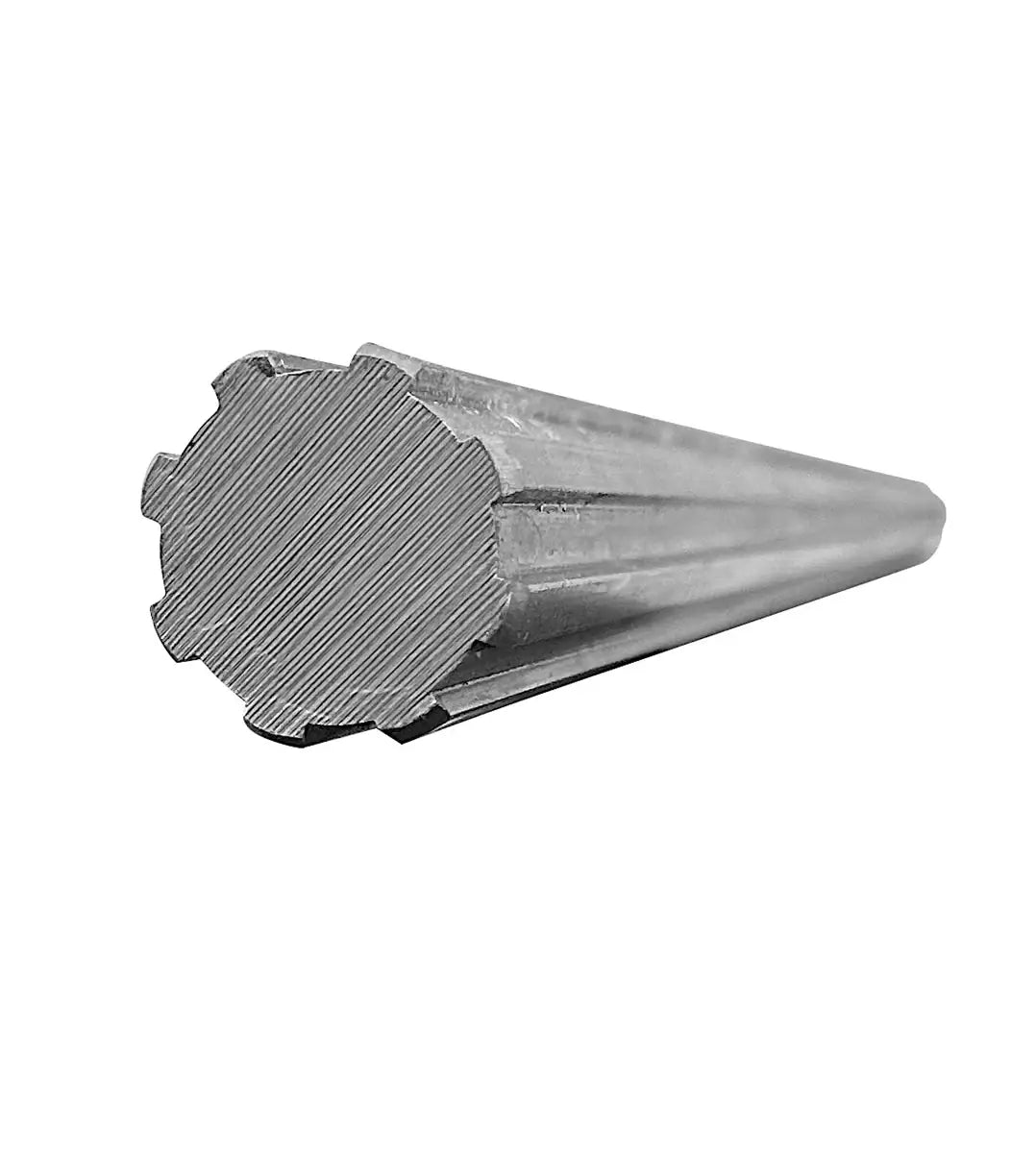

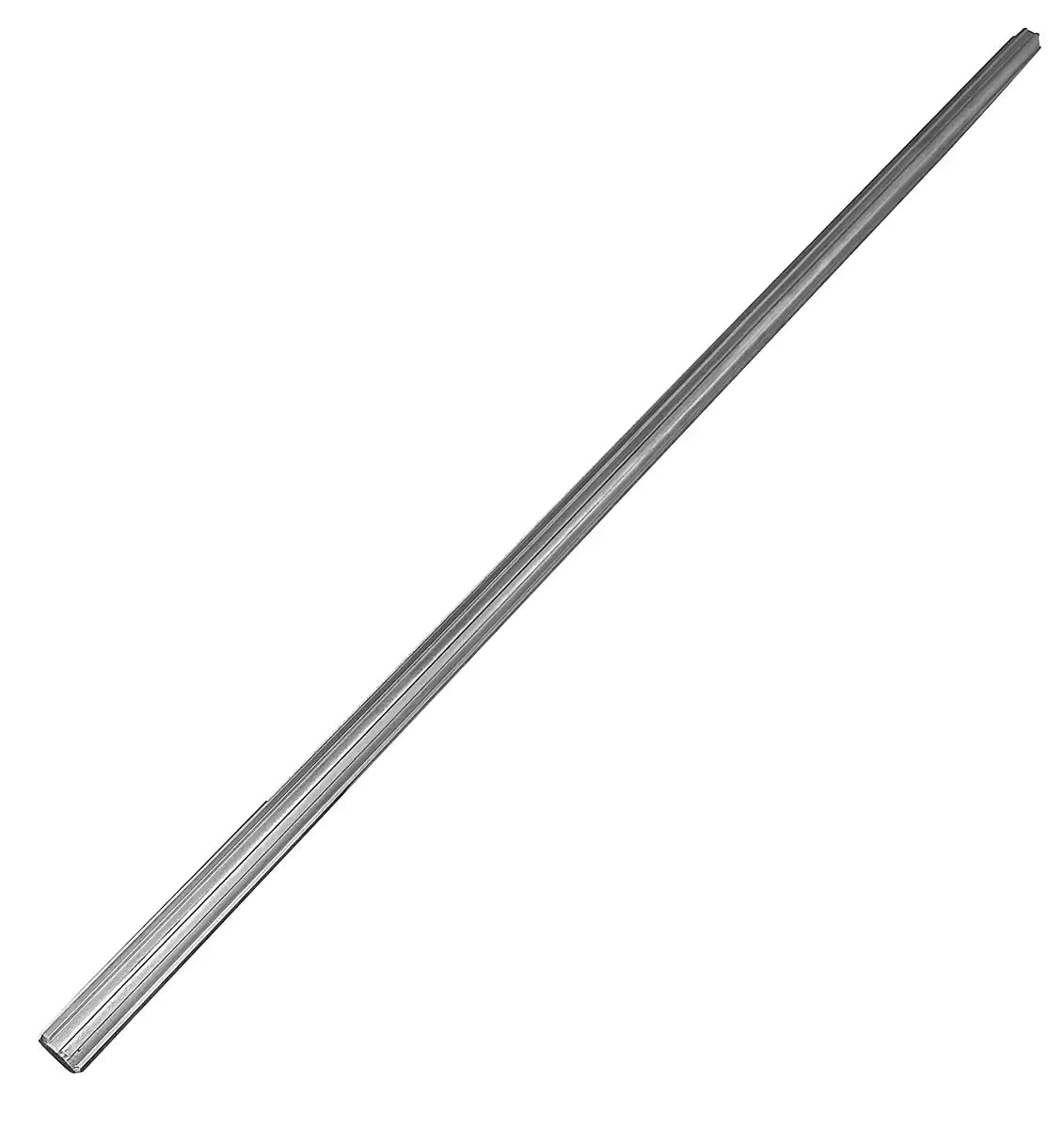

14mm Spline Shaft 6-Splines C45 Material - 1000mm
Note:
Custom Cut to Length Chain Also Available
SKU: 64840200-SHAFT
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
14mm Spline Shaft 6-Splines C45 Material - 1000mm Features
14mm Spline Shaft 6-Splines C45 Material - 1000mm Specifications
Our premium 14mm spline shaft with 6 splines is precision manufactured from top-grade C45 steel and is pre-cut to 1000mm long! This 14mm spline shaft is dimensionally made per DIN ISO 14 Standards. It is designed for applications where precise torque transmission and alignment are essential, such as in drive shafts, agricultural machinery, and industrial equipment. Our 14mm spline shaft with 6 splines is designed to transmit torque with a high degree of accuracy and efficiency. We also supply various accompanying parts, such as spline hubs, collars, and clamps for 14mm spline shafting. For additional information or a quote on our precision C45 steel 14mm spline shaft with 6 splines in a 1000mm length, contact our customer service team, and we will gladly assist you!

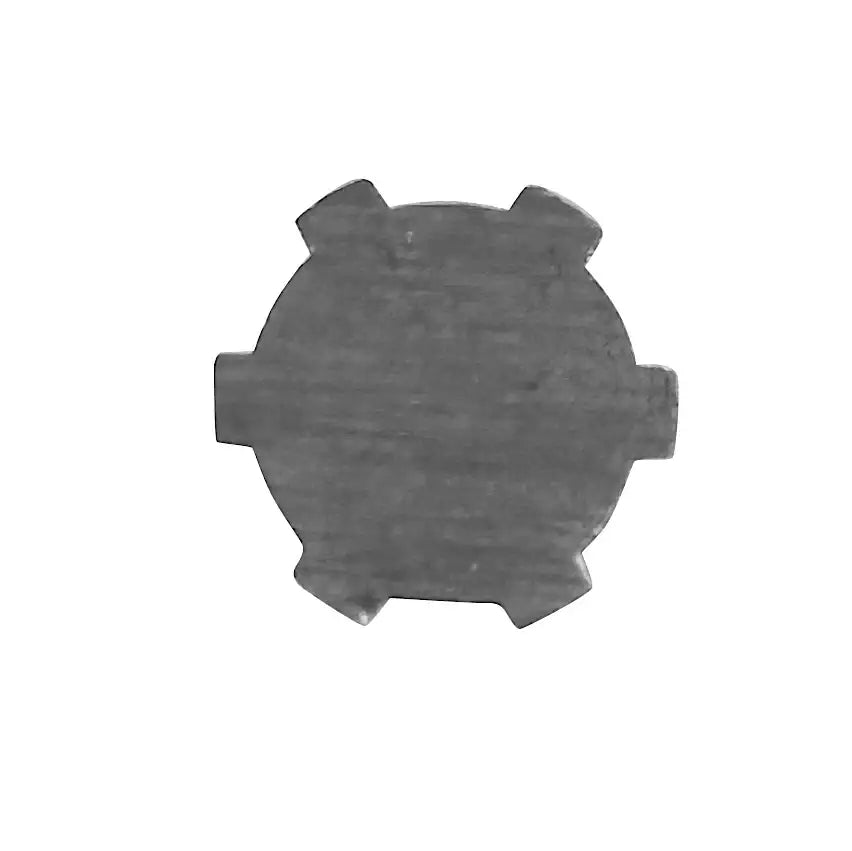

14mm Spline Shaft With 6-Splines Dimensions
- Shaft Diameter (D): 14mm
- Amount of Splines: 6
- Dimension (d): 11mm
- Dimension (b): 3mm
- Length: 1000mm
- Material: C45
- Weight: 0.949 Kg/ Meter
- Length Tolerance: 0.8mm/ Meter
- Maximum Torsion: 0.5mm/ Meter
- Shaft Diameter (D): 14mm
- Amount of Splines: 6
- Dimension (d): 11mm
- Dimension (b): 3mm
- Length: 1000mm
- Material: C45
- Weight: 0.949 Kg/ Meter
- Length Tolerance: 0.8mm/ Meter
- Maximum Torsion: 0.5mm/ Meter
