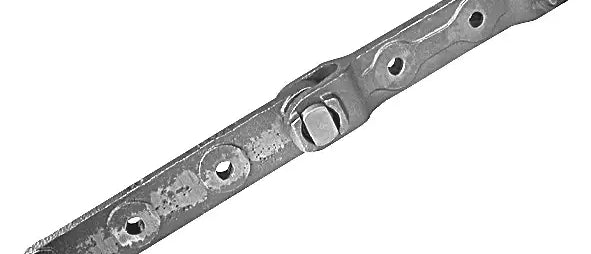

5378 Chain (Bar Type)
Note:
Custom Cut to Length Chain Also Available
SKU: 5378-CHAIN
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
5378 Chain (Bar Type) Features
5378 Chain (Bar Type) Specifications
This 5378 chain is considered a wash box chain and features an ultimate strength of 105,800 LBS. Wash box chain is primarily used in the mining industry and coal preparation. Due to the highly abrasive application this chain is manufactured to be extremely resistant to the corrosion caused by the sulfur exposer and wet coal washers, it uses high quality alloy steel and heat treated components to ensure strength as well as durability. For more information on 5378 wash box chain or to get a quote please contact us and we will be happy to assist you.
Dimensions:
Phone: (407) 347-3519
Email: sales@usarollerchain.com
Dimensions:
- Chain Size: 5378
- Pitch (A): 12.000"
- Bar Width (B): 3.000"
- Bar Thickness (C): 1.000"
- Pin Diameter (D): 1.250"
- Pin End to Center Line (E): 1.000"
- Pin End to Center Line (F): 1.380"
- Dimension (G): 4.000"
- Dimension (H): 4.000"
- Dimension (J): 0.750"
- Recommended Working Load: 17,600 LBS
- Average Ultimate Strength: 105,800 LBS
- Chain Type: A
- Chain Weight: 12.4 LBS/ FT
Email:
- Chain Size: 5378
- Pitch (A): 12.000"
- Bar Width (B): 3.000"
- Bar Thickness (C): 1.000"
- Pin Diameter (D): 1.250"
- Pin End to Center Line (E): 1.000"
- Pin End to Center Line (F): 1.380"
- Dimension (G): 4.000"
- Dimension (H): 4.000"
- Dimension (J): 0.750"
- Recommended Working Load: 17,600 LBS
- Average Ultimate Strength: 105,800 LBS
- Chain Type: A
- Chain Weight: 12.4 LBS/ FT
