K-12000 Wash Box Chain Attachment

By Application > Wash Box Chain

K-12000 Wash Box Chain Attachment

Note: Custom Cut to Length Chain Also Available
SKU: K-12000-ATTACHMENT
Item is in stockOnly 0 left in stockItem is out of stock Item is unavailable

Login to Request a Quote

<p>Don’t see what you need?</p>

Don’t see what you need?

Call us

Buy it With:

 [{"variant_id":"51715223126383" , "metafield_value":""}]
K-12000 Wash Box Chain Attachment Features
K-12000 Wash Box Chain Attachment Specifications
K-12000 attachments for wash box bar type chains are manufactured with the same high-strength, heavy-duty, and anti corrosive properties as the chain. K-12000 attachments can be assembled onto the wash box chain in almost any configuration needed. To get a quote on wash box chain with K-12000 attachments please contact us and we will be happy to assist you.

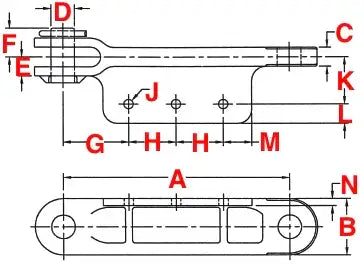

Dimensions:
K-12000 Wash Box Chain Attachment
  • Attachment Size: K
  • Pitch: 12.000"
  • Weight Per Link: 13.1 LBS
  • Dimension (B): 2.50"
  • Dimension (C): 0.94"
  • Dimension (D): 1.00"
  • Dimension (E): 1.00"
  • Dimension (F): 1.31"
  • Dimension (G): 3.50"
  • Dimension (H): 2.50"
  • Dimension (J): 0.50"
  • Dimension (K): 2.50"
  • Dimension (L): 1.031"
  • Dimension (M): 1.50"
  • Dimension (N): 0.375"

Phone: (407) 347-3519
Email: sales@usarollerchain.com
  • Attachment Size: K
  • Pitch: 12.000"
  • Weight Per Link: 13.1 LBS
  • Dimension (B): 2.50"
  • Dimension (C): 0.94"
  • Dimension (D): 1.00"
  • Dimension (E): 1.00"
  • Dimension (F): 1.31"
  • Dimension (G): 3.50"
  • Dimension (H): 2.50"
  • Dimension (J): 0.50"
  • Dimension (K): 2.50"
  • Dimension (L): 1.031"
  • Dimension (M): 1.50"
  • Dimension (N): 0.375"
