50BS56 Sprocket With 1-7/16" Finished Bore

Power Transmission > Sprockets > Roller Chain Sprockets > Single Strand Roller Chain Sprockets > 50 Roller Chain Sprockets > #50 B-Hub Sprockets > 50B56 Sprockets

50BS56 Sprocket With 1-7/16" Finished Bore

Note: Custom Cut to Length Chain Also Available
$126.99
SKU: 50BS56-1-716-SPROCKET
Item is in stockOnly 0 left in stockItem is out of stock Item is unavailable
Quantity

Login to Request a Quote

<p>Don’t see what you need?</p>

Don’t see what you need?

Call us

Buy it With:

 [{"variant_id":"51714635465071" , "metafield_value":""}]
50BS56 Sprocket With 1-7/16" Finished Bore Features
50BS56 Sprocket With 1-7/16" Finished Bore Specifications

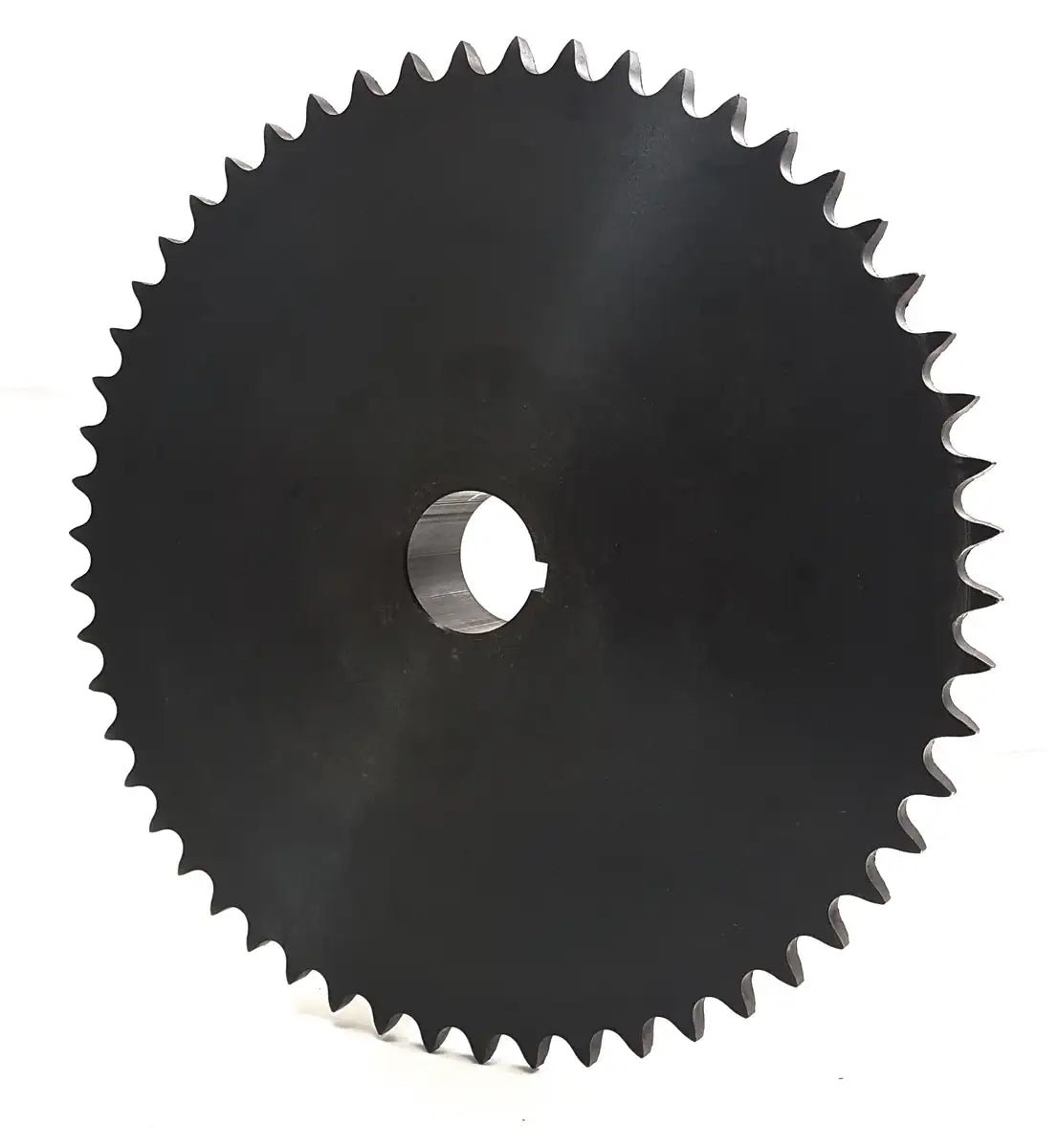

This 50BS56 sprocket features a 1-7/16" finished bore including a key-way and two setscrews. It is a durable, high quality, and precision sprocket that fully meets all ANSI Standards which insures proper contact between the #50 roller chain and sprocket thus preventing premature wear or breakage. This sprocket is also black oxide coated which increases resistance to the environment and will prevent early rust build up. We also offer stock bore sprockets, custom bore and made to order sprockets, and a full line of ANSI #50 roller chain. Fore more information, large quantities, or to get a custom sprocket please contact us and we will be happy to assist you.

50BS56 1 7/16" finished Bore Sprocket Dimensions


50BS56 Sprocket With 1-7/16" Finished Bore
  • Sprocket Size: 50BS56
  • Tooth Count: 56
  • Outside Diameter: 11.500"
  • Hub Type: B
  • Bore Size: 1-7/16"
  • Keyway Size: 3/8" X 3/16"
  • Hub Diameter: 3-3/4"
  • Length Thru Bore: 1-1/4"
  • Sprocket Weight: 11.50 LBS
  • Common Interchanges: 50BS56H, H50BS56, 50BS56-FB

Phone: (407) 347-3519
Email: sales@usarollerchain.com
  • Sprocket Size: 50BS56
  • Tooth Count: 56
  • Outside Diameter: 11.500"
  • Hub Type: B
  • Bore Size: 1-7/16"
  • Keyway Size: 3/8" X 3/16"
  • Hub Diameter: 3-3/4"
  • Length Thru Bore: 1-1/4"
  • Sprocket Weight: 11.50 LBS
  • Common Interchanges: 50BS56H, H50BS56, 50BS56-FB
