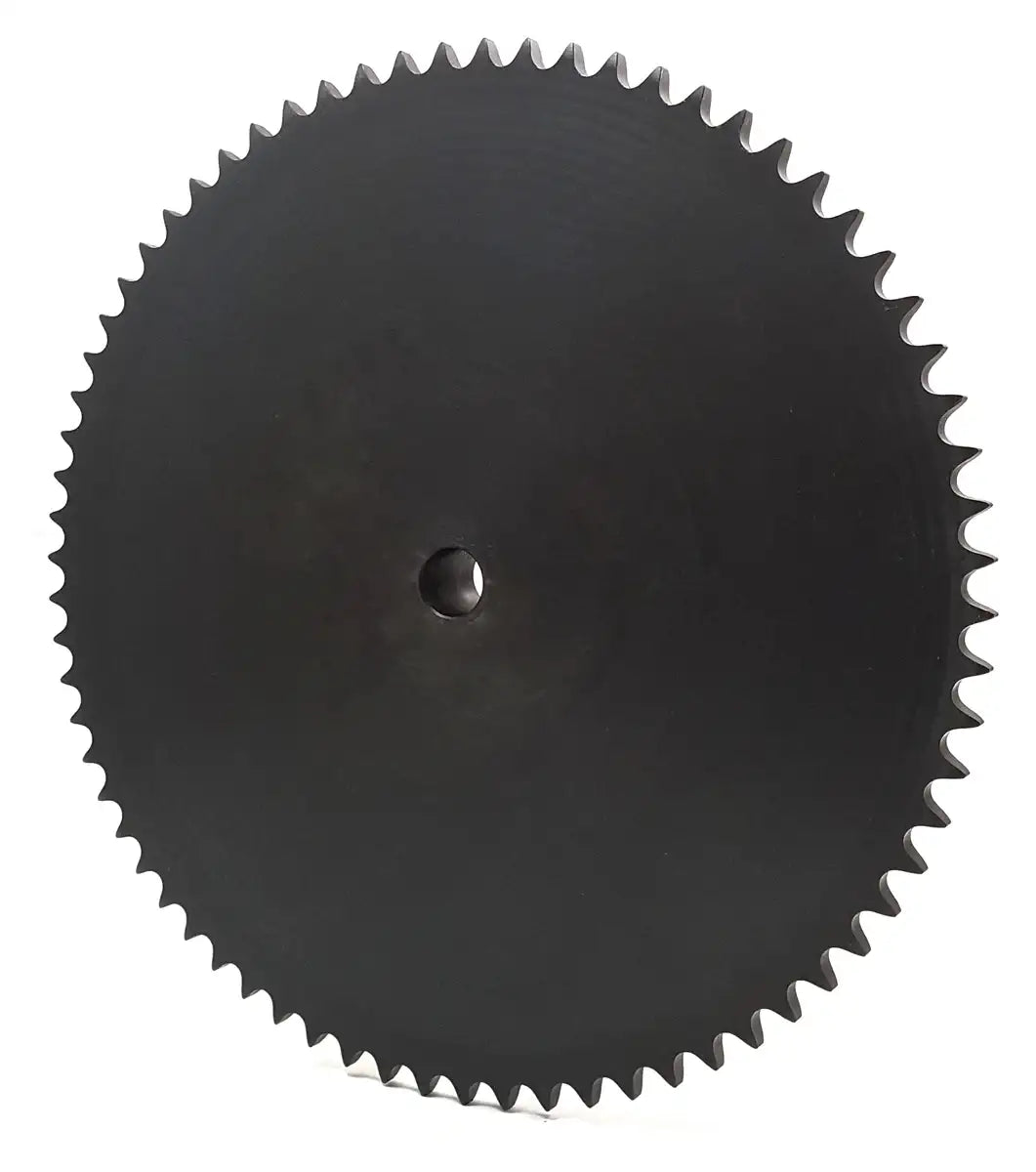

50B80 Sprocket With Stock Bore

Name: 50B80 Sprocket With Stock Bore
Brand: USA ROLLER CHAIN
SKU: 50B80-SPROCKET
Price: 241.99 USD
Availability: InStock

Note: Contact Us For Large Quantity Request

$241.99

SKU: 50B80-SPROCKET

In stockOnly 0 left in stockBackordered Out of stock Item is unavailable

Carbon Steel Chains

Features	General Duty Plus	Economy Plus
Solid Bushings	Split Bushings in most cases	Split Bushings
Solid Rollers
Through-Hardened Pins	Case-Hardened Pins	Heat-Treated Pins
Case-Hardened Rollers		Heat-Treated in Some Chains
Case-Hardened Bushings		Heat-Treated in Some Chains
Wide Contour Plates	Standard Contour Plates	Standard Contour Plates
Superior Pin to Plate Contact
High-Hold Riveting	Standard Dual-Stake Rivets	Standard Dual-Stake Rivets
Factory Pre-Loading		Not Standard on Economy Chains
Specific Heat-Treatment on Every Component		Some Components Might be Heat-Treated
Premium Alloy & Carbon Materials	High-Quality Carbon Materials	Standard-Quality Carbon Materials
Shot-Peened Components	Non Shot-Peened Components	Non Shot-Peened Components
High-Precision Components	Standard Precision Components	Low Precision Components
Conforms to ANSI B29.1 or ISO/DIN Standards

Request a Quote

Don’t see what you need? In a rush?

Call us!

Buy it With:

50B80 Sprocket With Stock Bore Description/Features

50B80 Sprocket With Stock Bore Specifications

This 50B80 sprocket is a durable, premium quality, and precision 80-tooth sprocket that is manufactured out of high-quality steel. This sprocket is manufactured for optimum performance, durability, and to strict quality control standards. Something else that is notable about this sprocket is that it fully meets all ANSI Standards, which insures proper contact between the #50 roller chain and sprocket, preventing premature wear or breakage. It is also black oxide coated which increases the sprockets overall resistance to the environment along with preventing early rust build up. 50B80 sprockets with a stock bore comes with the standard 1" inside diameter hole with no keyway or setscrews and can be easily machine bored to custom sizes. We also offer sprockets with finished bore configurations right off the shelf from stock, and if you are needing a custom bore sprocket we the capabilities on providing those to within a fast lead-time and at really great prices. For more information, sprocket re-boring, MTO sprockets, or large quantities please contact us and we will be happy to assist you.

50B80 Sprocket Dimensions

Sprocket Size: 50B80
Tooth Count: 80
Outside Diameter: 16.280"
Hub Type: B
Bore Size: 1"
Recommended Maximum: 2-3/4"
Hub Diameter: 4-1/4"
Length Thru Bore: 1-3/4"
Sprocket Weight: 24.74 LBS
Common Interchanges: 50B80H, H50B80, 50B80-SB
