50B46 Sprocket - ANSI 50B46 Sprocket

Name: 50B46 Sprocket - ANSI 50B46 Sprocket
Brand: USA ROLLER CHAIN
SKU: 50B46-SPROCKET
Price: 105.99 USD
Availability: InStock

Note: Contact Us For Large Quantity Request

$105.99

SKU: 50B46-SPROCKET

In stockOnly 0 left in stockBackordered Out of stock Item is unavailable

Request a Quote

Don’t see what you need? In a rush?

Call us!

Buy it With:

50B46 Sprocket - ANSI 50B46 Sprocket Description/Features

50B46 Sprocket - ANSI 50B46 Sprocket Specifications

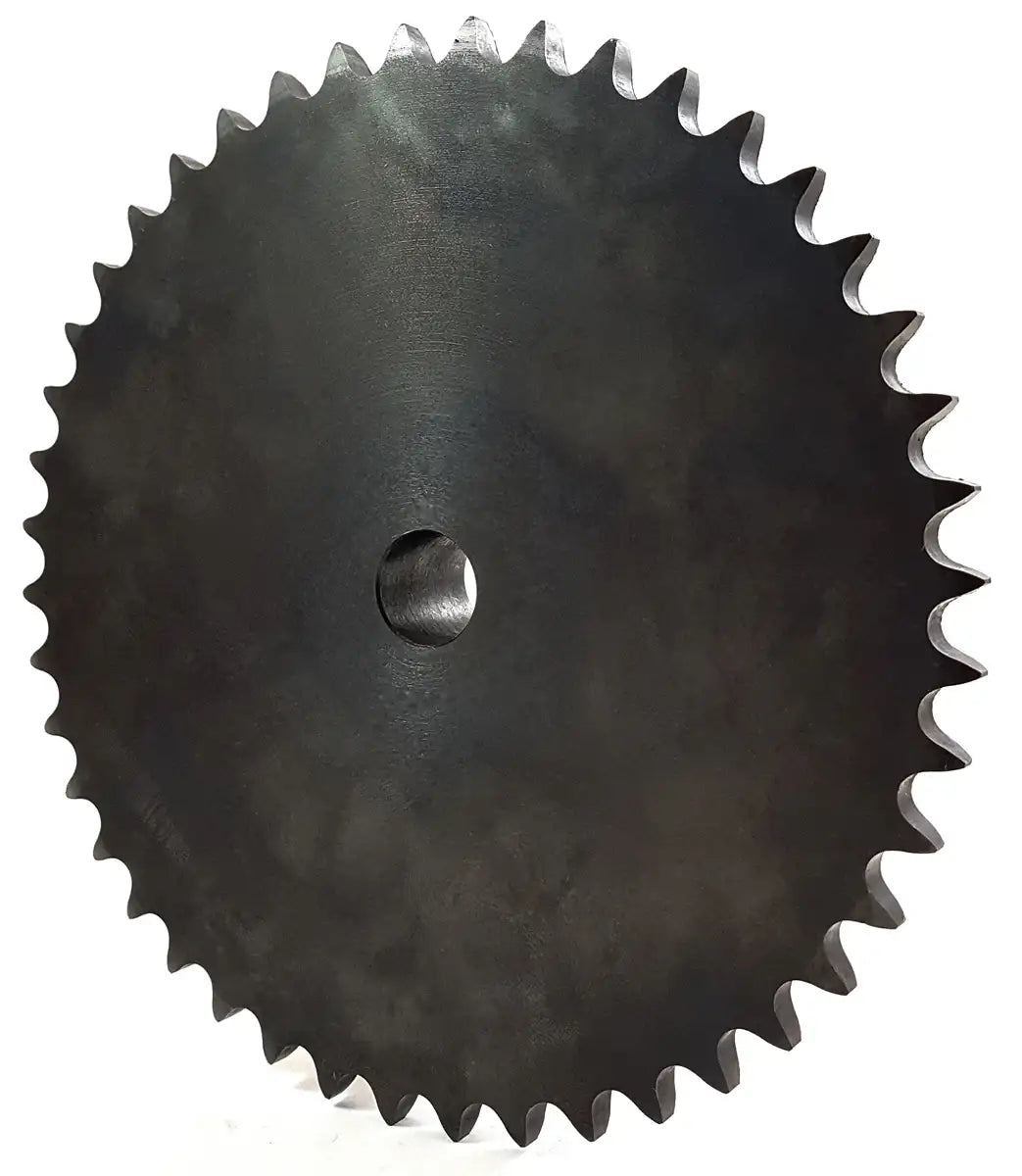

This 50B46 sprocket is a durable, premium quality, and precision 46-tooth sprocket that is manufactured out of high-quality steel. This sprocket is manufactured for optimum performance, durability, and to strict quality control standards. Something else that is notable about this sprocket is that it fully meets all ANSI Standards, which insures proper contact between the #50 roller chain and sprocket, preventing premature wear or breakage. It is also black oxide coated which increases the sprockets overall resistance to the environment along with preventing early rust build up. 50B46 sprockets with a stock bore comes with the standard 1" inside diameter hole with no keyway or setscrews and can be easily machine bored to custom sizes. We also offer sprockets with finished bore configurations right off the shelf from stock, and if you are needing a custom bore sprocket we the capabilities on providing those to within a fast lead-time and at really great prices. For more information, sprocket re-boring, MTO sprockets, or large quantities please contact us and we will be happy to assist you.

50B46 Sprocket Dimensions

Sprocket Size: 50B46
Tooth Count: 46
Outside Diameter: 9.510"
Hub Type: B
Bore Size: 1"
Recommended Maximum: 2-1/2"
Hub Diameter: 3-3/4"
Length Thru Bore: 1-1/4"
Sprocket Weight: 8.22 LBS
Common Interchanges: 50B46H, H50B46, 50B46-SB
