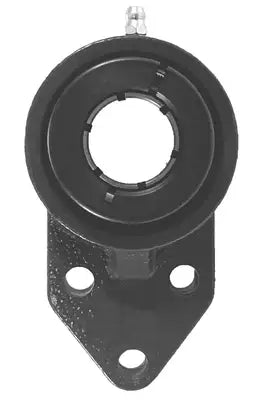

UEFBS205-16 Bearing | 1" 3-Bolt Flange Bearing

UEFBS205-16 bearing is a 1" bore three-bolt normal-duty flange bracket bearing that utilizes a Tru-Loc device to secure to a 1" shaft. UEFBS205-16 flange bearings are designed with an inch-based housing, and for circumstances where the bearing is needed in a limited space application and is to be mounted on one side, the three mounting holes provide excellent stability and control for the mounted bearing. Our superior UEFBS205-16 bearing with a 1" bore is equipped with a premium C3 precision insert bearing housed within a high-strength solid-base cast-iron housing. Additionally, our UEFBS205-16 bearing has added features that improve the overall life and performance of the unit, such as; a steel retainer, wide inner-ring, anti-rotation device, and relubricating capabilities. UEFBS205-16 bearings are commonly used in applications such as; construction equipment, agricultural equipment, forestry, aggregate, conveyor systems, and many more. Our UEFBS205-16 bearing is dimensionally made to industry standards, meaning it interchanges with just about any brand out there. Contact our customer support team for further information or to get a quote on our UEFBS205-16 bearings, and we will be happy to assist you!

UEFBS205-16 Bearing Dimensions

• Part #: UEFBS 205-16
• Shaft Diameter (d): 1"
• Dimension (A): 4.76"
• Dimension (H): 1.81"
• Dimension (E): 1.626"
• Dimension (J): 1.122"
• Dimension (I): 0.66"
• Dimension (G): 0.37"
• Dimension (L): 1.12"
• Dimension (S): 0.39"
• Dimension (B): 2.76"
• Dimension (F): 2.50"
• Dimension (Z): 1.50"
• Dimension (Bi): 1.3937"
• Dimension (N): 0.5630"
• Dimension (M): 0.7795"
• Bolt Used: 5/16
• Dynamic Load Rating (LBS): 3,155
• Static Load Rating (LBS): 1,810
• Bearing Insert: UE 205-16
• Housing Number: FBS 205
• Weight (LBS): 1.8
