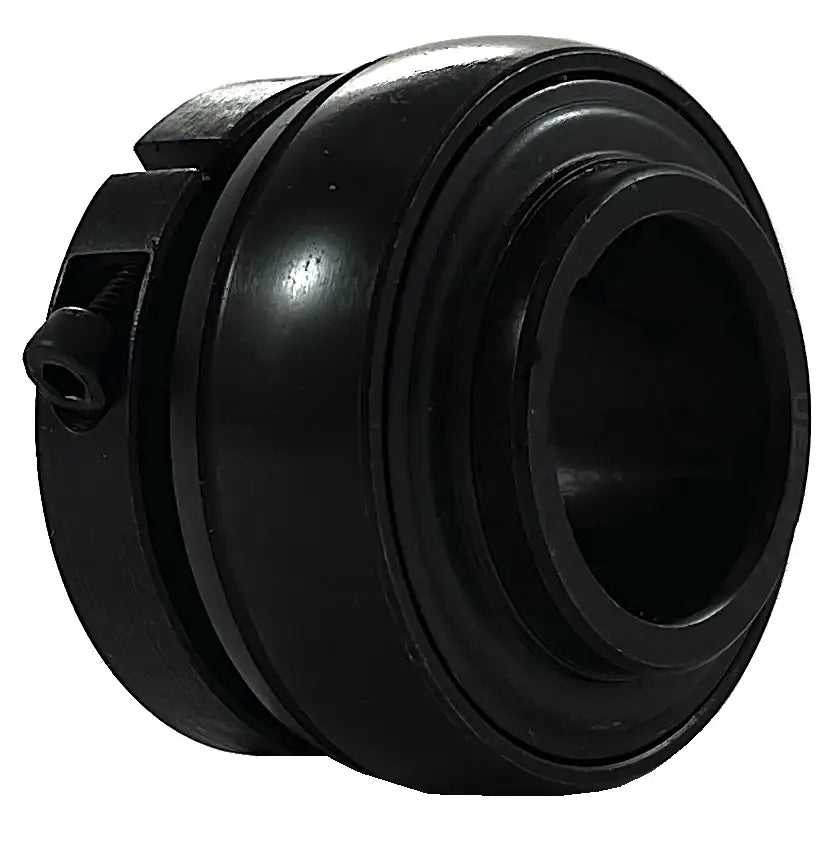

UE205-16 bearing is a normal-duty ball bearing insert made to C3 precision standards and utilizes a Tru-Loc device for securing a 1" shaft. Our UE205-16 insert bearing has several features: a wide inner-ring, steel retainer, anti-rotation device, and an inner ring and outer ring made from bearing grade steel to produce a high-quality and long-lasting bearing. Our UE205-16 bearing is made to industry standards dimensionally for direct interchangeability with just about any brand. For additional information or to receive a quote on our UE205-16 bearings, contact our customer service and, we will be happy to assist you!

UE205-16 Bearing Dimensions

• Part #: UE 205-16
• Shaft Diameter (d): 1"
• Setscrew Used: 1/4-28
• Dimension (D): 2.0472"
• Dimension (Bi): 1.3937"
• Dimension (Be): 0.6693"
• Dimension (N): 0.5630"
• Dimension (M): 0.7795"
• Dimension (W): 1.929"
• Dimension (K): 0.374"
• Dimension (T): 0.1575"
• Dynamic Load Rating (LBS): 3,155
• Static Load Rating (LBS): 1,810
• Weight (LBS): 0.5
