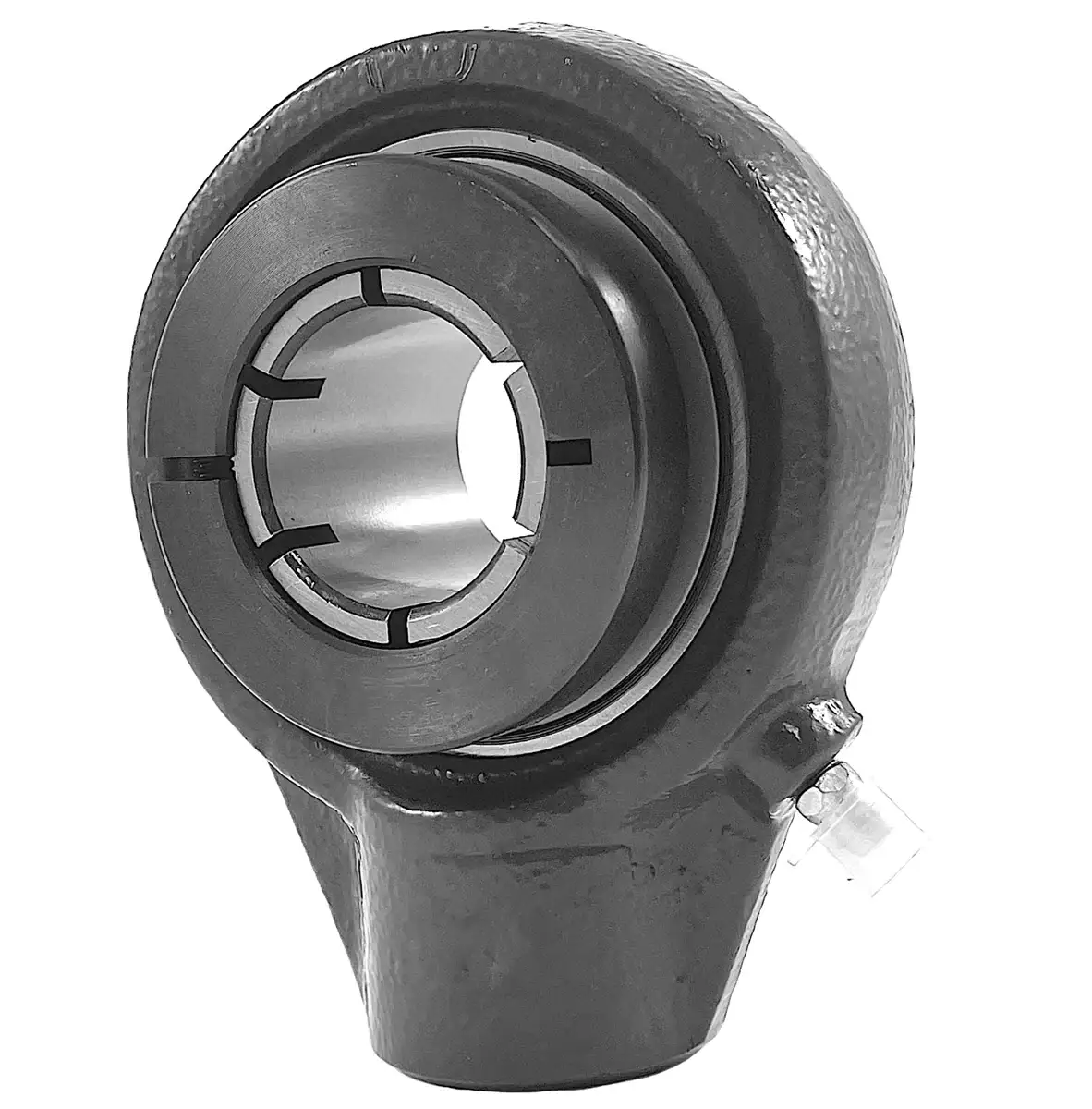

UEHA207 Bearing | 35mm Hanger Bearing

UEHA207 bearing is a 35mm bore normal-duty hanger bearing that utilizes a Tru-Loc device to secure to a 35mm shaft. UEHA207 hanger bearings are designed for applications such as screw conveyors and suspended shafts. Our superior UEHA207 bearing with a 35mm bore is equipped with a premium C3 precision insert bearing housed within a high-strength solid cast-iron housing. Additionally, our UEHA207 bearing has added features that improve the overall life and performance of the unit, such as; a steel retainer, wide inner-ring, anti-rotation device, and relubricating capabilities. Our UEHA207 bearing is dimensionally made to industry standards, meaning it interchanges with just about any brand out there. Contact our customer support team for further information or to get a quote on our UEHA207 bearings, and we will be happy to assist you!

UEHA207 Hanger Bearing Dimensions

• Part #: UEHA 207
• Shaft Diameter (d): 35mm
• Dimension (A): 92.0mm
• Dimension (W): 116.0mm
• Dimension (C): 0mm
• Dimension (H): 70.0mm
• Dimension (L): 40.0mm
• Dimension (D): 19.0mm
• Dimension (K): PF 3/4
• Dimension (Bi): 43.9mm
• Dimension (N): 17.5mm
• Dimension (M): 25.4mm
• Dynamic Load Rating (kN): 25.69
• Static Load Rating (kN): 15.56
• Bearing Insert: UE 207
• Housing Number: HA 207
• Weight (kg): 2.6
