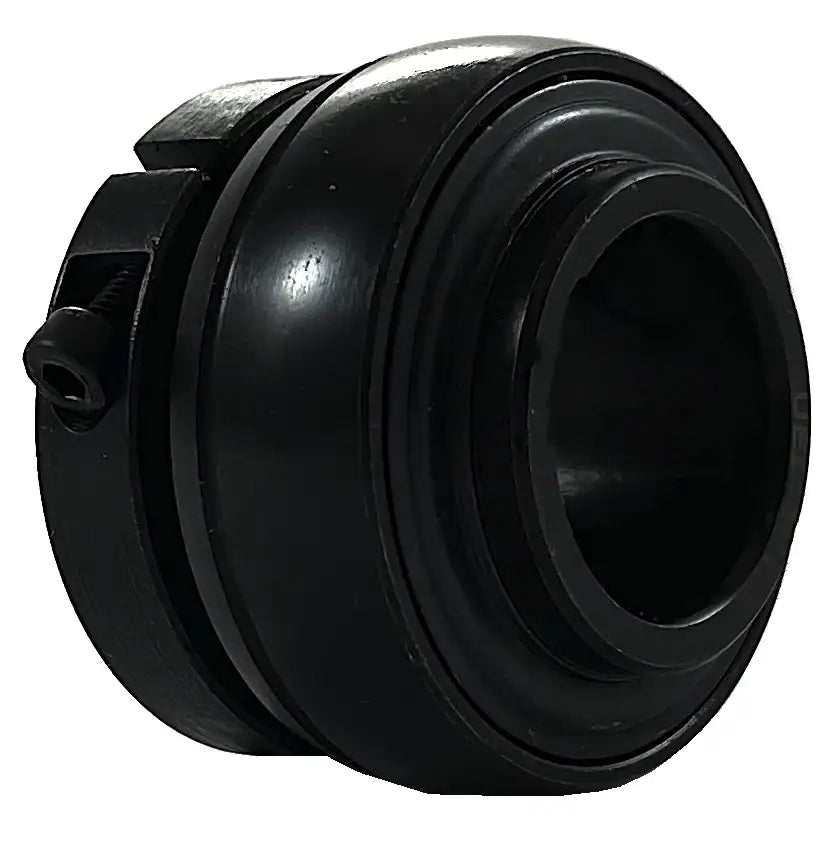

UE207 Bearing | 35mm Insert Bearing
Note:
Custom Cut to Length Chain Also Available
SKU: 2278-UE-207-BEARING
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
UE207 Bearing | 35mm Insert Bearing Features
UE207 Bearing | 35mm Insert Bearing Specifications
UE207 bearing is a normal-duty ball bearing insert made to C3 precision standards and utilizes a Tru-Loc device for securing a 35mm shaft. Our UE207 insert bearing has several features: a wide inner-ring, steel retainer, anti-rotation device, and an inner ring and outer ring made from bearing grade steel to produce a high-quality and long-lasting bearing. Our UE207 bearing is made to industry standards dimensionally for direct interchangeability with just about any brand. For additional information or to receive a quote on our UE207 bearings, contact our customer service and, we will be happy to assist you!
UE207 Bearing Dimensions
- Part #: UE 207
- Shaft Diameter (d): 35mm
- Setscrew Used: M5 x 0.8
- Dimension (D): 72.0mm
- Dimension (Bi): 43.9mm
- Dimension (Be): 20.0mm
- Dimension (N): 17.5mm
- Dimension (M): 25.4mm
- Dimension (W): 64.0mm
- Dimension (K): 11.0mm
- Dimension (T): 5.8mm
- Dynamic Load Rating (kN): 25.69
- Static Load Rating (kN): 15.56
- Weight (kN): 0.5
- Part #: UE 207
- Shaft Diameter (d): 35mm
- Setscrew Used: M5 x 0.8
- Dimension (D): 72.0mm
- Dimension (Bi): 43.9mm
- Dimension (Be): 20.0mm
- Dimension (N): 17.5mm
- Dimension (M): 25.4mm
- Dimension (W): 64.0mm
- Dimension (K): 11.0mm
- Dimension (T): 5.8mm
- Dynamic Load Rating (kN): 25.69
- Static Load Rating (kN): 15.56
- Weight (kN): 0.5
