FV140A100 Chain | DIN Standard FV140A100 Metric Chain
Note:
Custom Cut to Length Chain Also Available
SKU: 2224-FV140A100-CHAIN
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote

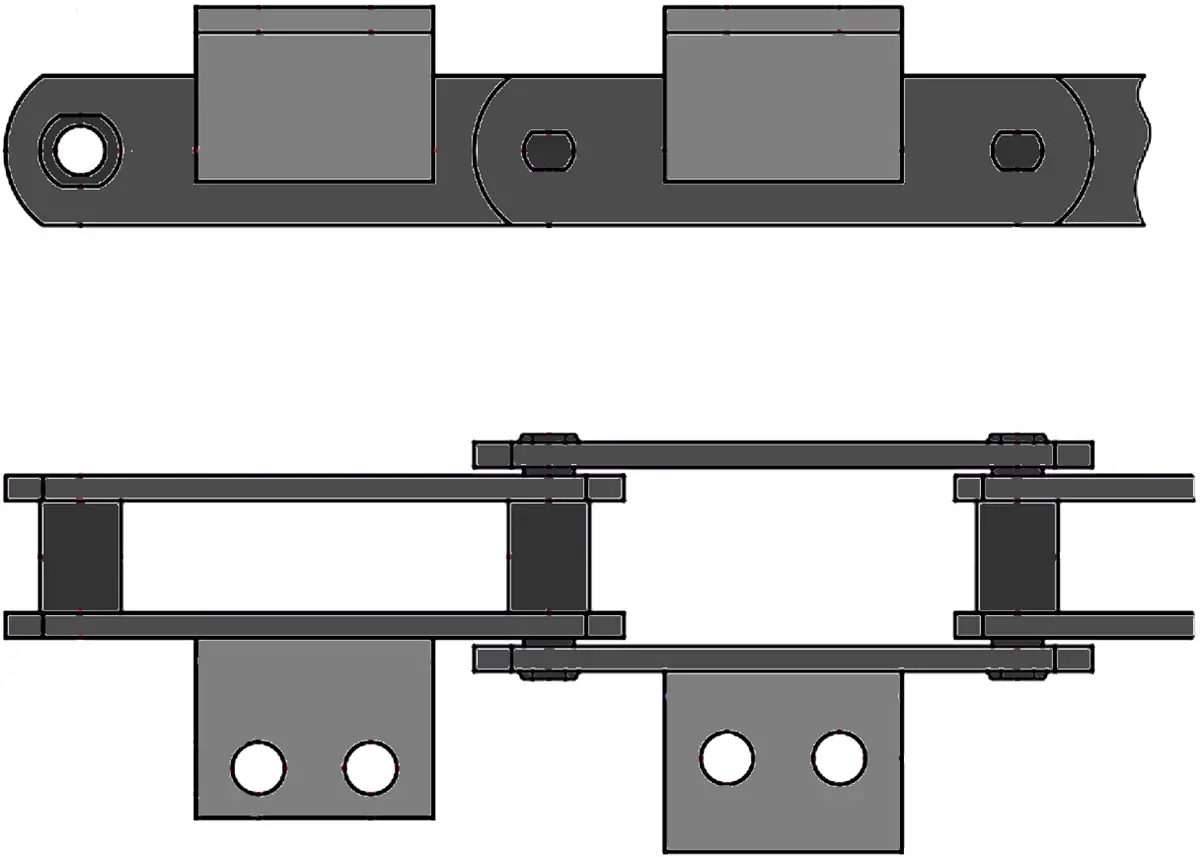

Buy it With:
FV140A100 Chain | DIN Standard FV140A100 Metric Chain Features
FV140A100 Chain | DIN Standard FV140A100 Metric Chain Specifications
FV140A100 Chain is a metric conveyor series chain that is manufactured to a very specific German DIN Standard dimensionally and material wise. More specifically FV140A100 conveyor chain is a bushed type conveyor chain used in lumber mills, water treatment, aggregate, and as a base conveyor chain in many other applications. We also supply a full range of sprockets and attachments for FV140A100 chain. Please note it is important to utilize proper lubrication to increase the working life and performance of these chains, we also offer a heat-treated pin option for more demanding applications. For additional information or to get a quote please contact us and we will be happy to assist you.
FV140A100 Chain Dimensions
- Size: FV140A100
- Roller Style: A
- Pitch (P): 100mm
- Working Load: 145 kN
- Working Load With Heat Treated Pins: 180 kN
- Overall Width (F): 71.5mm
- Bushing Diameter (D5): 26mm
- Distance Between Sidebars (L): 35mm
- Sidebar Thickness (S): 6mm
- Sidebar Height (H): 45mm
- Pin Diameter (D6): 18mm
- Size: FV140A100
- Roller Style: A
- Pitch (P): 100mm
- Working Load: 145 kN
- Working Load With Heat Treated Pins: 180 kN
- Overall Width (F): 71.5mm
- Bushing Diameter (D5): 26mm
- Distance Between Sidebars (L): 35mm
- Sidebar Thickness (S): 6mm
- Sidebar Height (H): 45mm
- Pin Diameter (D6): 18mm
