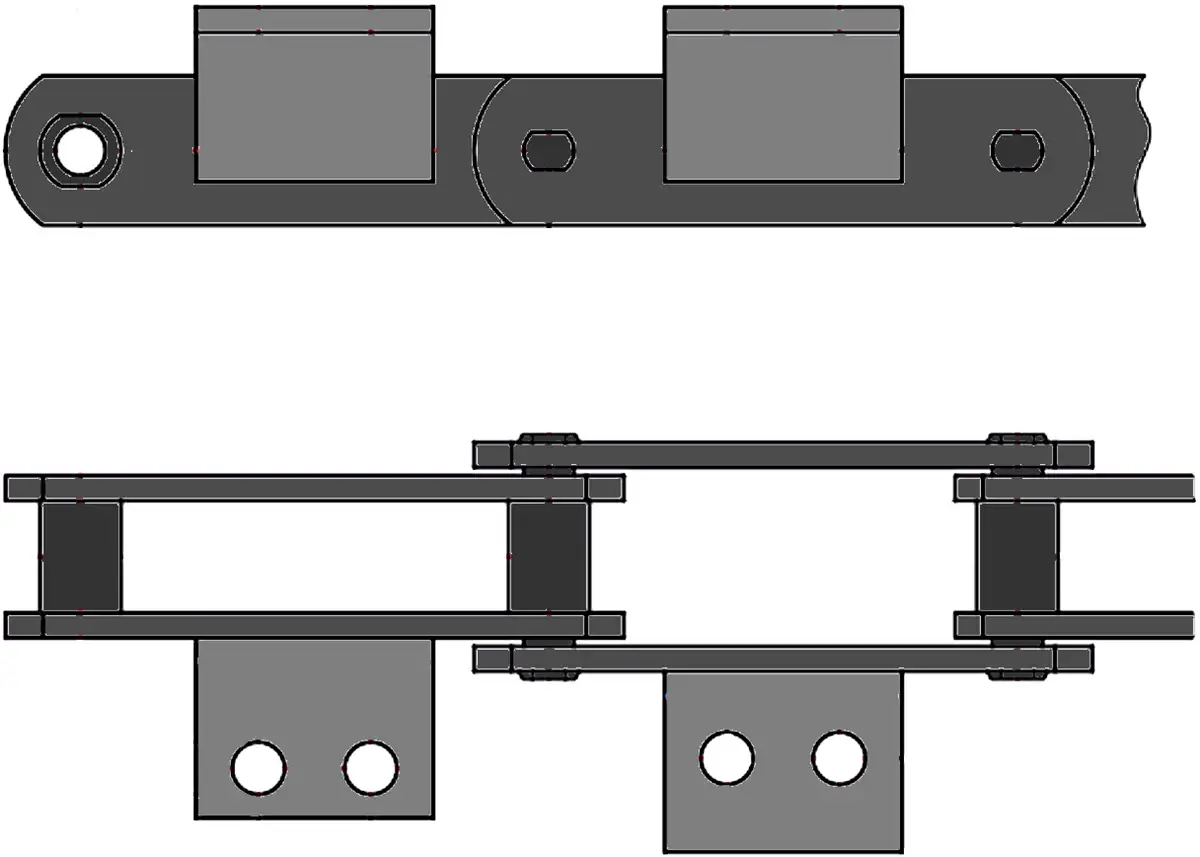

FV140-100 A2 Attachment
Note:
This Chain Typically Takes 12-14 Weeks to Manufacture But Expediting Options Available
SKU: FV140-100-A2-ATTACHMENT
In stockOnly 0 left in stockBackordered
Out of stock
Item is unavailable
Contact Us For Pricing & Availability
FV140-100 A2 Attachment Description/Features
FV140-100 A2 Attachment Specifications
FV140-100 A2 attachment is a two hole, one side FV series conveyor chain attachment. We supply FV chain with this attachment in any configuration/ spacing required. To get a quote or for more information on the FV140-100 A2 attachment contact our customer support team and we will be happy to assist you.
FV140-100 A2 Attachment Dimensions
- Attachment Size: FV140-100-A2
- Pitch (P): 100mm
- Dimension (A): 45mm
- Dimension (B): 50mm
- Bolt Hole (D): 11mm
- Angle (S): 50X6
- Dimension (E): 81mm
- Dimension (F): 30mm
- Dimension (C): 55mm
- Attachment Weight: 0.230kG
- Attachment Size: FV140-100-A2
- Pitch (P): 100mm
- Dimension (A): 45mm
- Dimension (B): 50mm
- Bolt Hole (D): 11mm
- Angle (S): 50X6
- Dimension (E): 81mm
- Dimension (F): 30mm
- Dimension (C): 55mm
- Attachment Weight: 0.230kG
