Power Transmission > Sprockets > Idler Sprockets > Needle Bearing Idler Sprockets
100NB11H Sprocket, Needle Bearing Idler Sprocket - 1-1/2" Bore
Note:
Custom Cut to Length Chain Also Available
SKU: 100NB11H-SPROCKET
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
100NB11H Sprocket, Needle Bearing Idler Sprocket - 1-1/2" Bore Features
100NB11H Sprocket, Needle Bearing Idler Sprocket - 1-1/2" Bore Specifications

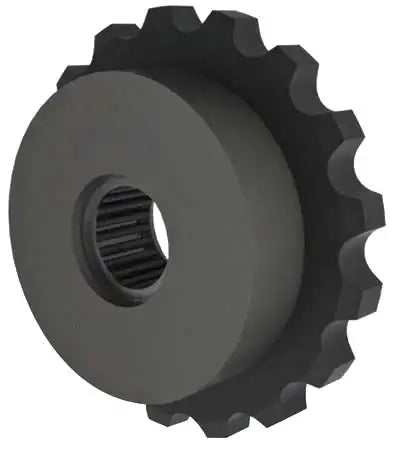

100NB11H sprocket is categorized as a needle bearing idler sprocket due to the needle bearing that is inserted into the sprocket. This 100NB11H idler sprocket features 11 hardened teeth, a high quality needle bearing with a 1-1/2" Bore, and fully meets all ANSI Standards. Additionally this 100NB11H idler sprocket was engineered to be extremely durable and high performance, along with being manufactured out of a high quality steel and components to create an idler sprocket with great performance and a long working life. To get a quote on 100NB11H idler sprockets or for more information please contact us and we will be happy to assist you.
100NB11H Idler Sprocket Dimensions
- Sprocket #: 100NB11H
- Number Of Teeth: 11
- Bearing Type: Needle Bearing
- Chain Size: #100
- Outside Diameter: 5.01"
- Bore Size: 1.50"
- Length Thru Bore: 1.88"
- Dimension (T): 0.692"
- Hub Diameter: 3.56"
- Weight: 3.60 LBS
- Sprocket #: 100NB11H
- Number Of Teeth: 11
- Bearing Type: Needle Bearing
- Chain Size: #100
- Outside Diameter: 5.01"
- Bore Size: 1.50"
- Length Thru Bore: 1.88"
- Dimension (T): 0.692"
- Hub Diameter: 3.56"
- Weight: 3.60 LBS
