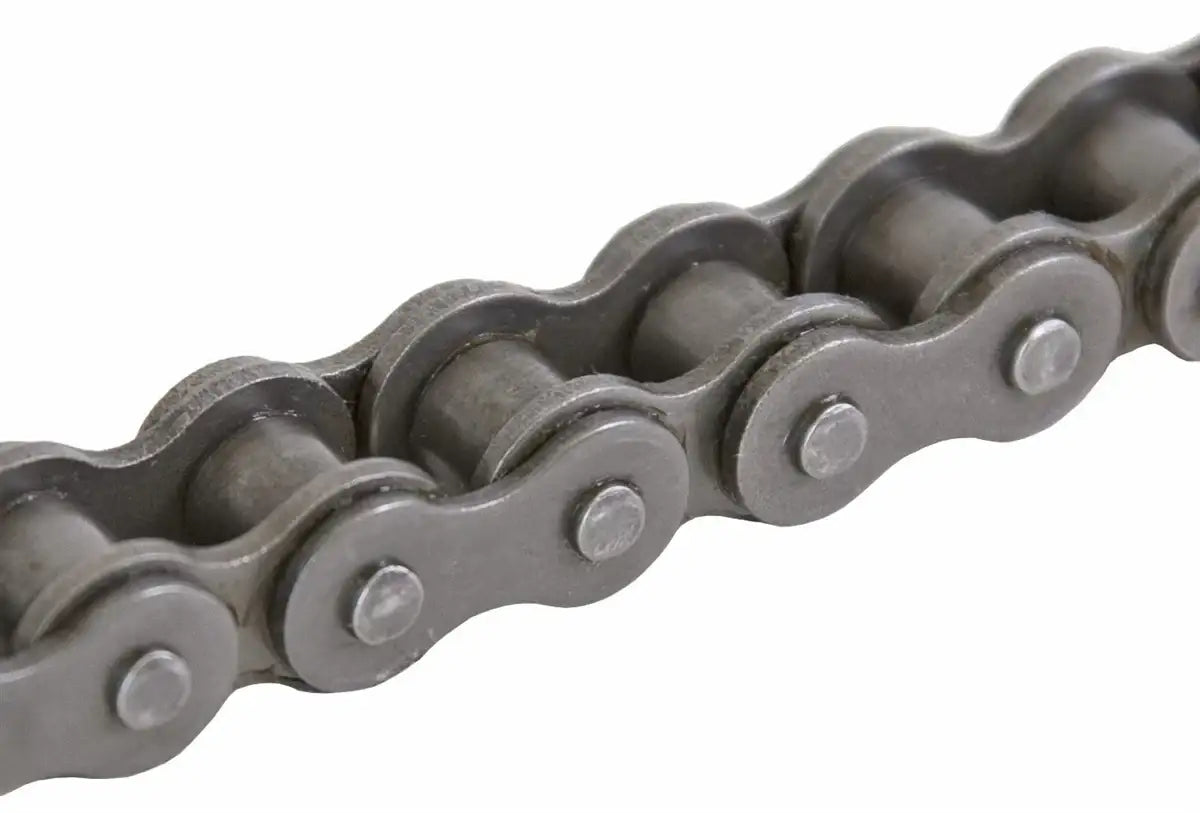

#100 Roller Chain - 10ft Box

ANSI #100 roller chain is utilized in drive and conveying applications around the globe and is the eighth largest size of standard roller chain with a 1.25" pitch (measurement from center of pin to the center of the next pin). More specifically our #100 roller chain conforms to ANSI B29.1 Standards, has a 24,500 LBS tensile strength, and an array of specially selected features to ensure performance and life-span. Besides the chain we also stock an array of roller chain accessories and 100 chain sprockets. For more inform or quotes please contact us!

100 Chain Features

• - Solid rollers for increased performance and load bearing.
• - Precision heat-treatment on all components = better durability.
• - Shot peened to increase fatigue strength and alleviate stress concentrations.

100 Roller Chain Dimensions

Pitch: 1.250"
Roller Diameter: 0.750"
Width Between Interpolates: 0.750"
Pin Diameter: 0.375"
Overall Width of Chain: 1.620"
Overall Width of Connecting Link: 1.850"
Plate Height: 1.180"
Plate Thickness: 0.156"
Minimum Ultimate Tensile Strength: 24,500 LBS
Weight Per Foot: 2.6 LBS

Upgraded #100 Roller Chains

At USA Roller Chain on-top of the "standard" roller chains we stock an array of upgraded chains. Upgrades on these chains range from solid bushings, to boron-steel through hardened pins. Below are the different quality levels on top of our base-quality roller chain. If you need help deciding the right fit for your application please contact our service team and we will be happy to assist you.

General Duty Plus 100 Roller Chain	Premier Series 100 Roller Chain
26,000 LBS Tensile Strength	26,620 LBS Tensile Strength
Factory Pre-Loaded	5,060 LBS Working Load
Better Heat-Treat	Factory Pre-Loaded
Higher Quality Carbon Steel	Best Heat-Treatment on All Parts
--	Extra-Hardened Pins
--	Best-Grade Carbon Steel
--	Solid Bushings
--	Premium Quality Lubricant
--	Highest Strength ANSI Chain

100 Roller Chain Options

Cottered #100 Roller Chain	Heavy Duty 100H Roller Chain	Super Heavy 100SH Roller Chain

Material Options:

• Nickel Plated
• Dacromet Coated
• 304-Stainless Steel
• 316-Stainless Steel

For additional assistance or to request a quote please contact our customer service team at sales@usarollerchain.com or call (407) 347-3519 and we will be happy to assist you.
