100 WSA-1 Attachment

Roller Chain > Standard Roller Chains > Roller Chain Attachments > #100 Roller Chain Attachments

#100 WSA-1 Attachment

Note: Custom Cut to Length Chain Also Available
SKU: 100-WSA-1-ATTACHMENT
Item is in stockOnly 0 left in stockItem is out of stock Item is unavailable

Login to Request a Quote

<p>Don’t see what you need?</p>

Don’t see what you need?

Call us

Buy it With:

 [{"variant_id":"51714093416815" , "metafield_value":""}]
#100 WSA-1 Attachment Features
#100 WSA-1 Attachment Specifications
#100 WSA-1 attachment is a one side, one hole wide contour straight attachment that fully meets ANSI specifications. We have a full line of premium attachments as well as #100 roller chain in stock. This attachment is manufactured using heat-treated components to increase strength, durability, and performance. Besides attachments and chain, we also have #100 sprockets, motors, reducers, bearings, sensors, and more! To get a quote on #100 WSA-1 attachments please contact us and we will be happy to assist you.

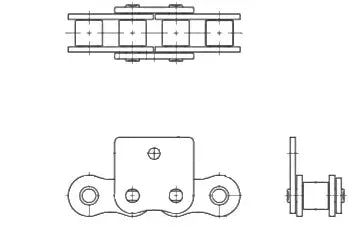

Dimensions:
#100 WSA-1 Attachment
  • Attachment size: #100 WSA-1
  • Pitch (P): 1.250"
  • Width Between Roller Links (W): 0.750"
  • Roller Diameter (R): 0.750"
  • Pin Diameter (D): 0.375"
  • Overall Chain Width: 1.556"
  • Overall Connecting Link Width: 1.678"
  • Link Plate Height (H): 1.185"
  • Link Plate Thickness (T): 0.156"
  • Attachment Dimension (C1): 1.252"
  • Attachment Dimension (O): 0.342"
  • Attachment Dimension (Xs): 1.732"
  • Attachment Dimension (Nw): 2.410"
  • Additional Weight Per Attachment: 0.121 LBS
