Power Transmission > Sprockets > Metric Roller Chain Sprockets > 06B Chain Sprockets
06BTB70 Sprocket (Taper Bushed)
Note:
Custom Cut to Length Chain Also Available
SKU: 06BTB70-SPROCKET
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote

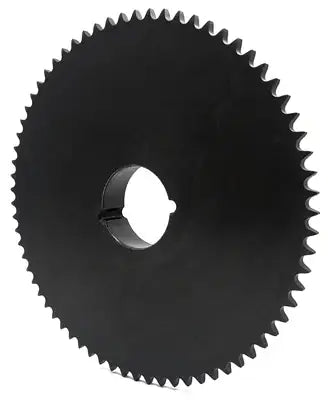

06BTB70 Sprocket (Taper Bushed) Features
This 06BTB70 sprocket is a durable, high quality, and precision sprocket that is manufactured to accept a 1610 bushing, It is a metric roller chain sprocket that meets BS228/3, ISO, and DIN standards; this ensures that the sprocket will have proper between the 06B roller chain and sprocket teeth, preventing premature wear or breakage. This sprocket is also black oxide coated which increases resistance to the environment and will prevent early rust build up. 06BTB70 sprockets are bored to accept a 1610 size taper bushing which we also stock with a wide range of bore sizes. For more information about the 06BTB70 sprocket or to get a quote, please contact us and we will be happy to assist you.
06BTB70 Sprocket Dimensions
- Sprocket Size: 06BTB70
- Tooth Count: 70
- Pitch Diameter: 212.30mm
- Bushing Type: 1610
- Maximum Bushing Bore: 41.28mm
- Dimension (L) 25.40mm
- Dimension (C): 82.55mm
- Sprocket Weight: 1.86 kg
- Bushing Weight: 0.41 kg
