06B76 Sprocket With Stock Bore Features
06B76 Sprocket With Stock Bore Specifications

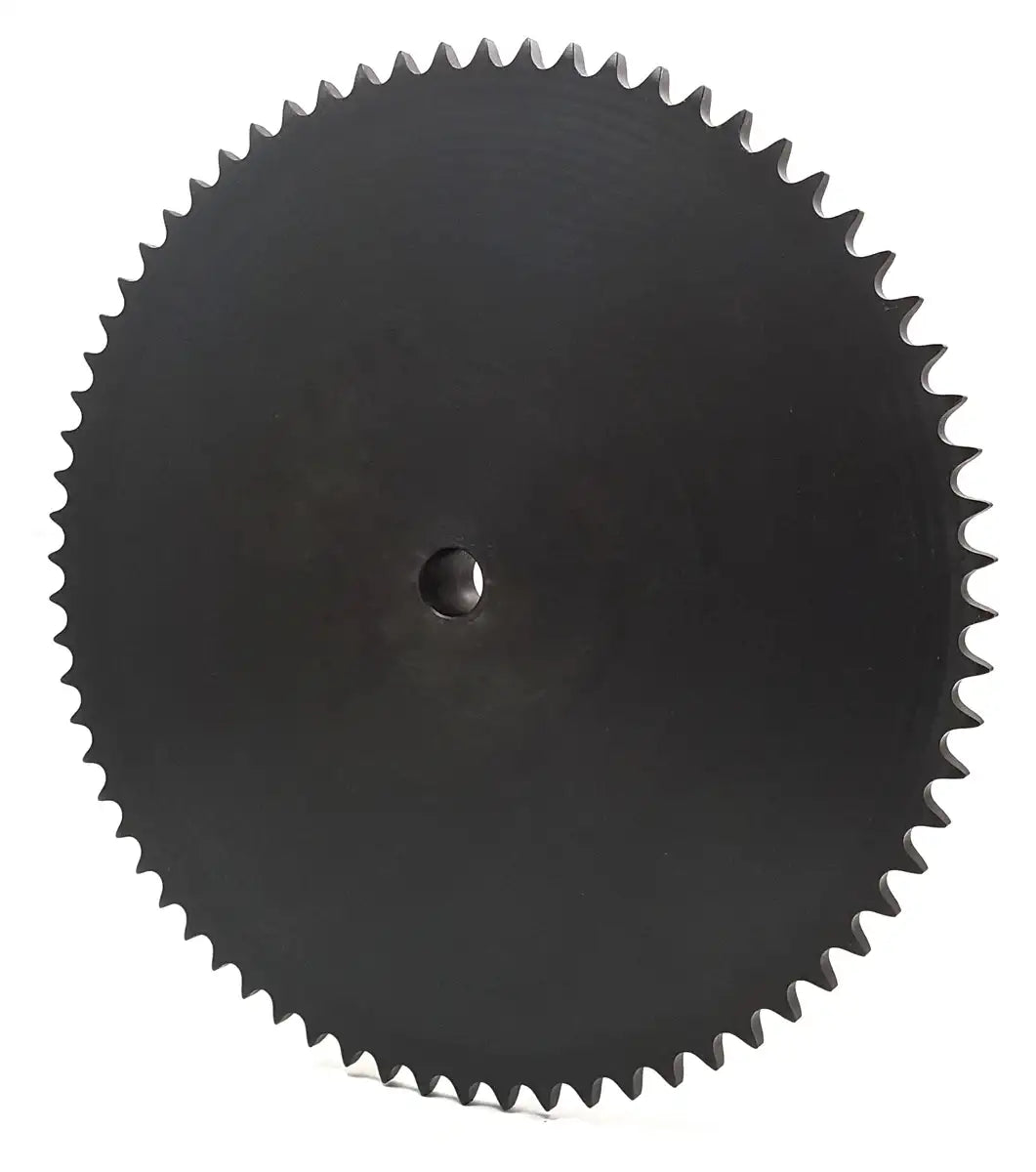

This 06B76 sprocket is a durable, high quality, and precision sprocket with 76 teeth. Something that is notable about this 06B76 sprocket is that it fully meets all ISO Standards, which insures proper contact between the 06B roller chain and sprocket thus preventing premature wear or breakage. This sprocket is also fully black oxide coated which increases resistance to the environment and will prevent early rust build up. 06B76 sprockets with a stock bore comes with the standard 19 millimeter inside diameter hole with no key-way or set screws and can be easily machine bored to custom sizes. We also offer sprockets with finished bore configurations right off the shelf from stock, and if you are needing a custom bore sprocket we the capabilities on providing those to within a fast lead time and at really great prices. Fore more information or to get a formal quote please contact us and we will be happy to assist you.

Dimensions:
06B76 Sprocket With Stock Bore
  • Sprocket Size: 06B76
  • Tooth Count: 76
  • Pitch Diameter: 230.49mm
  • Stock Bore: 19mm
  • Maximum Bore: 45mm
  • Hub Diameter: 75mm
  • Length Thru Bore: 30mm
  • Sprocket Weight: 1.91 KG
