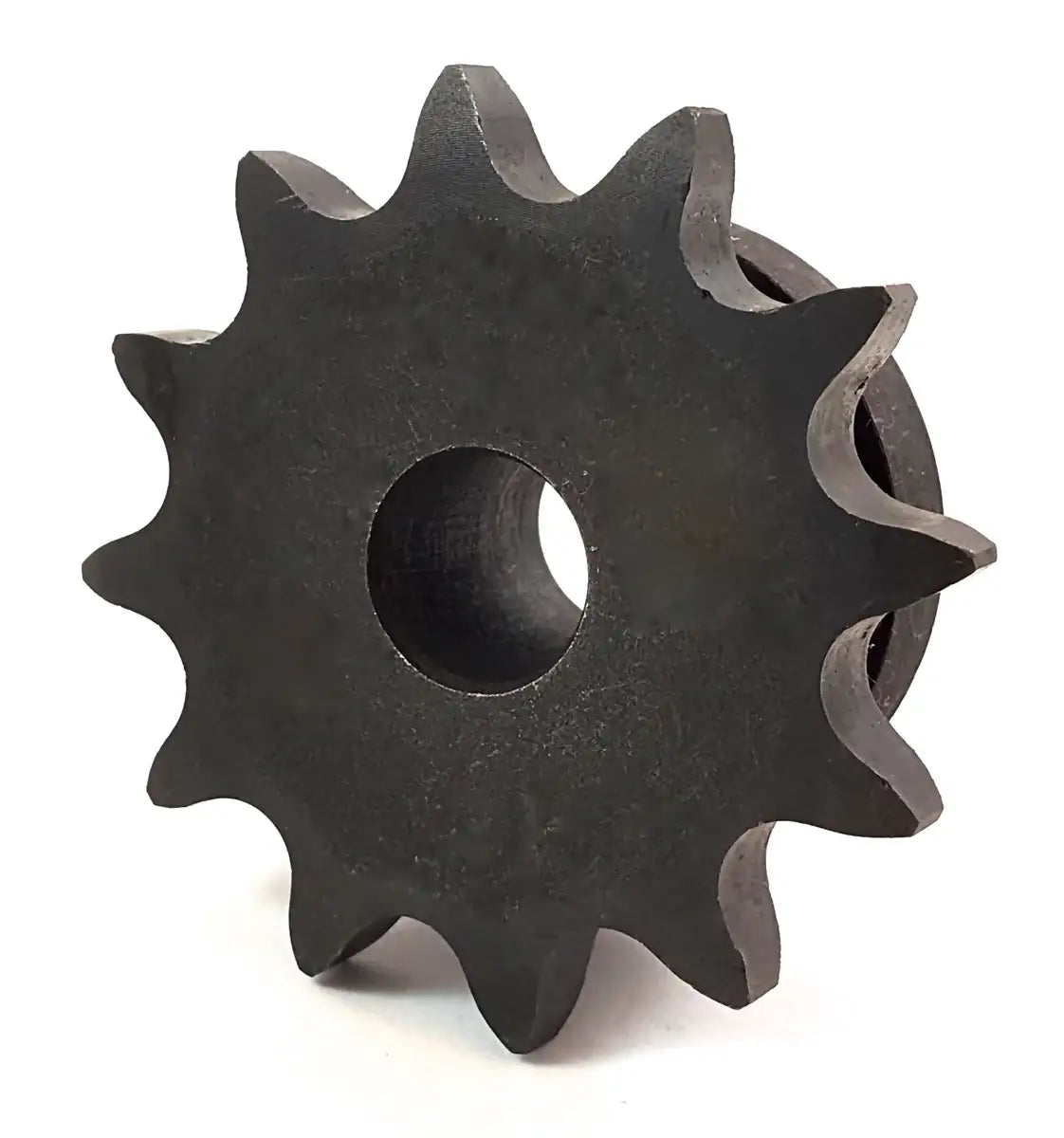

04B8 Sprocket With Stock Bore
Note:
- Custom bore sizes are available. Contact us if you need a specific bore size or machining requirement.
- Images are for reference only. Actual product appearance may vary based on size, bore, keyway, hub style, or manufacturer.
SKU: 04B8-SPROCKET
In stockOnly 0 left in stockBackordered
Out of stock
Item is unavailable
Contact Us For Pricing & Availability
Buy it With:
04B8 Sprocket With Stock Bore Description/Features
04B8 Sprocket With Stock Bore Specifications
This 04B8 sprocket is a durable, high quality, and precision sprocket with 8 teeth. Something else that is notable about this 04B8 sprocket is that it fully meets all ISO Standards, which ensures proper contact between the 04B-1 roller chain and sprocket thus preventing premature wear or breakage. 04B8 sprockets with a stock bore come with the standard 5 millimeters inside diameter hole with no key-way or set screws and can be easily machine bored to custom sizes and include a key-way and set-screws. If you are needing a custom bore sprocket we the capabilities on providing those to within a fast lead time and at really great prices. For more information or to get a formal quote please contact us and we will be happy to assist you.
04B8 Sprocket Dimensions
- Sprocket Size: 04B8
- Tooth Count: 8
- Sprocket Width (T): 2.6mm
- Pitch Diameter (PD): 15.67mm
- Outside Diameter (OD): 18.00mm
- Hub Diameter (H): 9.8mm
- Stock Bore (ID): 5mm
- Length Thru Bore (L): 10mm
- Weight: 0.1 kg
- Sprocket Size: 04A8
- Tooth Count: 8
- Sprocket Width (T): 2.6mm
- Pitch Diameter (PD): 15.67mm
- Outside Diameter (OD): 18.00mm
- Hub Diameter (H): 9.8mm
- Stock Bore (ID): 5mm
- Length Thru Bore (L): 10mm
- Weight: 0.1 kg
