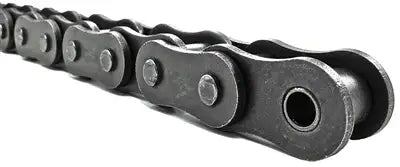

Metric 04B Roller Chain - 10ft Box
$119.99
SKU: ECO-04B-ROLLER-CHAIN
In stockOnly 0 left in stockBackordered
Out of stock
Item is unavailable
Contact Us For Pricing & Availability
Carbon Steel Chains
| Features | Premium/Premier | General Duty Plus | Economy Plus |
|---|---|---|---|
| Solid Bushings | Split Bushings in most cases | Split Bushings | |
| Solid Rollers | |||
| Through-Hardened Pins | Case-Hardened Pins | Heat-Treated Pins | |
| Case-Hardened Rollers | Heat-Treated in Some Chains | ||
| Case-Hardened Bushings | Heat-Treated in Some Chains | ||
| Wide Contour Plates | Standard Contour Plates | Standard Contour Plates | |
| Superior Pin to Plate Contact | |||
| High-Hold Riveting | Standard Dual-Stake Rivets | Standard Dual-Stake Rivets | |
| Factory Pre-Loading | Not Standard on Economy Chains | ||
| Specific Heat-Treatment on Every Component | Some Components Might be Heat-Treated | ||
| Premium Alloy & Carbon Materials | High-Quality Carbon Materials | Standard-Quality Carbon Materials | |
| Shot-Peened Components | Non Shot-Peened Components | Non Shot-Peened Components | |
| High-Precision Components | Standard Precision Components | Low Precision Components | |
| Conforms to ANSI B29.1 or ISO/DIN Standards |
Metric 04B Roller Chain - 10ft Box Description/Features
Metric 04B Roller Chain - 10ft Box Specifications
04B roller chain is manufactured to ISO British Standards and utilizes premium-precision parts. 04B metric roller chain is found in many light-duty industrial applications and has a pitch of 6.0 millimeters. Our metric chains dimensionally interchange with other brands but exceed in performance, strength, and working life. Implementing the use of heat-treated shot-peened components, factory pre-stressing, and premium lubrication have created an 04B chain that is made to last! We typically supply 04B-1 chain in 10ft boxes but it is also available in 5-meter boxes and larger length reels upon request, fore additional information please contact us and we will be happy to assist you.
04B Roller Chain Dimensions
|
Chain Size
|
Pitch (P)
|
Roller Width (W)
|
Roller Diameter (D)
|
Pin Diameter (E)
|
Plate Height (H)
|
C/L Width (A)
|
Breaking Load
|
Weight (Per Ft)
|
|---|---|---|---|---|---|---|---|---|
| 04B-1 | 6.0mm | 2.8mm | 4.0mm | 1.85mm | 5.0mm | 7.8mm | 3.2 kN | 0.12 kg/m |
| Chain Size | Pitch (P) | Roller Width (W) | Roller Diameter (D) | Pin Diameter (E) | Plate Height (H) | C/L Width (A) | Breaking Load | Weight (Per Ft) |
|---|---|---|---|---|---|---|---|---|
| 04B-1 | 6.0mm | 2.8mm | 4.0mm | 1.85mm | 5.0mm | 7.8mm | 3.2 kN | 0.12 kg/m |
