• JKM645 Tram Chain | JKM645 Mining Tram Chain
1 1

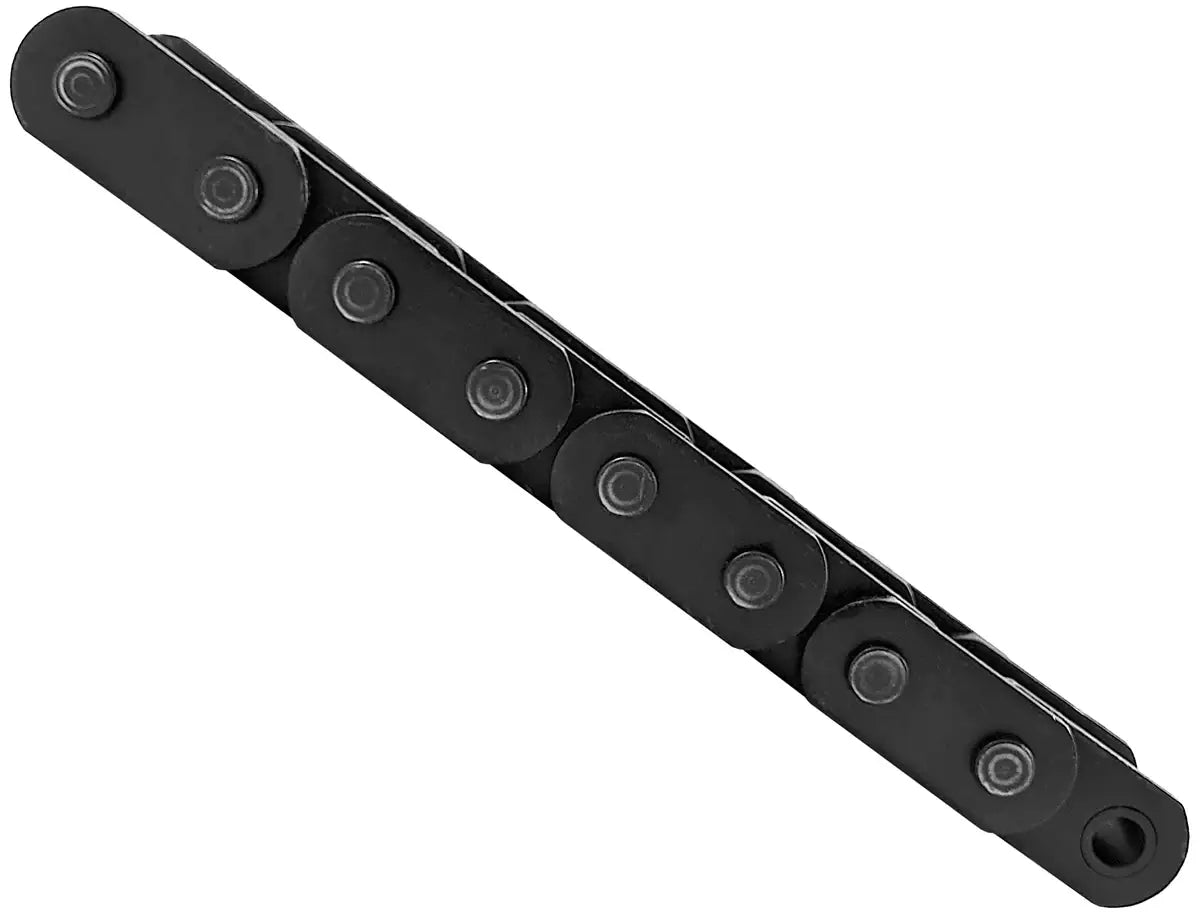

JKM645 Tram Chain | JKM645 Mining Tram Chain

JKM645 Tram Chain | JKM645 Mining Tram Chain

Note: Custom Cut to Length Chain Also Available
Product Code: JKM645-TRAM-CHAIN
Shipping calculated at checkout.
View full details
Description
Specification
JKM645 tram chain is designed similarly to a 2.5" pitch transmission roller chain but specifically used forder applications in mining operations. Our JKM645 chain utilizes precision components made from high-grade carbon and alloy steels for optimal performance, durability, and fatigue resistance. Pins are heat-treated and made of alloy steel to improve capacity, with the same being accurate with the sidebars, and the bushings are made from alloy steel that has been case-hardened for optimal wear resistance. Additionally, our JKM645 chain directly interchanges with other brands! For more information or a quote on our premium JKM645 chain or sprockets, contact our customer support team; we will be happy to assist you!

JKM645 Chain Dimensions

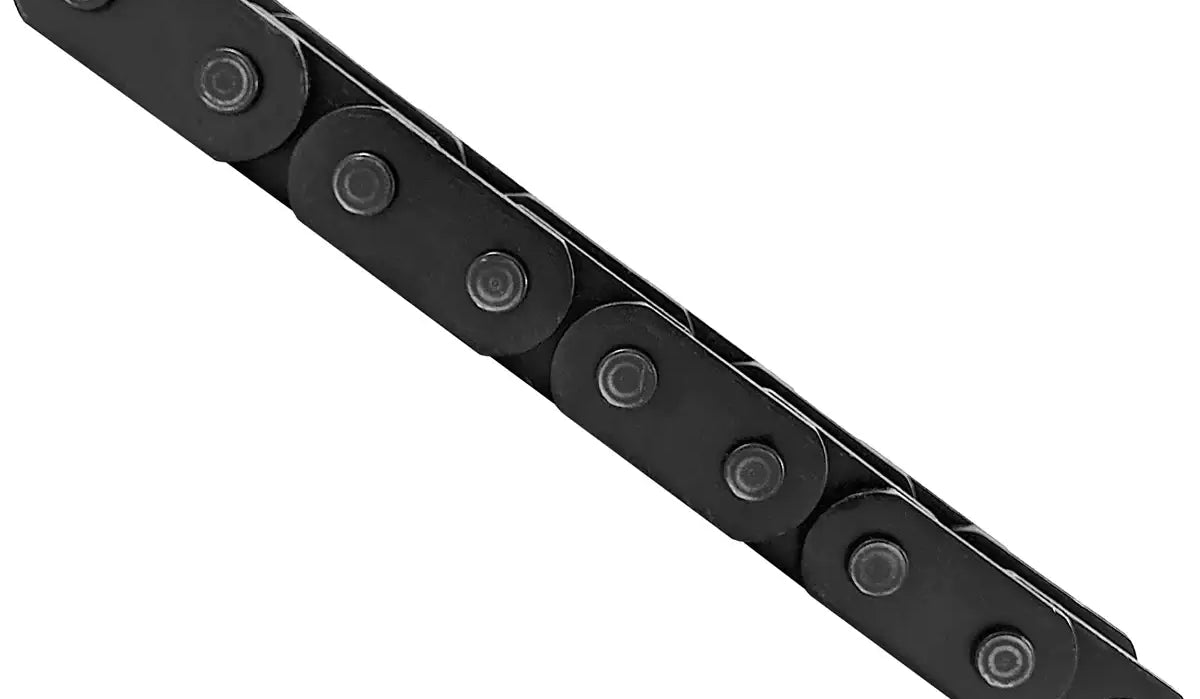

JKM645 Tram Chain | JKM645 Mining Tram Chain
  • Part #: JKM645
  • Style: B
  • Pitch (A): 2.50"
  • Overall Width (J + K): 3.720"
  • Inside Width (W): 1.500"
  • Pin Diameter (L): 0.880"
  • Pin Material: Alloy Heat-Treated
  • Bushing Diameter (B): 1.130"
  • Bushing Material: Alloy Case-Hardened
  • Sidebar Thickness (C): 0.380"
  • Sidebar Height (H): 2.130"
  • Sidebar Material: Alloy Heat-Treated
  • Weight: 13.5 LBS/ FT

  • Part #: JKM645
  • Style: B
  • Pitch (A): 2.50"
  • Overall Width (J + K): 3.720"
  • Inside Width (W): 1.500"
  • Pin Diameter (L): 0.880"
  • Pin Material: Alloy Heat-Treated
  • Bushing Diameter (B): 1.130"
  • Bushing Material: Alloy Case-Hardened
  • Sidebar Thickness (C): 0.380"
  • Sidebar Height (H): 2.130"
  • Sidebar Material: Alloy Heat-Treated
  • Weight: 13.5 LBS/ FT
