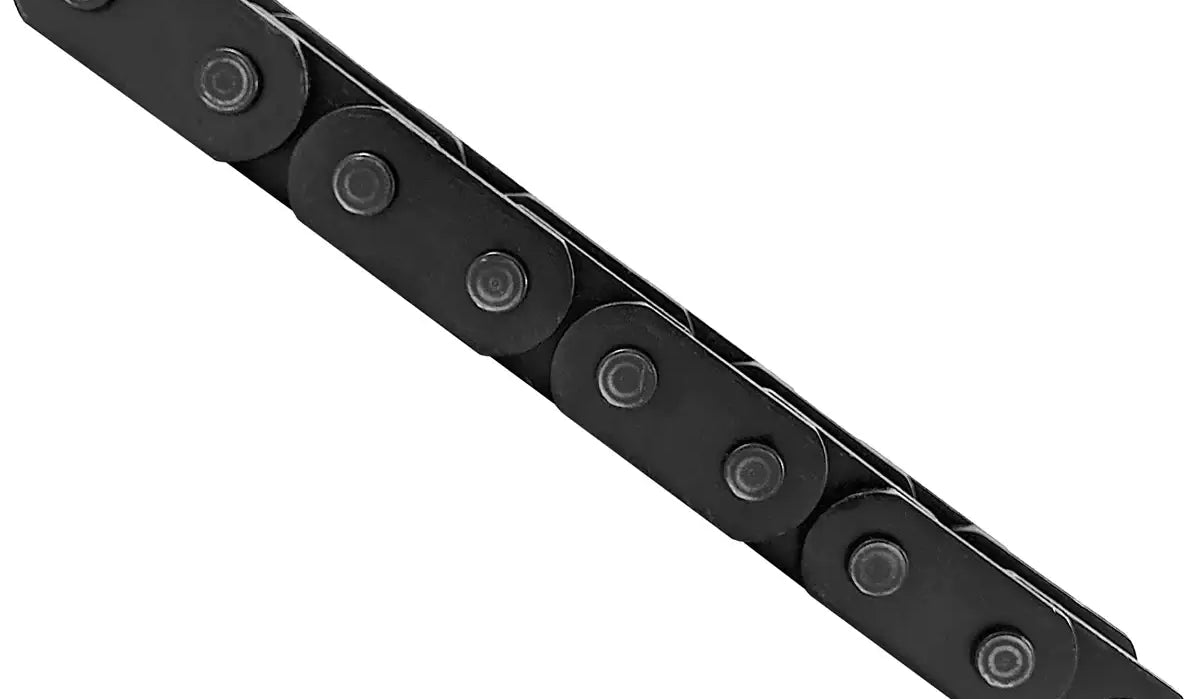

64SM Tram Chain | 64SM Mining Tram Chain - Mining Chain

By Application > Mining Chain & Sprockets > Mining Tram Chain

64SM Tram Chain | 64SM Mining Tram Chain - Mining Chain

Note: Custom Cut to Length Chain Also Available
SKU: 64SM-TRAM-CHAIN
Item is in stockOnly 0 left in stockItem is out of stock Item is unavailable

Login to Request a Quote

<p>Don’t see what you need?</p>

Don’t see what you need?

Call us
[{"variant_id":"51714743959919" , "metafield_value":""}]
64SM Tram Chain | 64SM Mining Tram Chain - Mining Chain Features
64SM Tram Chain | 64SM Mining Tram Chain - Mining Chain Specifications

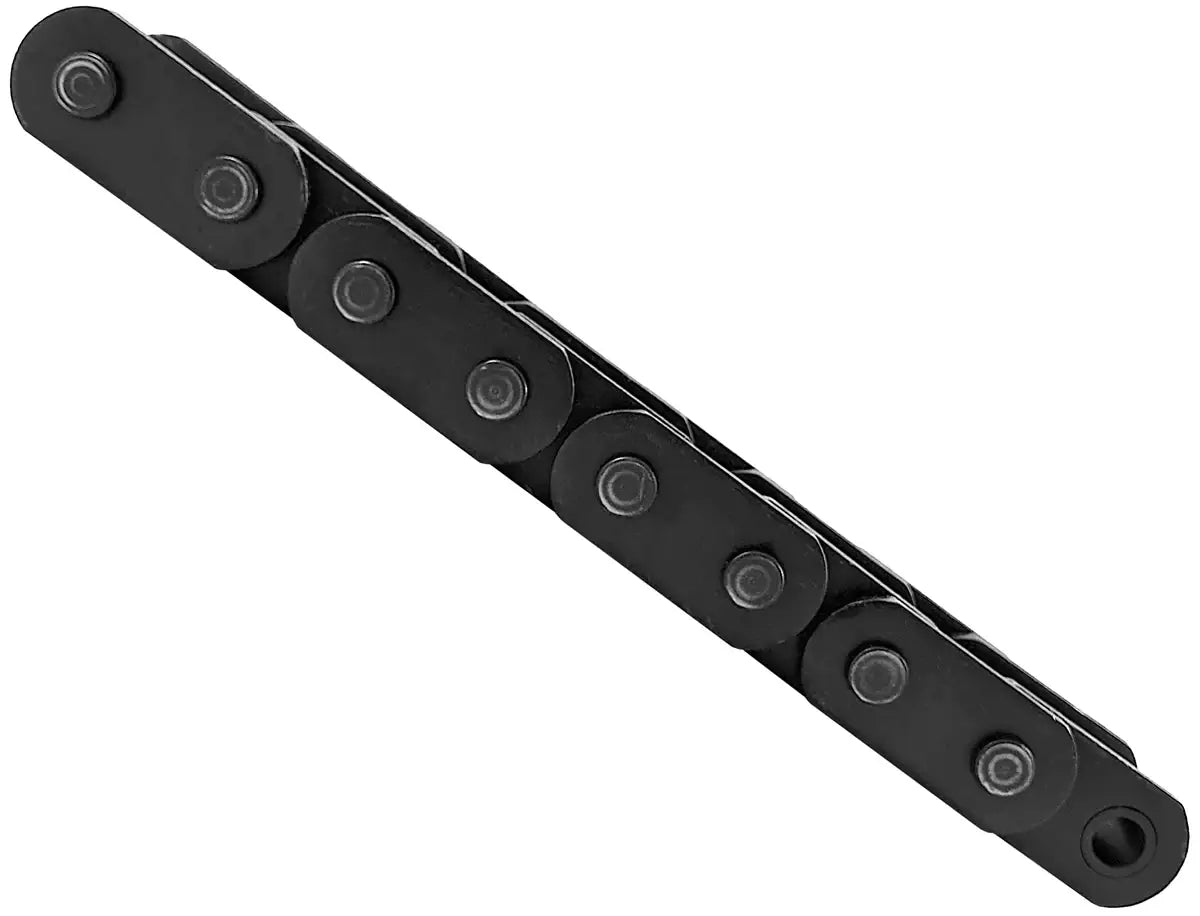

64SM tram chain is designed similarly to a 2.5" pitch transmission roller chain but specifically used forder applications in mining operations. Our 64SM chain utilizes precision components made from high-grade carbon and alloy steels for optimal performance, durability, and fatigue resistance. Pins are heat-treated and made of alloy steel to improve capacity, with the same being accurate with the sidebars, and the bushings are made from alloy steel that has been case-hardened for optimal wear resistance. Additionally, our 64SM chain directly interchanges with other brands! For more information or a quote on our premium 64SM chain or sprockets, contact our customer support team; we will be happy to assist you!

64SM Chain Dimensions

64SM Tram Chain | 64SM Mining Tram Chain - Mining Chain
  • Part #: 64SM
  • Style: A
  • Pitch (A): 2.50"
  • Overall Width (J + K): 4.130"
  • Inside Width (W): 1.500"
  • Pin Diameter (L): 0.875"
  • Pin Material: Alloy Heat-Treated
  • Bushing Diameter (B): 1.125"
  • Bushing Material: Alloy Case Hardened
  • Roller Diameter (T): 1.250"
  • Roller Material: Alloy Heat-Treated
  • Sidebar Thickness (C): 0.438" Inside Bar/ 0.500" Outside Bar
  • Sidebar Height (H): 2.125"
  • Sidebar Material: Alloy Heat-Treated
  • Weight: 14.5 LBS/ FT

  • Part #: 64SM
  • Style: A
  • Pitch (A): 2.50"
  • Overall Width (J + K): 4.130"
  • Inside Width (W): 1.500"
  • Pin Diameter (L): 0.875"
  • Pin Material: Alloy Heat-Treated
  • Bushing Diameter (B): 1.125"
  • Bushing Material: Alloy Case Hardened
  • Roller Diameter (T): 1.250"
  • Roller Material: Alloy Heat-Treated
  • Sidebar Thickness (C): 0.438" Inside Bar/ 0.500" Outside Bar
  • Sidebar Height (H): 2.125"
  • Sidebar Material: Alloy Heat-Treated
  • Weight: 14.5 LBS/ FT
