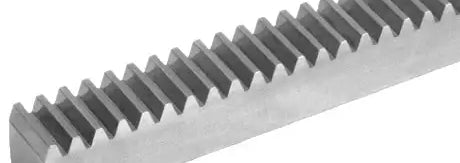

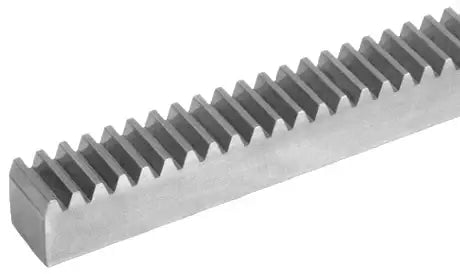

Module 1 Stainless Gear Rack (10X10X9) - 250mm
Note:
Custom Cut to Length Chain Also Available
SKU: 22499603-RACK
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
Module 1 Stainless Gear Rack (10X10X9) - 250mm Features
Module 1 Stainless Gear Rack (10X10X9) - 250mm Specifications
Our module 1 stainless steel gear rack is precisely manufactured from 303-grade stainless steel and utilizes a 20-degree pressure angle straight tooth profile; the rack conforms with DIN 867/ DIN 3972 standards for direct interchangeability and function. This rack is 10mm x 10mm x 9mm and 250mm long. Made from stainless steel, the rack can operate in various temperatures and food-grade, abrasive, and corrosive environments. We also supply a range of stainless steel spur gears for module 1 stainless racks and a mounting aid for ease of continuous mounting. For additional information or to get a quote on our module 1 stainless steel gear rack and gears, contact our customer support team, and we will gladly assist you!
Module 1 Stainless Gear Rack dimensions
- Part #: 22499603
- Module:1
- Dimension (b): 10mm
- Dimension (H): 10mm
- Dimension (h): 9.0mm
- Length (L): 250mm
- Weight: 0.17 KG
- Part #: 22499603
- Module:1
- Dimension (b): 10mm
- Dimension (H): 10mm
- Dimension (h): 9.0mm
- Length (L): 250mm
- Weight: 0.17 KG
