Power Transmission > Gears and Gear Racks > Stainless Steel Gear Racks

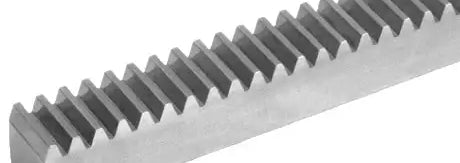

Module 2.5 Stainless Gear Rack 1500mm
Note:
Custom Cut to Length Chain Also Available
SKU: 24299607-RACK
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
Module 2.5 Stainless Gear Rack 1500mm Features
Module 2.5 Stainless Gear Rack 1500mm Specifications

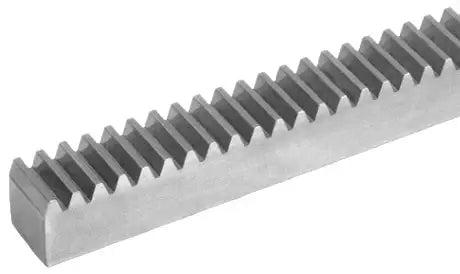

Our module 2.5 stainless steel gear rack is precisely manufactured from 303-grade stainless steel and utilizes a 20-degree pressure angle straight tooth profile; the rack conforms with DIN 867/ DIN 3972 standards for direct interchangeability and function. This rack is 25mm x 25mm x 22.5mm and 1500mm long. Made from stainless steel, the rack can operate in various temperatures and food-grade, abrasive, and corrosive environments. We also supply a range of stainless steel spur gears for module 2.5 stainless racks and a mounting aid for ease of continuous mounting. For additional information or to get a quote on our module 2.5 stainless steel gear rack and gears, contact our customer support team, and we will gladly assist you!
Module 2.5 Stainless Gear Rack dimensions
- Part #: 24299607
- Module:2.5
- Dimension (b): 25mm
- Dimension (H): 25mm
- Dimension (h): 22.5mm
- Length (L): 1500mm
- Weight: 6.46 KG
- Part #: 24299607
- Module:2.5
- Dimension (b): 25mm
- Dimension (H): 25mm
- Dimension (h): 22.5mm
- Length (L): 1500mm
- Weight: 6.46 KG
