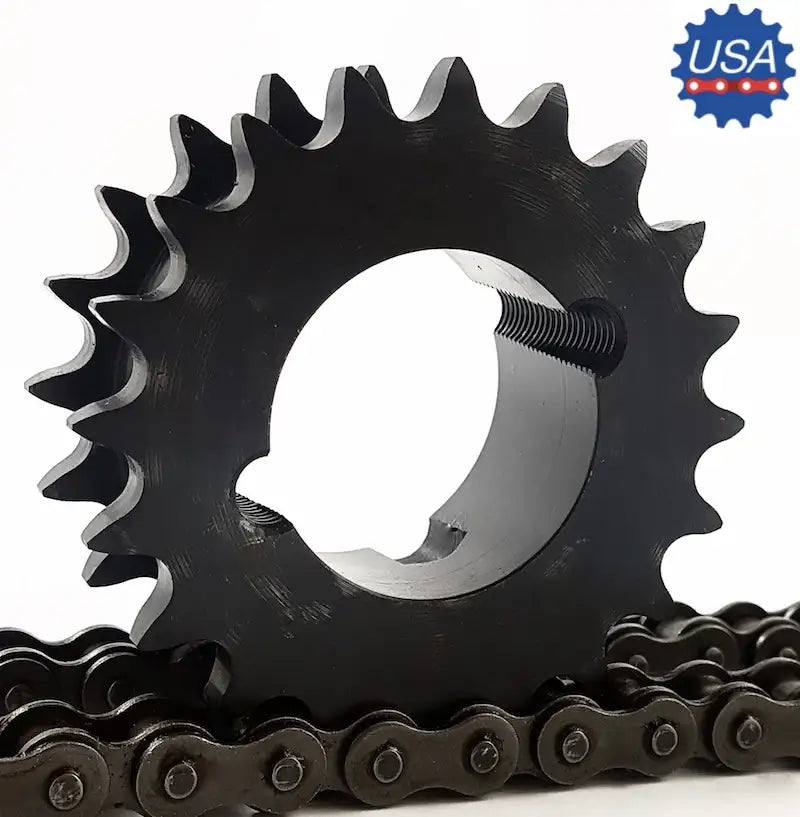

D16ATB16 Sprocket (Taper Bushed)
Note:
- Custom bore sizes are available. Contact us if you need a specific bore size or machining requirement.
- Images are for reference only. Actual product appearance may vary based on size, bore, keyway, hub style, or manufacturer.
SKU: D16ATB16-SPROCKET
In stockOnly 0 left in stockBackordered
Out of stock
Item is unavailable
Contact Us For Pricing & Availability
D16ATB16 Sprocket (Taper Bushed) Description/Features
D16ATB16 Sprocket (Taper Bushed) Specifications
This D16ATB16 sprocket is a metric taper bushed style roller chain sprocket manufactured under ISO and British Standard 228. and is made to accept a 2012 taper bushing. Our D16ATB16 sprockets are made with reliability and performance in mind, so we use high-quality carbon steel (CS) and have the sprocket precision cut to ensure maximum performance and wear life. We also offer upgrades on our D16ATB16 sprockets such as black-oxide coatings and heat-treated hardened teeth, though we often have these specific sprockets with those features already added right off the shelf. Besides the 16 tooth sprocket, we also stock a high-quality 16B roller chain, 2012 bushings, and a wide array of roller chain accessories. For more information or to get a quote on taper bushed D16ATB16 sprockets, please contact us and one of our sales team members will be happy to assist you.
D16ATB16 Sprocket Dimensions
- Sprocket Size: D16ATB16
- Tooth Count: 16
- Pitch Diameter: 130.20mm
- Bushing Size: 2012
- Maximum Bushing Bore Size: 50.80mm
- Length Thru Bore (L): 31.75mm
- Sprocket Weight: 2.27 kG
- Bushing Weight: 0.77 kG
- Sprocket Size: D16ATB16
- Tooth Count: 16
- Pitch Diameter: 130.20mm
- Bushing Size: 2012
- Maximum Bushing Bore Size: 50.80mm
- Length Thru Bore (L): 31.75mm
- Sprocket Weight: 2.27 kG
- Bushing Weight: 0.77 kG
