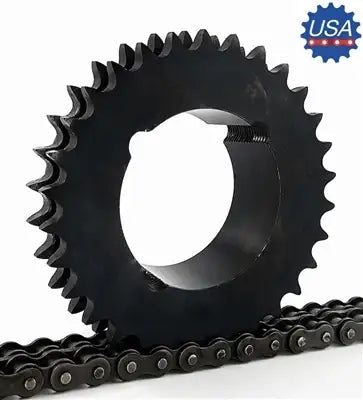

D06BTB95 Sprocket (Taper Bushed)
Note:
- Custom bore sizes are available. Contact us if you need a specific bore size or machining requirement.
- Images are for reference only. Actual product appearance may vary based on size, bore, keyway, hub style, or manufacturer.
SKU: D06BTB95-SPROCKET
In stockOnly 0 left in stockBackordered
Out of stock
Item is unavailable
Contact Us For Pricing & Availability
D06BTB95 Sprocket (Taper Bushed) Description/Features
D06BTB95 Sprocket (Taper Bushed) Specifications
This D06BTB95 sprocket is a metric taper bushed style roller chain sprocket manufactured under ISO and British Standard 228. and is made to accept a 1610 taper bushing. Our D06BTB95 sprockets are made with reliability and performance in mind, so we use high-quality carbon steel (CS) and have the sprocket precision cut to ensure maximum performance and wear life. We also offer upgrades on our D06BTB95 sprockets such as black-oxide coatings and heat-treated hardened teeth, though hardened tooth sprockets are typically not utilized on tooth counts past 30. Besides the 95 tooth sprocket, we also stock a high-quality 06B-2 roller chain, 1610 bushings, and a wide array of roller chain accessories. For more information or to get a quote on taper bushed D06BTB95 sprockets, please contact us and one of our sales team members will be happy to assist you.
D06BTB95 Sprocket Dimensions
- Sprocket Size: D06BTB95
- Tooth Count: 95
- Pitch Diameter: 288.08mm
- Bushing Size: 1610
- Maximum Bushing Bore: 41.28mm
- Length Thru Bore (L): 25.40mm
- Hub Diameter (C): 92.08mm
- Sprocket Weight: 6.9 kG
- Bushing Weight: 0.27 kG
- Sprocket Size: D06BTB95
- Tooth Count: 95
- Pitch Diameter: 288.08mm
- Bushing Size: 1610
- Maximum Bushing Bore: 41.28mm
- Length Thru Bore (L): 25.40mm
- Hub Diameter (C): 92.08mm
- Sprocket Weight: 6.9 kG
- Bushing Weight: 0.27 kG
