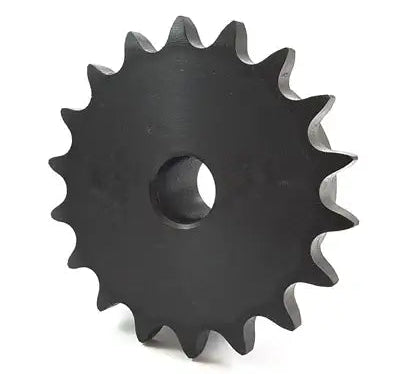

D06B35 Sprocket With Stock Bore
Note:
- Custom bore sizes are available. Contact us if you need a specific bore size or machining requirement.
- Images are for reference only. Actual product appearance may vary based on size, bore, keyway, hub style, or manufacturer.
SKU: D06B35-SPROCKET
In stockOnly 0 left in stockBackordered
Out of stock
Item is unavailable
Contact Us For Pricing & Availability
D06B35 Sprocket With Stock Bore Description/Features
D06B35 Sprocket With Stock Bore Specifications
This D06B35 sprocket with a stock bore is a metric roller chain sprocket manufactured under ISO and British Standard 228. Our D06B35 sprockets are made with reliability and performance in mind, so we use high-quality carbon steel (CS) and have the sprocket precision cut to ensure maximum performance and wear life. Besides the stock bore we also can supply these sprockets with a specific plain or finished (has key-way and set screws) bore size. We also offer upgrades on our D06B35 sprockets such as black-oxide coatings and heat-treated hardened teeth, though hardened tooth sprockets are typically not utilized on tooth counts past 30. Besides the 32 tooth sprocket, we also stock a high-quality 06B-2 roller chain and a wide array of roller chain accessories. For more information or to get a quote on D06B35 sprockets, please contact us and one of our sales team members will be happy to assist you.
D06B35 Sprocket Dimensions
- Sprocket Size: D06B35
- Tooth Count: 35
- Pitch Diameter: 106.26mm
- Stock Bore: 16mm
- Maximum Recommended Bore: 52mm
- Hub Dia Diameter (H): 80mm
- Length Thru Bore (L): 30mm
- Sprocket Weight: 1.42 kG
- Sprocket Size: D06B35
- Tooth Count: 35
- Pitch Diameter: 106.26mm
- Stock Bore: 16mm
- Maximum Recommended Bore: 52mm
- Hub Dia Diameter (H): 80mm
- Length Thru Bore (L): 30mm
- Sprocket Weight: 1.42 kG
