X678 Conveyor Chain

Name: X678 Conveyor Chain
Brand: USA ROLLER CHAIN
SKU: X678-CONVEYOR-CHAIN
Availability: InStock

Note: Custom Cut to Length Chain Also Available

SKU: X678-CONVEYOR-CHAIN

Item is in stockOnly 0 left in stockItem is out of stock Item is unavailable

Call to order

Don’t see what you need?

Call us

X678 Conveyor Chain Features

X678 Conveyor Chain Specifications

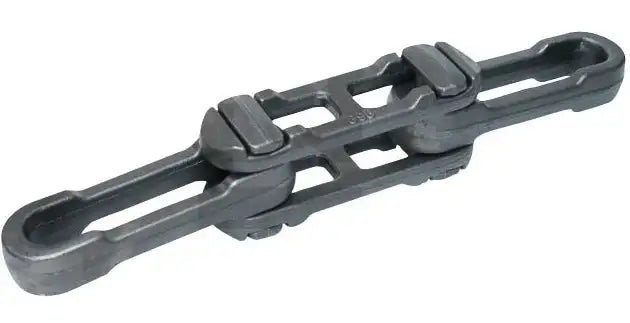

X678 Conveyor Chain

This X678 conveyor chain features fully heat treated and solid components that are manufactured using high quality steel and has an ultimate strength of 85,000 lbs. Additionally, this X678 conveyor chain is designed to have increased flexibility, transverse pitch strength, and the best overall operating performance. X678 Rivetless Drop Forged Chain is used in a wide range of conveyor applications including; the automotive industry, material handling, meat packing, overhead conveyors, poultry processing, sugar processing, trolley conveyors, and more. We also offer a full line of X678 conveyor chain sprockets and X678 chain attachments. Thanks to our sourcing experts, partners, and engineers, this chain is normally in stock at a great price. For pricing and availability please contact us and we will be happy to assist you.

Dimensions:

Pitch: 6.031"
Dimension (D): 0.880"
Dimension (E): 3.03"
Dimension (F): 2.00"
Dimension (T): 0.72"
Dimension (T1): 0.84"
Dimension (X): 1.31"
Dimension (B): 1.00"
Ultimate Strength: 85,000 LBS
Links Per 10ft: 20
Weight: 6.7 lbs/ft
