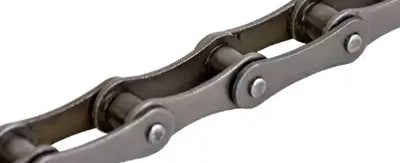

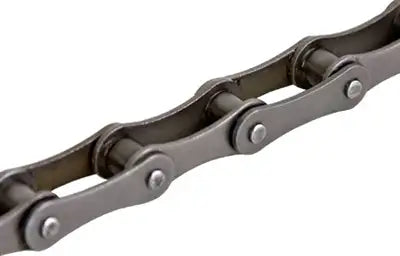

S55H Roller Chain - Agricultural Chain
Note:
Custom Cut to Length Chain Also Available
SKU: S55H-CHAIN
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
Buy it With:
S55H Roller Chain - Agricultural Chain Features
S55H Roller Chain - Agricultural Chain Specifications
S55H roller chain is typically found in agricultural and conveying applications. This chain features solid rollers for increased performance and even load distribution, as well as heat-treated components for increased strength and shock load capability. Besides the chain we can also supply sprockets, bearings, shafting, and more! To get a quote or for more information please contact us and we will be happy to assist you.
S55H Chain Dimensions
- Pitch (P): 41.40mm
- Roller Diameter (D1): 17.78mm
- Width Between Inner Plates (B1): 22.23mm
- Pin Diameter (D2): 9.10mm
- Pin Length (L): 40.0mm
- Connecting Link Pin Length (LC): 44.50mm
- Inner Plate Depth (H2): 23.10mm
- Plate Thickness (T): 3.00mm
- Tensile Strength: 9,440 LBS
- Weight Per Meter: 5.84 LBS
- Pitch (P): 41.40mm
- Roller Diameter (D1): 17.78mm
- Width Between Inner Plates (B1): 22.23mm
- Pin Diameter (D2): 9.10mm
- Pin Length (L): 40.0mm
- Connecting Link Pin Length (LC): 44.50mm
- Inner Plate Depth (H2): 23.10mm
- Plate Thickness (T): 3.00mm
- Tensile Strength: 9,440 LBS
- Weight Per Meter: 5.84 LBS
