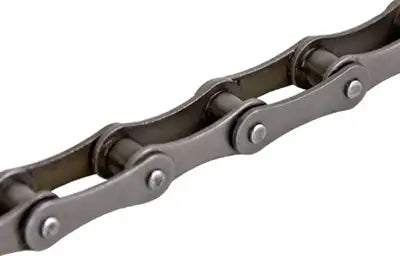

P41.3 Roller Chain - Agricultural Chain
Note:
Custom Cut to Length Chain Also Available
SKU: P413-CHAIN
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
P41.3 Roller Chain - Agricultural Chain Features
P41.3 Roller Chain - Agricultural Chain Specifications
P41.3 roller chain is typically found in agricultural and conveying applications. This chain features solid rollers for increased performance and even load distribution, as well as heat-treated components for increased strength and shock load capability. Besides the chain we can also supply sprockets, bearings, shafting, and more! To get a quote or for more information please contact us and we will be happy to assist you.
P41.3Chain Dimensions
- Pitch (P): 41.3mm
- Roller Diameter (D1): 16.0mm
- Width Between Inner Plates (B1): 21.4mm
- Pin Diameter (D2): 8.28mm
- Pin Length (L): 39.0mm
- Connecting Link Pin Length (LC): 42.0mm
- Inner Plate Depth (H2): 23.5mm
- Plate Thickness (T): 3.1mm
- Tensile Strength: 11,363 LBS
- Weight Per Meter: 5.00 LBS
- Pitch (P): 41.3mm
- Roller Diameter (D1): 16.0mm
- Width Between Inner Plates (B1): 21.4mm
- Pin Diameter (D2): 8.28mm
- Pin Length (L): 39.0mm
- Connecting Link Pin Length (LC): 42.0mm
- Inner Plate Depth (H2): 23.5mm
- Plate Thickness (T): 3.1mm
- Tensile Strength: 11,363 LBS
- Weight Per Meter: 5.00 LBS
