80B10 Sprocket | 80B10H Sprocket - Stock Bore Sprocket $36.99 -
80B21 Sprocket | 80B21H Sprocket - Stock Bore Sprocket $111.99 -
80B19 Sprocket | 80B19H Sprocket - Stock Bore Sprocket $94.99 -
80A84 Sprocket $1,224.99 -
80B23 Sprocket | 80B23H Sprocket - Stock Bore Sprocket $135.99 -
80B22 Sprocket | 80B22H Sprocket - Stock Bore Sprocket $129.99 -
80B16 Sprocket | 80B16H Sprocket - Stock Bore Sprocket $72.99 -
80A90 Sprocket $1,467.99 -

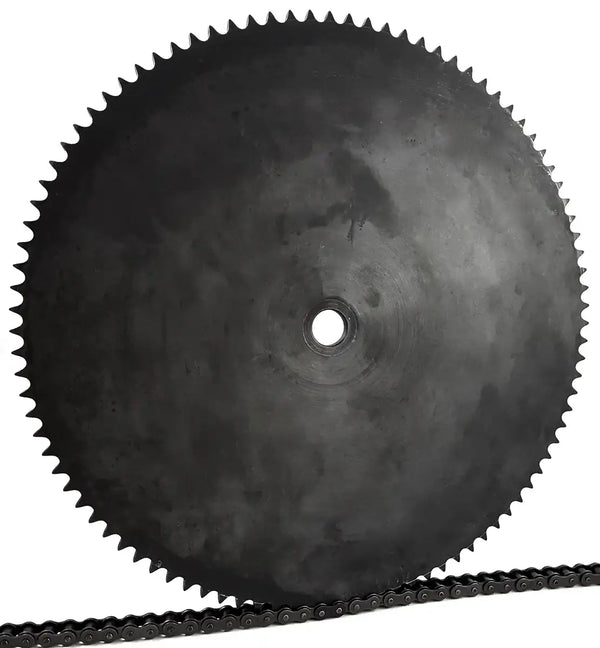

80A96 Sprocket $1,530.99 -

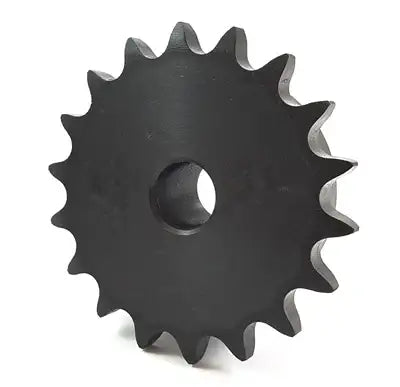

80B18 Sprocket | 80B18H Sprocket - Stock Bore Sprocket $91.99 -
80B13 Sprocket | 80B13H Sprocket - Stock Bore Sprocket $50.99 -
80A76 Sprocket $957.99 -
80A80 Sprocket $1,146.99 -

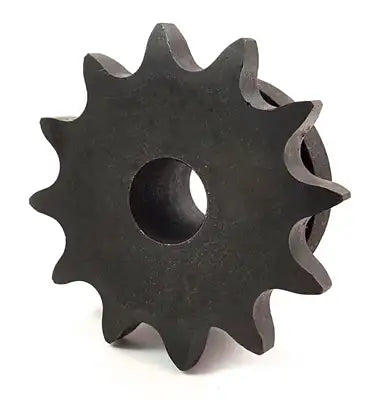

80B12 Sprocket | 80B12H Sprocket - Stock Bore Sprocket $45.99 -
80A57 Sprocket $619.99 -

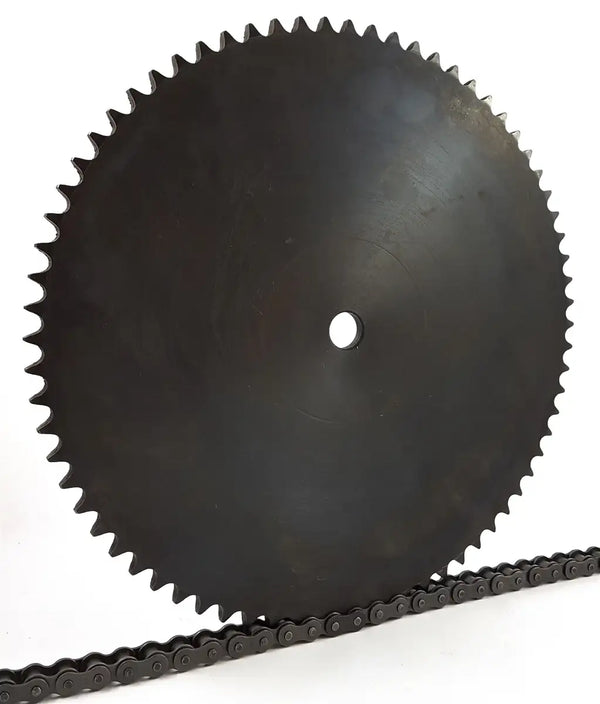

80A70 Sprocket $841.99 -
80A49 Sprocket $415.99 -
80A58 Sprocket $633.99 -
80A52 Sprocket $521.99 -

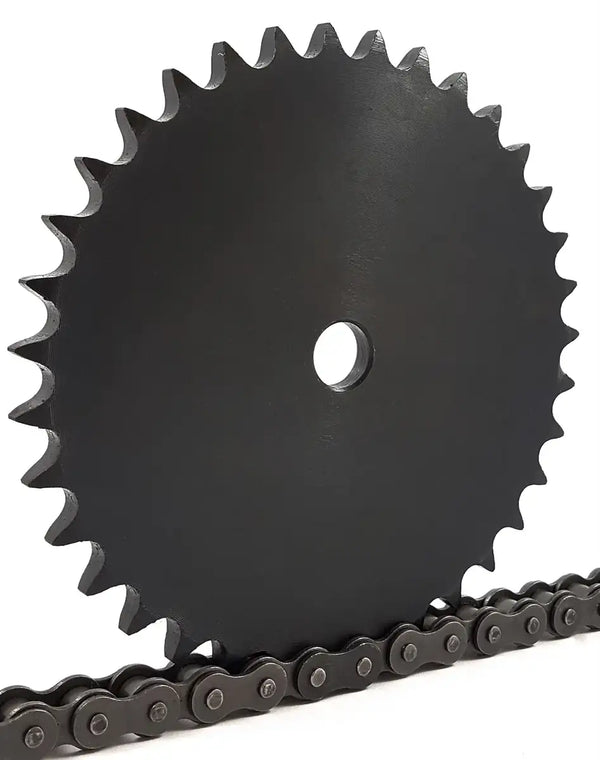

80A35 Sprocket $204.99 -
80A22 Sprocket $75.99 -
80A27 Sprocket $153.99 -
80A38 Sprocket $245.99 -
80A9 Sprocket $40.99
#80 Chain Sprockets
80 Chain Sprockets are manufactured in accordance with ANSI B29.1 Standards and are made for 1" pitch 80 and heavy-duty 80H roller chains. Being manufactured to The American National Standards Institutes dimensions means that these sprockets directly interchange with other manufacturers. Up to 30-teeth, our 80 sprockets feature hardened teeth for a dynamic performance factor increase and increased sprocket longevity. Out standard steel sprockets utilize a black-oxide coating for added corrosion protection, they are also manufactured from a premium high-strength grade of mild steel for an additional increase in sprocket life. To really experience the difference with our sprockets try one out side-by-side with another and see for yourself, to get a quote or for additional information please contact us and we will be happy to assist you.

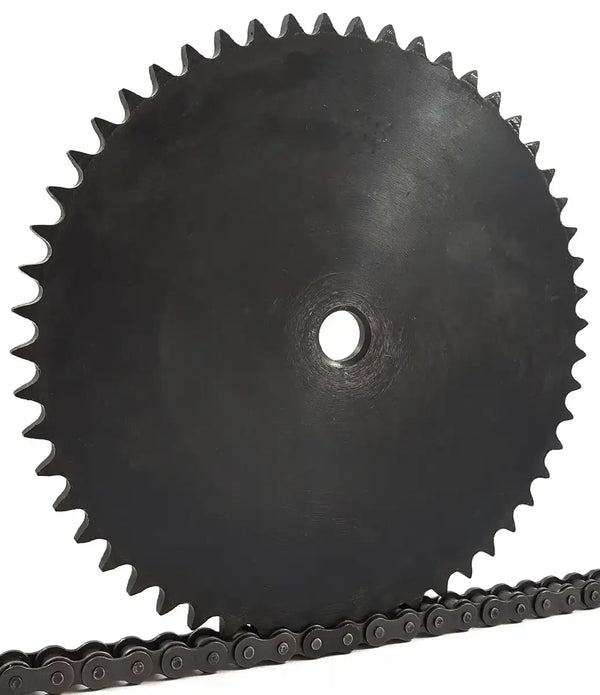

80 A-Plate Sprockets
|
Size
|
Type
|
Outside Diameter (O.D.)
|
Tooth Count
|
Stock Bore
|
Weight (LBS)
|
|---|---|---|---|---|---|
| 80A9 | A | 9 | 15/16" | 0.8 | |
| 80A10 | A | 10 | 15/16" | 1.0 | |
| 80A11 | A | 11 | 15/16" | 1.3 | |
| 80A12 | A | 12 | 15/16" | 1.5 | |
| 80A13 | A | 13 | 15/16" | 1.8 | |
| 80A14 | A | 14 | 15/16" | 2.2 | |
| 80A15 | A | 15 | 15/16" | 2.5 | |
| 80A16 | A | 16 | 15/16" | 2.9 | |
| 80A17 | A | 17 | 15/16" | 3.3 | |
| 80A18 | A | 18 | 15/16" | 3.7 | |

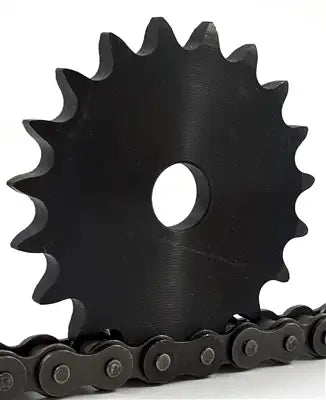

| 80A19 | A | 19 | 15/16" | 4.1 | |
| 80A20 | A | 20 | 15/16" | 4.7 | |
| 80A21 | A | 21 | 15/16" | 4.9 | |
| 80A22 | A | 22 | 15/16" | 5.5 | |
| 80A23 | A | 23 | 15/16" | 6.3 | |
| 80A24 | A | 24 | 15/16" | 6.7 | |

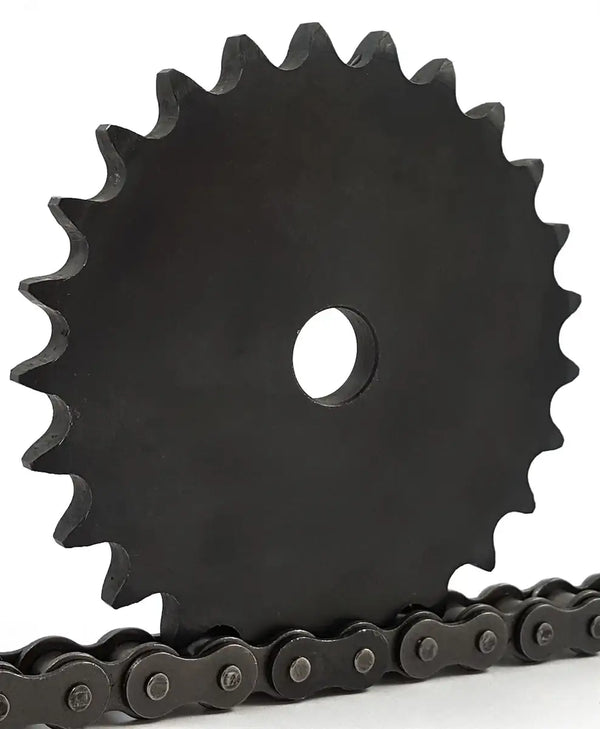

| 80A25 | A | 25 | 15/16" | 7.2 | |
| 80A26 | A | 26 | 1-3/16" | 7.8 | |
| 80A27 | A | 27 | 1-3/16" | 8.6 | |
| 80A28 | A | 28 | 1-3/16" | 9.3 | |
| 80A29 | A | 29 | 1-3/16" | 9.8 | |
| 80A30 | A | 30 | 1-3/16" | 10.7 | |
| 80A31 | A | 31 | 1-3/16" | 11.3 | |
| 80A32 | A | 32 | 1-3/16" | 12.1 | |
| 80A33 | A | 33 | 1-3/16" | 13.6 | |
| 80A34 | A | 34 | 1-3/16" | 14.3 | |
| 80A35 | A | 35 | 1-3/16" | 14.8 | |
| 80A36 | A | 36 | 1-3/16" | 16.1 | |
| 80A37 | A | 37 | 1-3/16" | 16.8 | |
| 80A38 | A | 38 | 1-3/16" | 17.2 | |
| 80A39 | A | 39 | 1-3/16" | 17.9 | |
| 80A40 | A | 40 | 1-3/16" | 18.9 | |
| 80A41 | A | 41 | 1-1/4" | 21.0 | |
| 80A42 | A | 42 | 1-1/4" | 21.8 | |
| 80A43 | A | 43 | 1-1/4" | 23.6 | |
| 80A44 | A | 44 | 1-1/4" | 24.3 | |

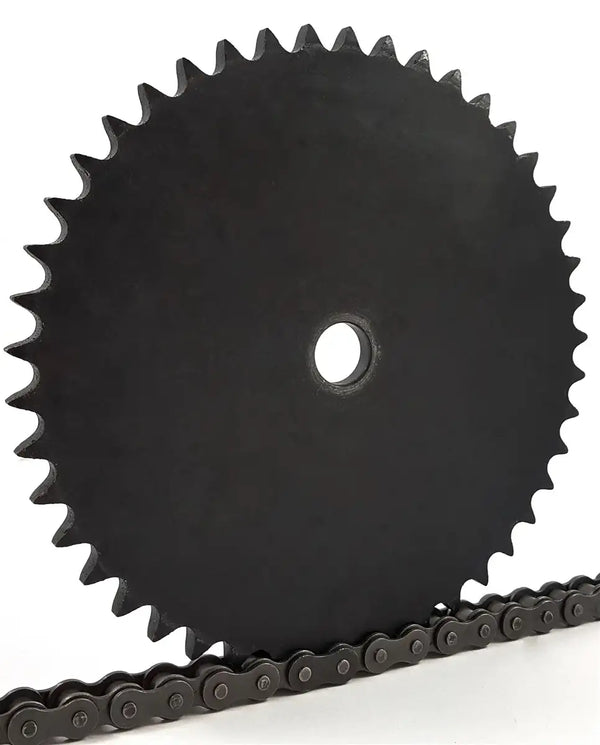

| 80A45 | A | 45 | 1-1/4" | 25.2 | |
| 80A46 | A | 46 | 1-1/4" | 26.6 | |
| 80A47 | A | 47 | 1-1/4" | 26.4 | |
| 80A48 | A | 48 | 1-1/4" | 27.8 | |
| 80A49 | A | 49 | 1-1/4" | 28.9 | |
| 80A50 | A | 50 | 1-1/4" | 30.9 | |
| 80A51 | A | 51 | 1-1/4" | 32.2 | |
| 80A52 | A | 52 | 1-1/4" | 33.0 | |
| 80A53 | A | 53 | 1-1/4" | 34.9 | |
| 80A54 | A | 54 | 1-1/4" | 36.6 | |
| 80A55 | A | 55 | 1-1/4" | 37.5 | |
| 80A56 | A | 56 | 1-1/4" | 39.4 | |
| 80A57 | A | 57 | 1-1/4" | 40.4 | |
| 80A58 | A | 58 | 1-1/4" | 41.3 | |
| 80A59 | A | 59 | 1-1/4" | 42.9 | |
| 80A60 | A | 60 | 1-1/4" | 45.3 | |
| 80A65 | A | 65 | 1-1/4" | 52.2 | |
| 80A70 | A | 70 | 1-1/2" | 59.8 | |
| 80A72 | A | 72 | 1-1/2" | 65.7 | |
| 80A76 | A | 76 | 1-1/2" | 70.2 | |
| 80A80 | A | 80 | 1-1/2" | 79.6 | |
| 80A84 | A | 84 | 1-1/2" | 86.1 | |
| 80A90 | A | 90 | 1-1/2" | 101.0 | |
| 80A96 | A | 96 | 1-1/2" | 120.0 | |
| 80A112 | A | 112 | 1-1/2" | 165.0 |
80 B-Hub Sprockets
|
Size
|
Type
|
Tooth Count
|
Stock Bore
|
Max. Recommended Bore
|
Hub Diameter
|
Length Thru Bore
|
Weight (LBS)
|
|---|---|---|---|---|---|---|---|
| 80B8 | B | 8 | 1" | 1" | 1-15/16" | 1-5/8" | 1.4 |
| 80B9 | B | 9 | 1" | 1-5/16" | 2-1/4" | 1-5/8" | 1.6 |
| 80B10 | B | 10 | 1" | 1-1/2" | 2-9/16" | 1-5/8" | 2.2 |
| 80B11 | B | 11 | 1" | 1-5/8" | 2-13/16" | 1-5/8" | 3.2 |
| 80B12 | B | 12 | 1" | 1-7/8" | 3-1/8" | 1-5/8" | 3.4 |
| 80B13 | B | 13 | 1" | 2" | 3" | 1-1/2" | 3.5 |
| 80B14 | B | 14 | 1" | 2-1/4" | 3-1/4" | 1-1/2" | 4.1 |
| 80B15 | B | 15 | 1" | 2-1/2" | 3-13/16" | 1-1/2" | 5.3 |
| 80B16 | B | 16 | 1" | 2-3/4" | 4" | 1-1/2" | 5.9 |
| 80B17 | B | 17 | 1" | 2-3/4" | 4" | 1-1/2" | 6.6 |
| 80B18 | B | 18 | 1" | 2-3/4" | 4-1/4" | 1-1/2" | 7.3 |
| 80B19 | B | 19 | 1" | 2-3/4" | 4-1/4" | 1-1/2" | 7.8 |
| 80B20 | B | 20 | 1" | 2-3/4" | 4-1/4" | 1-1/2" | 8.4 |
| 80B21 | B | 21 | 1" | 2-3/4" | 4-1/4" | 1-1/2" | 9.4 |
| 80B22 | B | 22 | 1" | 2-3/4" | 4-1/4" | 1-1/2" | 10.0 |
| 80B23 | B | 23 | 1" | 2-3/4" | 4-1/4" | 1-1/2" | 10.7 |
| 80B24 | B | 24 | 1" | 2-3/4" | 4-1/4" | 1-1/2" | 11.3 |
| 80B25 | B | 25 | 1" | 2-3/4" | 4-1/4" | 1-1/2" | 11.9 |
| 80B26 | B | 26 | 1-1/4" |
3-1/4" | 4-1/4" | 2" | 14.3 |
| 80B27 | B | 27 | 1-1/4" | 3-1/4" | 4-3/4" | 2" | 15.4 |
| 80B28 | B | 28 | 1-1/4" | 3-1/4" | 4-3/4" | 2" | 16.0 |
| 80B29 | B | 29 | 1-3/16" | 3-1/4" | 4-3/4" | 2" | 17.1 |
| 80B30 | B | 30 | 1-3/16" | 3-1/4" | 4-3/4" | 2" | 17.4 |
| 80B31 | B | 31 | 1-3/16" | 3-1/4" | 4-3/4" | 2" | 18.7 |
| 80B32 | B | 32 | 1-3/16" | 3-1/4" | 4-3/4" | 2" | 19.5 |
| 80B33 | B | 33 | 1-3/16" | 3-1/4" | 4-3/4" | 2" | 19.6 |
| 80B34 | B | 34 | 1-3/16" | 3-1/4" | 4-3/4" | 2" | 21.3 |
| 80B35 | B | 35 | 1-3/16" | 3-1/4" | 4-3/4" | 2" | 22.1 |
| 80B36 | B | 36 | 1-3/16" | 3-1/4" | 4-3/4" | 2" | 23.1 |
| 80B37 | B | 37 | 1-3/16" | 3-1/4" | 4-3/4" | 2" | 23.8 |
| 80B38 | B | 38 | 1-3/16" | 3-1/4" | 4-3/4" | 2" | 24.7 |
| 80B39 | B | 39 | 1-3/16" | 3-1/4" | 4-3/4" | 2" | 25.6 |
| 80B40 | B | 40 | 1-3/16" | 3-1/4" | 4-3/4" | 2" | 26.7 |
| 80B41 | B | 41 | 1-1/4" | 3-1/4" | 4-3/4" | 2" | 27.8 |
| 80B42 | B | 42 | 1-1/4" | 3-1/4" | 4-3/4" | 2'' | 28.7 |
| 80B43 | B | 43 | 1-1/4" | 3-1/4" | 4-3/4" | 2'' | 29.4 |
| 80B44 | B | 44 | 1-1/4" | 3-1/4" | 4-3/4" | 2'' | 29.9 |
| 80B45 | B | 45 | 1-1/4" | 3-1/4" | 4-3/4" | 2'' | 31.4 |
| 80B46 | B | 46 | 1-1/4" | 3-1/4" | 4-3/4" | 2'' | 33.1 |
| 80B47 | B | 47 | 1-1/4" | 3-1/4" | 4-3/4" | 2'' | 34.0 |
| 80B48 | B | 48 | 1-1/4" | 3-1/4" | 4-3/4" | 2'' | 35.5 |
| 80B49 | B | 49 | 1-1/4" | 3-1/4" | 4-3/4" | 2'' | 35.8 |
| 80B50 | B | 50 | 1-1/4" | 3-1/4" | 4-3/4" | 2'' | 37.3 |
| 80B51 | B | 51 | 1-1/4" | 3-1/4" | 4-3/4" | 2'' | 38.6 |
| 80B52 | B | 52 | 1-1/4" | 3-1/4" | 4-3/4" | 2'' | 39.4 |
| 80B53 | B | 53 | 1-1/4" | 3-1/4" | 4-3/4" | 2'' | 41.3 |
| 80B54 | B | 54 | 1-1/4" | 3-1/2" | 5-1/4" | 2'' | 44.7 |
| 80B55 | B | 55 | 1-1/4" | 3-1/2" | 5-1/4" | 2'' | 45.6 |
| 80B56 | B | 56 | 1-1/4" | 3-1/2" | 5-1/4" | 2'' | 47.5 |
| 80B57 | B | 57 | 1-1/4" | 3-1/2" | 5-1/4" | 2'' | 48.5 |
| 80B58 | B | 58 | 1-1/4" | 3-1/2" | 5-1/4" | 2'' | 50.5 |
| 80B59 | B | 59 | 1-1/4" | 3-1/2" | 5-1/4" | 2'' | 52.1 |
| 80B60 | B | 60 | 1-1/4" | 3-1/2" | 5-1/4" | 2'' | 54.5 |
| 80B65 | B | 65 | 1-1/4" | 3-1/2" | 5-1/4" | 2" | 61.8 |
80 C-Hub Sprockets
| Sprocket Size | Tooth Count | Type | Outside Diameter | Stock Bore | Recommend Max. Bore | Hub Diameter | Length Thru Bore | Weight (LBS) |
|---|---|---|---|---|---|---|---|---|
| 80C11 | 11 | C | 4.010 | 1'' | 1-5/8" | 2-29/32'' | 2-3/8" | 3.87 |
| 80C12 | 12 | C | 4.330 | 1'' | 1-7/8" | 3-1/8'' | 2-3/8" | 4.31 |
| 80C13 | 13 | C | 4.660 | 1'' | 2" | 3-1/64'' | 2-3/8" | 5.32 |
| 80C14 | 14 | C | 4.980 | 1'' | 2-1/4" | 3-11/32'' | 2-3/8" | 6.44 |
| 80C15 | 15 | C | 5.300 | 1'' | 2-1/2" | 3-13/16'' | 2-3/8" | 7.75 |
| 80C16 | 16 | C | 5.630 | 1'' | 2-3/4" | 4'' | 2-3/8" | 8.81 |
| 80C70 | 70 | C | 22.870 | 1-1/2" | 4-1/4" | 6-1/4" | 3-1/2" | 75.7 |
| 80C72 | 72 | C | 23.500 | 1-1/2" | 4-1/4" | 6-1/4" | 3-1/2" | 81.4 |
| 80C76 | 76 | C | 24.780 | 1-1/2" | 4-1/4" | 6-1/4" | 3-1/2" | 87.8 |
| 80C80 | 80 | C | 26.050 | 1-1/2" | 4-1/4" | 6-1/4" | 3-1/2" | 89.9 |
| 80C84 | 84 | C | 27.330 | 1-1/2" | 4-1/4" | 6-1/4" | 3-1/2" | 99.2 |
| 80C90 | 90 | C | 29.240 | 1-1/2" | 4-1/4" | 6-1/4" | 31/2" | 106.0 |
| 80C96 | 96 | C | 31.150 | 1-1/2" | 4-1/4" | 6-1/4" | 3-1/2" | 117.0 |
| 80C112 | 112 | C | 36.240 | 1-1/2" | 4-1/4" | 6-1/4" | 3-1/2" | 154.0 |
#80 QD Sprockets
| Sprocket Size | Tooth Count | Bushing | Outside Diameter | Pitch Diameter | Type | Max. Bore | Dimension (L1) | Dimension (L2) | Dimension (C) | Dimension (Y) | Dimension (P) | Dimension (G) | Dimension (T) | Weight (LBS) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 80SH11 | 11 | SH | 4.010 | 3.550 | B | 1-5/8" | 1-7/16" | 1-7/16" | 2-11/16" | 21/32" | - | 15/64" | 0.575 | 1.0 |
| 80SH12 | 12 | SH | 4.330 | 3.864 | B | 1-5/8" | 1-7/16" | 1-7/16" | 2-11/16" | 21/32" | - | 15/64" | 0.575 | 1.4 |
| 80SDS13 | 13 | SDS | 4.660 | 4.179 | B | 2'' | 1-1/2" | 1-1/2" | 3-3/16" | 47/64'' | - | 11/64" | 0.575 | 1.5 |
| 80SDS14 | 14 | SDS | 4.980 | 4.494 | B | 2'' | 1-1/2" | 1-1/2" | 3-3/16" | 47/64'' | - | 11/64" | 0.575 | 1.8 |
| 80SK15 | 15 | SK | 5.300 | 4.810 | B | 2-5/8" | 2-1/8" | 2-1/8" | 3-7/8" | 1-19/64" | - | 21/32" | 0.575 | 2.5 |
| 80SK16 | 16 | SK | 5.630 | 5.126 | B | 2-5/8" | 2-1/8" | 2-1/8" | 3-7/8" | 1-19/64" | - | 21/32" | 0.575 | 3.1 |
| 80SK17 | 17 | SK | 5.950 | 5.442 | B | 2-5/8" | 2-1/8" | 2-1/8" | 3-7/8" | 1-19/64" | - | 21/32" | 0.575 | 3.5 |
| 80SK18 | 18 | SK | 6.270 | 5.759 | B | 2-5/8" | 2-1/8" | 2-1/8" | 3-7/8" | 1-19/64" | - | 21/32" | 0.575 | 3.9 |
| 80SK19 | 19 | SK | 6.590 | 6.076 | B | 2-5/8" | 2-1/8" | 2-1/8" | 3-7/8" | 1-19/64" | - | 21/32" | 0.575 | 4.4 |
| 80SF20 | 20 | SF | 6.910 | 6.392 | B | 2-15/16" | 2-1/4" | 2-1/4" | 4-5/8" | 1-27/64'' | - | 21/32" | 0.575 | 5.3 |
| 80SF21 | 21 | SF | 7.240 | 6.710 | B | 2-15/16" | 2-1/4" | 2-1/4" | 4-5/8" | 1-27/64'' | - | 21/32" | 0.575 | 5.7 |
| 80SF22 | 22 | SF | 7.560 | 7.027 | B | 2-15/16" | 2-1/4" | 2-1/4" | 4-5/8" | 1-27/64'' | - | 21/32" | 0.575 | 6.3 |
| 80SF23 | 23 | SF | 7.880 | 7.344 | B | 2-15/16" | 2-1/4" | 2-1/4" | 4-5/8" | 1-27/64'' | - | 21/32" | 0.575 | 6.8 |
| 80SF24 | 24 | SF | 8.200 | 7.661 | B | 2-15/16" | 2-1/4" | 2-1/4" | 4-5/8" | 1-27/64'' | - | 21/32" | 0.575 | 7.5 |
| 80SF25 | 25 | SF | 8.520 | 7.979 | B | 2-15/16" | 2-1/4" | 2-1/4" | 4-5/8" | 1-27/64'' | - | 21/32" | 0.575 | 8.0 |
| 80SF26 | 26 | SF | 8.840 | 8.296 | B | 2-15/16" | 2-1/4" | 2-1/4" | 4-5/8" | 1-27/64'' | - | 21/32" | 0.575 | 8.6 |
| 80SF27 | 27 | SF | 9.160 | 8.614 | B | 2-15/16" | 2-1/4" | 2-1/4" | 4-5/8" | 1-27/64'' | - | 21/32" | 0.575 | 9.4 |
| 80SF28 | 28 | SF | 9.480 | 8.931 | B | 2-15/16" | 2-1/4" | 2-1/4" | 4-5/8" | 1-27/64'' | - | 21/32" | 0.575 | 10.2 |
| 80SF30 | 30 | SF | 10.110 | 9.567 | B | 2-15/16" | 2-1/4" | 2-1/4" | 4-5/8" | 1-27/64'' | - | 21/32" | 0.575 | 11.3 |
| 80SF32 | 32 | SF | 10.750 | 10.202 | B | 2-15/16" | 2-1/4" | 2-1/4" | 4-5/8" | 1-27/64'' | - | 21/32" | 0.575 | 13.0 |
| 80SF33 | 33 | SF | 11.070 | 10.520 | B | 2-15/16" | 2-1/4" | 2-1/4" | 4-5/8" | 1-27/64'' | - | 21/32" | 0.575 | 13.5 |
| 80SF34 | 34 | SF | 11.390 | 10.838 | B | 2-15/16" | 2-1/4" | 2-1/4" | 4-5/8" | 1-27/64'' | - | 21/32" | 0.575 | 14.1 |
| 80SF35 | 35 | SF | 11.710 | 11.156 | B | 2-15/16" | 2-1/4" | 2-1/4" | 4-5/8" | 1-27/64'' | - | 21/32" | 0.575 | 15.5 |
| 80SF36 | 36 | SF | 12.030 | 11.474 | B | 2-15/16" | 2-1/4" | 2-1/4" | 4-5/8" | 1-27/64'' | - | 21/32" | 0.575 | 16.9 |
| 80SF40 | 40 | SF | 13.310 | 12.746 | B | 2-15/16" | 2-1/4" | 2 -1/4" | 4-5/8" | 1-27/64'' | - | 21/32" | 0.575 | 20.6 |
| 80SF42 | 42 | SF | 13.940 | 13.382 | B | 2-15/16" | 2-1/4" | 2-1/4" | 4-5/8" | 1-27/64'' | - | 21/32" | 0.575 | 22.4 |
| 80SF45 | 45 | SF | 14.900 | 14.336 | B | 2-15/16" | 2-1/4" | 2-1/4" | 4-5/8" | 1-27/64'' | - | 21/32" | 0.575 | 25.1 |
| 80SF48 | 48 | SF | 15.860 | 15.290 | B | 2-15/16" | 2-1/4" | 2-1/4" | 4-5/8" | 1-27/64'' | - | 21/32" | 0.575 | 28.6 |
| 80SF54 | 54 | SF | 17.770 | 17.198 | C | 2-15/16" | 2-1/4" | 2-1/4" | 4-5/8" | 1-27/64'' | - | 21/32" | 0.575 | 36.8 |
| 80SF60 | 60 | SF | 19.680 | 19.107 | C | 2-15/16" | 2-1/4" | 2-1/4" | 4-5/8" | 1-27/64'' | - | 21/32" | 0.575 | 45.8 |
| 80E70 | 70 | E | 22.870 | 22.289 | C | 3-1/2" | 2-5/8'' | 2-15/16'' | 6'' | 7/8" | 1-3/16" | 1-3/64'' | 0.575 | 55.6 |
| 80E72 | 72 | E | 23.500 | 22.926 | C | 3-1/2" | 2-5/8'' | 2-15/16'' | 6'' | 7/8" | 1-3/16" | 1-3/64'' | 0.575 | 59.3 |
| 80E80 | 80 | E | 26.050 | 25.471 | C | 3-1/2" | 2-5/8'' | 2-15/16'' | 6'' | 7/8" | 1-3/16" | 1-3/64'' | 0.575 | 69.2 |
| 80E84 | 84 | E | 27.330 | 26.744 | C | 3-1/2" | 2-5/8'' | 2-15/16'' | 6'' | 7/8" | 1-3/16" | 1-3/64'' | 0.575 | 74.9 |
| 80E96 | 96 | E | 31.150 | 30.563 | C | 3-1/2" | 2-5/8'' | 2-15/16'' | 6'' | 7/8" | 1-3/16" | 1-3/64'' | 0.575 | 97.5 |
| 80F112 | 112 | F | 36.240 | 35.655 | C | 3-15/16" | 2-5/8'' | 2-15/16'' | 6-5/8'' | 1'' | 2-1/16 | 1-58/64" | 0.575 | 134.0 |
#80 Taper Bushed Sprockets
| Sprocket Size | Tooth Count | Bushing | Outside Diameter | Pitch Diameter | Max. Bore | Dimension (L) | Dimension (C) | Type | Weight (LBS) |
|---|---|---|---|---|---|---|---|---|---|
| 80BTB10 | 10 | 1215 | 3.678 | 3.236 | 1-1/4" | 1-1/2" | 2-3/8'' | B | 1.1 |
| 80BTB11 | 11 | 1215 | 4.006 | 3.549 | 1-1/4" | 1-1/2" | 2-15/32'' | B | 1.5 |
| 80BTB12 | 12 | 1615 | 4.332 | 3.864 | 1-5/8" | 1-1/2" | 3'' | B | 1.8 |
| 80BTB13 | 13 | 1615 | 4.657 | 4.179 | 1-5/8" | 1-1/2" | 3'' | B | 2.3 |
| 80BTB14 | 14 | 1615 | 4.982 | 4.494 | 1-5/8" | 1-1/2" | 3-11/32'' | B | 2.5 |
| 80BTB15 | 15 | 1615 | 5.305 | 4.810 | 1-5/8" | 1-1/2" | 3-1/2" | B | 2.7 |
| 80BTB16 | 16 | 2012 | 5.627 | 5.126 | 2'' | 1-1/4'' | 4'' | B | 2.8 |
| 80BTB17 | 17 | 2012 | 5.950 | 5.442 | 2'' | 1-1/4'' | 4'' | B | 3.1 |
| 80BTB18 | 18 | 2012 | 6.271 | 5.759 | 2'' | 1-1/4'' | 3-9/16'' | B | 2.6 |
| 80BTB19 | 19 | 2012 | 6.593 | 6.076 | 2'' | 1-1/4'' | 3-9/16'' | B | 4.1 |
| 80BTB20 | 20 | 2517 | 6.914 | 6.392 | 2-1/2" | 1-3/4" | 4-1/4" | B | 5.5 |
| 80BTB21 | 21 | 2517 | 7.235 | 6.710 | 2-1/2" | 1-3/4" | 4-1/4" | B | 6.0 |
| 80BTB22 | 22 | 2517 | 7.555 | 7.027 | 2-1/2" | 1-3/4" | 4-1/4" | B | 6.5 |
|
80BTB23 |
23 | 2517 | 7.875 | 7.344 | 2-1/2" | 1-3/4" | 4-1/4" | B | 7.0 |
| 80BTB24 | 24 | 2517 | 8.196 | 7.661 | 2-1/2" | 1-3/4" | 41/4" | B | 7.5 |
| 80BTB25 | 25 | 2517 | 8.516 | 7.979 | 2-1/2" | 1-3/4" | 4-1/4" | B | 8.1 |
| 80BTB26 | 26 | 2517 | 8.836 | 8.296 | 2-1/2" | 1-3/4" | 4-1/4" | B | 8.8 |
| 80BTB27 | 27 | 2517 | 9.156 | 8.614 | 2-1/2" | 1-3/4" | 4-1/4" | B | 9.0 |
| 80BTB28 | 28 | 2517 | 9.475 | 8.931 | 2-1/2" | 1-3/4" | 4-1/4" | B | 9.5 |
| 80BTB30 | 30 | 2517 | 10.114 | 9.567 | 2-1/2" | 1-3/4" | 4-1/4" | B | 11.5 |
| 80BTB32 | 32 | 2517 | 10.753 | 10.202 | 2-1/2" | 1-3/4" | 4-1/4" | B | 12.0 |
| 80BTB35 | 35 | 2517 | 11.711 | 11.156 | 2-1/2" | 1-3/4" | 4-1/4" | B | 15.2 |
| 80BTB36 | 36 | 2517 | 12.030 | 11.474 | 2-1/2" | 1-3/4" | 4-1/4" | B | 17.0 |
| 80BTB40 | 40 | 2517 | 13.306 | 12.746 | 2-1/2" | 1-3/4" | 4-1/4" | B | 21.0 |
| 80BTB45 | 45 | 2517 | 14.901 | 14.336 | 2-1/2" | 1-3/4" | 4-1/4" | B | 26.5 |
| 80BTB48 | 48 | 2517 | 15.857 | 15.290 | 2-1/2" | 1-3/4" | 4-1/4" | B | 29.5 |
| 80BTB54 | 54 | 2517 | 17.769 | 17.198 | 2-1/2" | 1-3/4" | 4-1/4" | B | 38.5 |
| 80BTB60 | 60 | 2517 | 19.681 | 19.107 | 2-1/2" | 1-3/4" | 4-1/4" | B | 45.0 |
| 80BTB70 | 70 | 3020 | 22.867 | 22.289 | 3'' | 2'' | 5-1/4'' | B | 52.3 |
| 80BTB80 | 80 | 3020 | 26.052 | 25.471 | 3'' | 2'' | 5-1/4'' | B | 69.2 |
#80 Taper Bushed Sprockets
| Sprocket Size | Tooth Count | Bushing | Outside Diameter | Pitch Diameter | Type | Max. Bore | Dimension (OL) | Dimension (L) | Dimension (C) | Dimension (H) | Dimension (P) | Dimension (T) | Weight (LBS) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 80H10H | 10 | H | 3.680 | 3.236 | 3 | 1-1/2'' | 2-3/32'' | 1-1/4'' | 21/32'' | 2-1/2'' | 1-21/64'' | 0.575 | 2.0 |
| 80H11H | 11 | H | 4.010 | 3.550 | 3 | 1-1/2'' | 1-1/2'' | 1-1/4'' | 1/16'' | 2-1/2'' | 3/4'' | 0.575 | 1.3 |
| 80P11H | 11 | P | 4.010 | 3.550 | 4 | 1-3/4'' | 2-11/32 | 1-15/16'' | 5/32'' | 3'' | 1-17/32'' | 0.575 | 1.6 |
| 80P12H | 12 | P1 | 4.330 | 3.864 | 4 | 1-3/4'' | 2-3/16'' | 1-15/16'' | 0 | 3'' | 1-3/8'' | 0.575 | 2.0 |
| 80P13H | 13 | P1 | 4.660 | 4.179 | 4 | 1-3/4'' | 2-3/16'' | 1-15/16'' | 0 | 3'' | 1-3/8'' | 0.575 | 2.4 |
| 80P14H | 14 | P1 | 4.980 | 4.494 | 4 | 1-3/4'' | 2-3/16'' | 1-15/16'' | 0 | 3'' | 1-3/8'' | 0.575 | 2.6 |
| 80Q14H | 14 | Q1 | 4.980 | 4.494 | 4 | 2-11/16'' | 2-25/32'' | 2-1/2'' | 0 | 4-1/8'' | 1-15/16 | 0.575 | 2.9 |
| 80P15H | 15 | P1 | 5.300 | 4.810 | 4 | 1-3/4'' | 2-3/16'' | 1-15/16'' | 0 | 3 | 1-3/8'' | 0.575 | 3.0 |
| 80Q15H | 15 | Q1 | 5.300 | 4.810 | 4 | 2-11/16'' | 2-25/32'' | 1/2'' | 0 | 4-1/8'' | 1-15/16'' | 0.575 | 3.4 |
| 80P16H | 16 | P1 | 5.630 | 5.126 | 4 | 1-3/4'' | 2-3/16'' | 1-15/16'' | 0 | 3'' | 1-3/8'' | 0.575 | 3.5 |
| 80Q16H | 16 | Q1 | 5.630 | 5.126 | 4 | 2-11/16'' | 2-25/32'' | 2-1/2'' | 0 | 4-1/8'' | 1-15/16 | 0.575 | 4.6 |
| 80P17H | 17 | P1 | 5.950 | 5.442 | 4 | 1-3/4'' | 2-3/16'' | 1-15/16'' | 0 | 3'' | 1-3/8'' | 0.575 | 3.8 |
| 80Q17H | 17 | Q1 | 5.950 | 5.442 | 4 | 2-11/16'' | 2-25/32'' | 2-1/2'' | 0 | 4-1/8'' | 1-15/16 | 0.575 | 5.3 |
| 80P18H | 18 | P1 | 6.270 | 5.759 | 4 | 1-3/4'' | 2-3/16'' | 1-15/16'' | 0 | 3'' | 1-3/8'' | 0.575 | 4.4 |
| 80Q18H | 18 | Q1 | 6.270 | 5.759 | 4 | 2-11/16'' | 2-25/32'' | 2-1/2'' | 0 | 4-1/8'' | 1-15/16 | 0.575 | 6.0 |
| 80P19H | 19 | P1 | 6.590 | 6.076 | 4 | 1-3/4'' | 2-3/16'' | 1-15/16'' | 0 | 3 | 1-3/8'' | 0.575 | 4.9 |
| 80Q19H | 19 | Q1 | 6.590 | 6.076 | 4 | 2-11/16'' | 2-25/32'' | 2-1/2'' | 0 | 4-1/8'' | 1-15/16" | 0.575 | 6.5 |
| 80Q20H | 20 | Q1 | 6.910 | 6.392 | 4 | 2-11/16'' | 2-25/32'' | 2-1/2'' | 0 | 4-1/8'' | 1-15/16" | 0.575 | 7.0 |
| 80Q21H | 21 | Q1 | 7.240 | 6.710 | 4 | 2-11/16'' | 2-25/32'' | 2-1/2'' | 0 | 4-1/8'' | 1-15/16" | 0.575 | 7.3 |
| 80Q22H | 22 | Q1 | 7.560 | 7.027 | 4 | 2-11/16'' | 2-25/32'' | 2-1/2'' | 0 | 4-1/8'' | 1-15/16" | 0.575 | 8.2 |
| 80Q23H | 23 | Q1 | 7.880 | 7.344 | 4 | 2-11/16'' | 2-25/32'' | 2-1/2'' | 0 | 4-1/8'' | 1-15/16" | 0.575 | 8.8 |
| 80Q24H | 24 | Q1 | 8.200 | 7.661 | 4 | 2-11/16'' | 2-25/32'' | 2-1/2'' | 0 | 4-1/8'' | 1-15/16" | 0.575 | 9.1 |
| 80Q25H | 25 | Q1 | 8.520 | 7.979 | 4 | 2-11/16'' | 2-25/32'' | 2-1/2'' | 0 | 4-1/8'' | 1-15/16" | 0.575 | 9.6 |
| 80Q26H | 26 | Q1 | 8.840 | 8.296 | 4 | 2-11/16'' | 2-25/32'' | 2-1/2'' | 0 | 4-1/8'' | 1-15/16" | 0.575 | 10.6 |
| 80Q27H | 27 | Q1 | 9.160 | 8.614 | 4 | 2-11/16'' | 2-25/32'' | 2-1/2'' | 0 | 4-1/8'' | 1-15/16" | 0.575 | 10.9 |
| 80Q28H | 28 | Q1 | 9.480 | 8.931 | 4 | 2-11/16'' | 2-25/32'' | 2-1/2'' | 0 | 4-1/8'' | 1-15/16" | 0.575 | 12.4 |
| 80Q29H | 29 | Q1 | 9.800 | 9.249 | 4 | 2-11/16'' | 2-25/32'' | 2-1/2'' | 0 | 4-1/8'' | 1-15/16" | 0.575 | 12.6 |
| 80Q30H | 30 | Q1 | 10.110 | 9.567 | 4 | 2-11/16'' | 2-25/32'' | 2-1/2'' | 0 | 4-1/8'' | 1-15/16" | 0.575 | 13.4 |
| 80Q31 | 31 | Q1 | 10.430 | 9.885 | 4 | 2-11/16'' | 2-25/32'' | 2-1/2'' | 0 | 4-1/8'' | 1-15/16" | 0.575 | 13.9 |
| 80Q32 | 32 | Q1 | 10.750 | 10.202 | 4 | 2-11/16'' | 2-25/32'' | 2-1/2'' | 0 | 4-1/8'' | 1-15/16" | 0.575 | 14.8 |
| 80Q33 | 33 | Q1 | 11.070 | 10.520 | 4 | 2-11/16'' | 2-25/32'' | 2-1/2'' | 0 | 4-1/8'' | 1-15/16" | 0.575 | 15.5 |
| 80Q34 | 34 | Q1 | 11.390 | 10.838 | 4 | 2-11/16'' | 2-25/32'' | 2-1/2'' | 0 | 4-1/8'' | 1-15/16" | 0.575 | 16.3 |
| 80Q35 | 35 | Q1 | 11.710 | 11.156 | 4 | 2-11/16'' | 2-25/32'' | 2-1/2'' | 0 | 4-1/8'' | 1-15/16" | 0.575 | 17.8 |
| 80Q36 | 36 | Q1 | 12.030 | 11.474 | 4 | 2-11/16'' | 2-25/32'' | 2-1/2'' | 0 | 4-1/8'' | 1-15/16" | 0.575 | 18.1 |
| 80R36 | 36 | R1 | 13.030 | 11.474 | 4 | 3-3/4'' | 3-5/32'' | 2-7/8'' | 0 | 5-3/8'' | 2-5/16' | 0.575 | 19.5 |
| 80Q37 | 37 | Q1 | 12.350 | 11.792 | 4 | 2-11/16'' | 2-25/32'' | 2-1/2'' | 0 | 4-1/8'' | 1-15/16" | 0.575 | 18.5 |
| 80Q38 | 38 | Q1 | 12.670 | 12.110 | 4 | 2-11/16'' | 2-25/32'' | 2-1/2'' | 0 | 4-1/8'' | 1-15/16" | 0.575 | 20.0 |
| 80R39 | 39 | R1 | 12.990 | 12.428 | 4 | 3-3/4'' | 3-5/32'' | 2-7/8'' | 0 | 5-3/8'' | 2-5/16'' | 0.575 | 22.8 |
| 80Q40 | 40 | Q1 | 13.310 | 12.746 | 4 | 2-11/16'' | 2-25/32'' | 2-1/2'' | 0 | 4-1/8'' | 1-15/16" | 0.575 | 21.9 |
| 80R40 | 40 | R1 | 13.310 | 12.746 | 4 | 3-3/4'' | 3-5/32'' | 2-7/8'' | 0 | 5-3/8'' | 2-5/16'' | 0.575 | 23.4 |
| 80R41 | 41 | R1 | 13.630 | 13.064 | 4 | 3-3/4'' | 3-5/32'' | 2-7/8'' | 0 | 5-3/8'' |
2-5/16'' | 0.575 | 23.9 |
| 80Q42 | 42 | Q1 | 13.940 | 13.382 | 4 | 2-11/16'' | 2-25/32'' | 2-1/2'' | 0 | 4-1/8'' | 1-15/16" | 0.575 | 23.8 |
| 80R42 | 42 | R1 | 13.940 | 13.382 | 4 | 3-3/4'' | 3-5/32'' | 2-7/8'' | 0 | 5-3/8'' | 2-5/16'' | 0.575 | 25.4 |
| 80R44 | 44 | R1 | 14.580 | 14.018 | 4 | 3-3/4'' | 3-5/32'' | 2-7/8'' | 0 | 5-3/8'' | 2-5/16'' | 0.575 | 27.2 |
| 80Q45 | 45 | Q1 | 14.900 | 14.336 | 4 | 2-11/16'' | 2-25/32'' | 2-1/2'' | 0 | 4-1/8'' | 1-15/16 | 0.575 | 27.8 |
| 80R45 | 45 | R1 | 14.900 | 14.336 | 4 | 3-3/4'' | 3-5/32'' | 2-7/8'' | 0 | 5-3/8'' | 2-5/16'' | 0.575 | 28.5 |
| 80R47 | 47 | R1 | 15.540 | 14.972 | 4 | 3-3/4'' | 3-5/32'' | 2-7/8'' | 0 | 5-3/8'' | 2-5/16'' | 0.575 | 31.0 |
| 80Q48 | 48 | Q1 | 15.860 | 15.290 | 4 | 2-11/16'' | 2-25/32'' | 2-1/2'' | 0 | 4-1/8'' | 1-15/16'' | 0.575 | 30.8 |
| 80R48 | 48 | R1 | 15.860 | 15.290 | 4 | 3-3/4'' | 3-5/32'' | 2-7/8'' | 0 | 5-3/8'' | 2-5/16'' | 0.575 | 32.3 |
| 80R50 | 50 | R1 | 16.500 | 15.926 | 4 | 3-3/4'' | 3-5/32'' | 2-7/8'' | 0 | 5-3/8'' | 2-5/16'' | 0.575 | 35.1 |
| 80Q54 | 54 | Q1 | 17.770 | 17.198 | 4 | 2-11/16'' | 2-25/32'' | 2-1/2'' | 0 | 4-1/8'' | 1-15/16'' | 0.575 | 38.5 |
| 80R54 | 54 | R1 | 17.770 | 17.198 | 4 | 3-3/4'' | 3-5/32'' | 2-7/8'' | 0 | 5-3/8'' | 2-5/16'' | 0.575 | 40.8 |
| 80R56 | 56 | R1 | 18.410 | 17.825 | 4 | 3-3/4'' | 3-5/32'' | 2-7/8'' | 0 | 5-3/8'' | 2-5/16'' | 0.575 | 44.0 |
| 80Q60 | 60 | Q1 | 19.680 | 19.107 | 4 | 2-11/16'' | 2-25/32'' | 2-1/2'' | 0 | 4-1/8'' | 1-15/16'' | 0.575 | 46.8 |
| 80R60 | 60 | R1 | 19.680 | 19.107 | 4 | 3-3/4'' | 3-5/32'' | 2-7/8'' | 0 | 5-3/8'' | 2-5/16'' | 0.575 | 47.3 |
| 80Q70 | 70 | Q1 | 22.870 | 22.289 | 4 | 2-11/16'' | 2-25/32'' | 2-1/2'' | 0 | 4-1/8'' | 2-5/16'' | 0.575 | 60.0 |
| 80R70 | 70 | R1 | 22.870 | 22.289 | 4 | 3-3/4'' | 3-5/32'' | 2-7/8'' | 0 | 5-3/8'' | 2-5/16'' | 0.575 | 63.5 |
| 80Q72 | 72 | Q1 | 23.500 | 22.926 | 5 | 2-11/16'' | 2-25/32'' | 2-1/2'' | 0 | 4-1/8'' | 2-5/16'' | 0.575 | 67.5 |
| 80R72 | 72 | R1 | 23.500 | 22.296 | 5 | 3-3/4'' | 2-5/32'' | 2-7/8'' | 1-7/16'' | 5-3/8'' | 7/8'' | 0.575 | 69.4 |
| 80R80 | 80 | R1 | 26.050 | 25.471 | 5 | 3-3/4'' | 2-5/32'' | 2-7/8'' | 1-7/16'' | 5-3/8'' | 7/8'' | 0.575 | 85.0 |
| 80R84 | 84 | R1 | 27.330 | 26.744 | 5 | 3-3/4'' | 2-5/32'' | 2-7/8'' | 1-7/16'' | 5-3/8'' | 7/8'' | 0.575 | 90.0 |
| 80R96 | 96 | R1 | 31.150 | 30.563 | 5 | 3-3/4'' | 2-5/32'' | 2-7/8'' | 1-7/16'' | 5-3/8'' | 7/8'' | 0.575 | 110.0 |
| 80S112 | 112 | S1 | 36.240 | 36.665 | 5 | 4-1/4'' | 4-3/4'' | 4-3/8'' | 2-3/4'' | 6-3/8'' | 1-1/8'' | 0.575 | 165.0 |
FAQs About #80 Roller Chain Sprockets from USA Roller Chain
What is a #80 roller chain sprocket?
A #80 roller chain sprocket is a toothed wheel machined to the ANSI 80 standard, with a 1 inch pitch (tooth-to-tooth spacing) to drive #80 roller chain. It transfers rotation from a motor or gearbox to the driven shaft. Browse the full range of roller chain sprockets for other chain sizes.
What chain fits a #80 sprocket?
A #80 sprocket is built for ANSI #80 roller chain, which has a 1 inch pitch and a 5/8 inch roller diameter. It should not be run with a different pitch such as #60 or #100. Pair it with matching #80 roller chain for a correct, long-wearing fit.
What hub and plate styles do #80 sprockets come in?
#80 sprockets are offered in several hub styles: Type A (flat plate, no hub) for bolting to a flange, Type B (hub on one side), and Type C (hub on both sides) for keyed shafts. Most are stocked as single-strand roller chain sprockets across a wide tooth-count range.
What bore options are available for #80 sprockets?
You can order #80 sprockets with a plain (stock) bore to machine yourself, a finished bore with a keyway and set screws, or a taper-lock or QD bushed hub for quick installation. Choose the bore that matches your shaft diameter and keyway.
What is a double #80 sprocket?
A double #80 sprocket has two rows of teeth to drive double-strand (duplex) #80 chain for roughly twice the load capacity of a single-strand drive. For multi-strand drives, see our double roller chain sprockets.
How do I choose the right number of teeth for a #80 sprocket?
Tooth count sets your speed ratio and the sprocket's pitch diameter: more teeth give a larger diameter, smoother running, and less chain wear, while fewer teeth give more torque and a more compact drive. Our sprocket size guide explains how to size the drive and driven sprockets.
We stock and supply a full line of high-quality ANSI #80 roller chain sprockets in a very wide range of configurations including; A-Plate, B-Hub, C-Hub, Idler, QD, Taper Bushed, Stainless Steel, Plastic, Single, Double, Double-Single, Triple, and more! We supply sprockets to a wide range of customers including; Re-Sellers, OEMs, large & small end users, and Government Entities. The #80 roller chain sprockets we offer exceed in quality, performance and working life due to the manufacturing standards that have been set for these sprockets. Additionally, we offer a line of 1045 Premium Hardened Steel Black-Oxide Coated #80 Sprockets for the toughest and most demanding applications. All of our #80 sprockets fully meet all ANSI standards to ensure a proper contact between the sprocket and roller chain. We also offer a full line of high quality #80 roller chain at some of the most competitive prices and widest selection in the industry. To get a quote on #80 roller chain sprockets or if you have any questions please contact us and we will be happy to assist you!
Phone: (407) 347-3519
Email: sales@usarollerchain.com
See What All We Offer "Here"!
Phone: (407) 347-3519
Email: sales@usarollerchain.com
See What All We Offer "Here"!
Frequently Asked Questions
-
If your order is less than $300, no problem! Please give us a call at 407-347-3519 or email Sales@usarollerchain.com, and we will be happy to assist you!
-
USA Roller Chain utilizes an extensive network of vendors and warehouses to ensure you get your items quickly! Our primary roller chain warehouse is located in Clermont, FL, but we have warehouses located all across the United States. Your order will be shipped from the closest warehouse to you that has your requested product in stock. This speeds up transit times and saves you money on shipping! If you have any questions about where an item will ship from, please CONTACT US
-
In-stock items are typically shipped out in 1-3 business days.Made-to-order item lead times vary from 1-2 days up to 14-20+ weeks, depending on the product. If you need your items urgently, please let us know, and we will do our best to meet your required delivery date! If you have any questions, please CONTACT US
-
If you are having an issue with your order, please CONTACT US as soon as possible so we can resolve it for you.
Most in-stock items can be returned within 30 days of the shipment date. MTO or Custom orders are not eligible for a return or refund. For a detailed explanation of our return policies, please click here.
-
Absolutely! We may be called "USA Roller Chain", but we ship worldwide! Please CONTACT US for Export/International quotes or orders.
