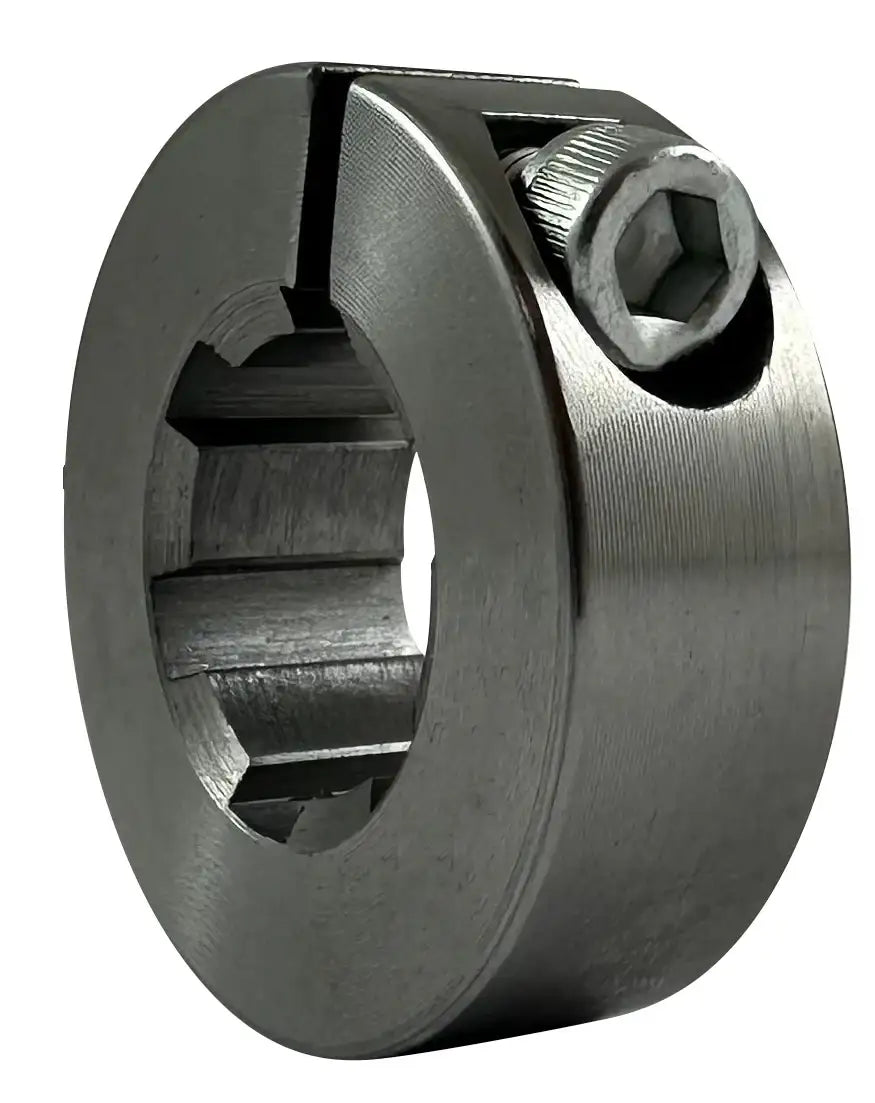

6 Splined Shaft Collar For 16mm Splined Shaft - C45 Steel

Alternative Views:

Our Price: $82.99

Availability: Usually Ships in 1 to 2 Weeks
Product Code: 64867400-COLLAR

Qty:

Description

Technical Specs

Our premium C45 steel 6-splined shaft collar for a 16mm splined shaft is crafted according to ISO and DIN 14 standards, precision-machined from high-strength C45 steel for optimal gripping and torque transmission. It features matching splines that align perfectly with the shaft, ensuring a secure grip. This design allows for effective torque transmission and prevents slippage, while accommodating axial movement if needed. Splined shaft collars are ideal for applications requiring precise positioning and secure attachment, such as in machinery, automotive systems, and various industrial equipment. For more information or to request a quote on our C45 steel 6-splined shaft collar, please contact our customer service team, and we'll be happy to assist you!

16mm Splined Shaft Collar Dimensions

Part #: 64867400
Material: C45 Steel
Profile: KN 13 X 16
Collar Version: 1
Dimension (A): 34mm
Dimension (d): 13mm
Dimension (L): 13mm
Dimension (R): 39.9mm
Screw: M5 X 14
Weight: 70 Grams
