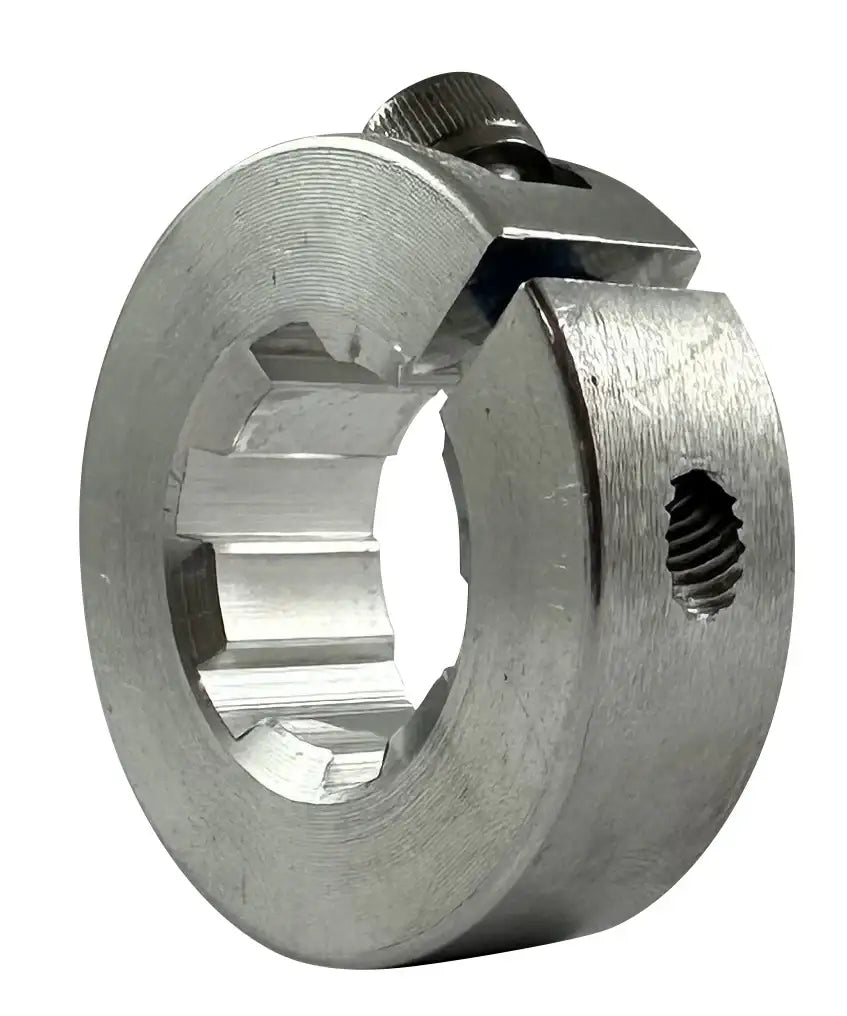

6 Splined Shaft Collar For 16mm Splined Shaft - Aluminium

Alternative Views:

Our Price: $81.99

Availability: Usually Ships in 1 to 2 Weeks
Product Code: 64862400-COLLAR

Qty:

Description

Technical Specs

Our high-quality aluminum 6-splined shaft collar, designed for a 16mm splined shaft, is built according to ISO and DIN 14 standards and precision-machined from high-grade aluminum for reduced weight and abrasion resistance. The collar features splines that perfectly align with the shaft, ensuring a secure grip. This design allows for effective torque transmission and prevents slippage, while permitting axial movement along the shaft if necessary. Splined shaft collars are ideal for applications requiring precise positioning and secure attachment, such as in machinery, automotive systems, and various industrial equipment. For more information or to request a quote on our aluminum 6-splined shaft collar, please contact our customer service team, and we'll be pleased to assist you!

16mm Splined Shaft Collar Dimensions

Part #: 64862400
Material: Aluminium
Profile: KN 13 X 16
Collar Version: 1
Dimension (A): 34mm
Dimension (d): 13mm
Dimension (L): 13mm
Dimension (R): 39.9mm
Screw: M5 X 14
Weight: 25 Grams
