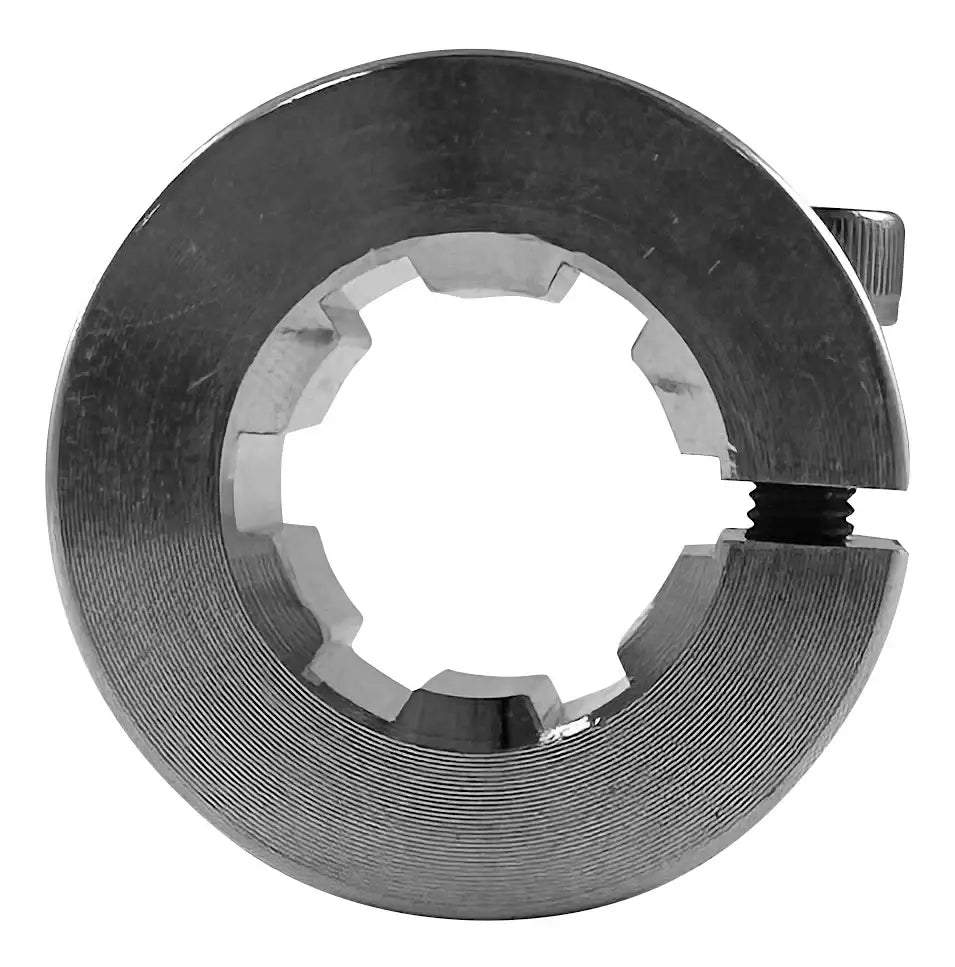

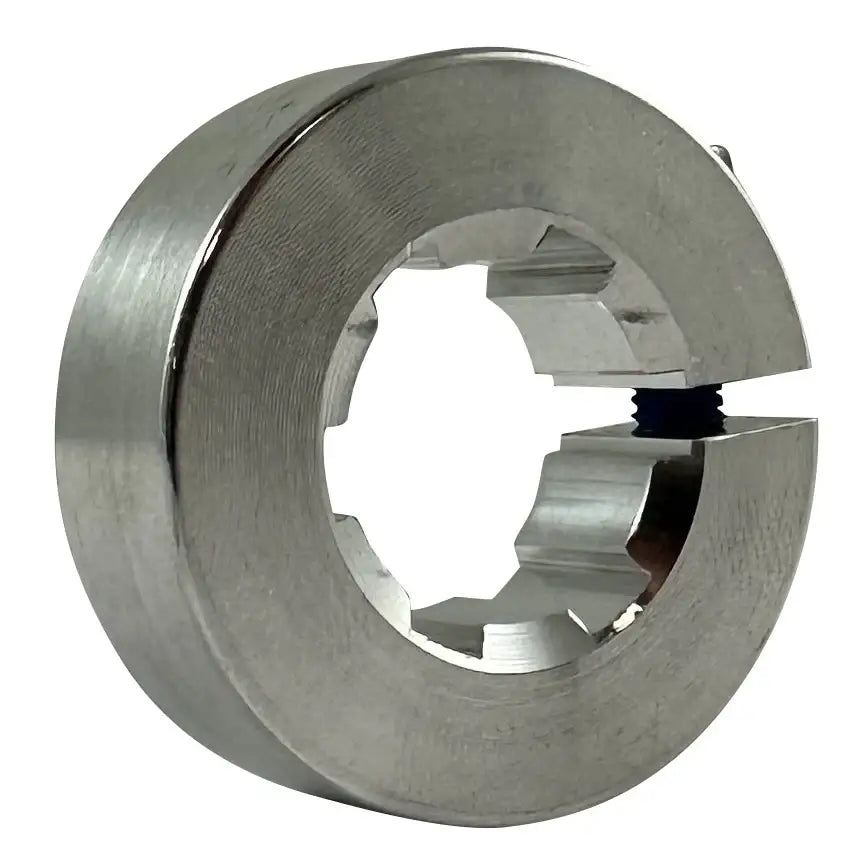

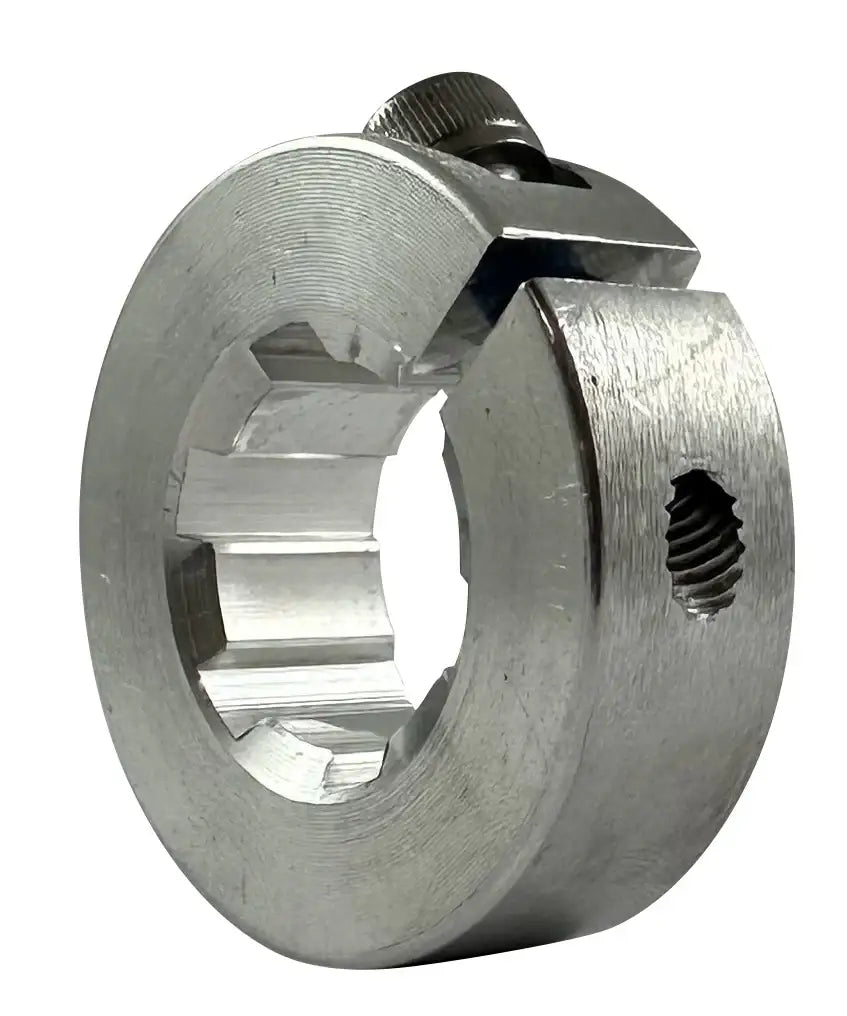

6 Splined Shaft Collar For 14mm Splined Shaft - Aluminium

Alternative Views:

Our Price: $58.99

Availability: Usually Ships in 1 to 2 Weeks
Product Code: 64862200-COLLAR

Qty:

Description

Technical Specs

Our premium aluminum 6 splined shaft collar for 14mm splined shaft is manufactured per ISO and DIN 14 specifications and precision machined from high-grade aluminum for reduced weight and abrasion resistance! The 14mm splined shaft collar itself also features matching splines that align with those on the shaft, allowing it to grip the shaft securely. This design enables the collar to transmit torque and prevent slippage, allowing axial movement along the shaft if needed. Splined shaft collars are often used in applications requiring precise positioning and secure attachment, such as in machinery, automotive systems, and various industrial equipment. For additional information or to get a quote on our aluminum 6 splined shaft collar for a 14mm splined shaft, contact our customer service team, and we will gladly assist you!

14mm Splined Shaft Collar Dimensions

Part #: 64862200
Material: Aluminium
Profile: KN 11 X 14
Collar Version: 1
Dimension (A): 30mm
Dimension (d): 11mm
Dimension (L): 11mm
Dimension (R): 34.7mm
Screw: M4 X 12
Weight: 17 Grams
