50BS24 Sprocket With 1-1/2" Finished Bore

50BS24 Sprocket With 1-1/2" Finished Bore

Note: Custom Cut to Length Chain Also Available
$46.99
$46.99
In Stock
On Sale Sold out
Product Code: 50BS24-1-12-SPROCKET
In Stock

Login to Request a Quote

Other Customers Viewed
50 Chain | ANSI 50 Roller Chain 10ft
50 Chain | ANSI 50 Roller Chain 10ft
Login
General Duty Plus #50 Roller Chain - 10ft Box
General Duty Plus #50 Roller Chain - 10ft Box
$59.99
Login
Premium #50 Roller Chain - 10ft Box | Premier Series Chain
Premium #50 Roller Chain - 10ft Box | Premier Series Chain
$114.99
Login
View full details
Description
Specification

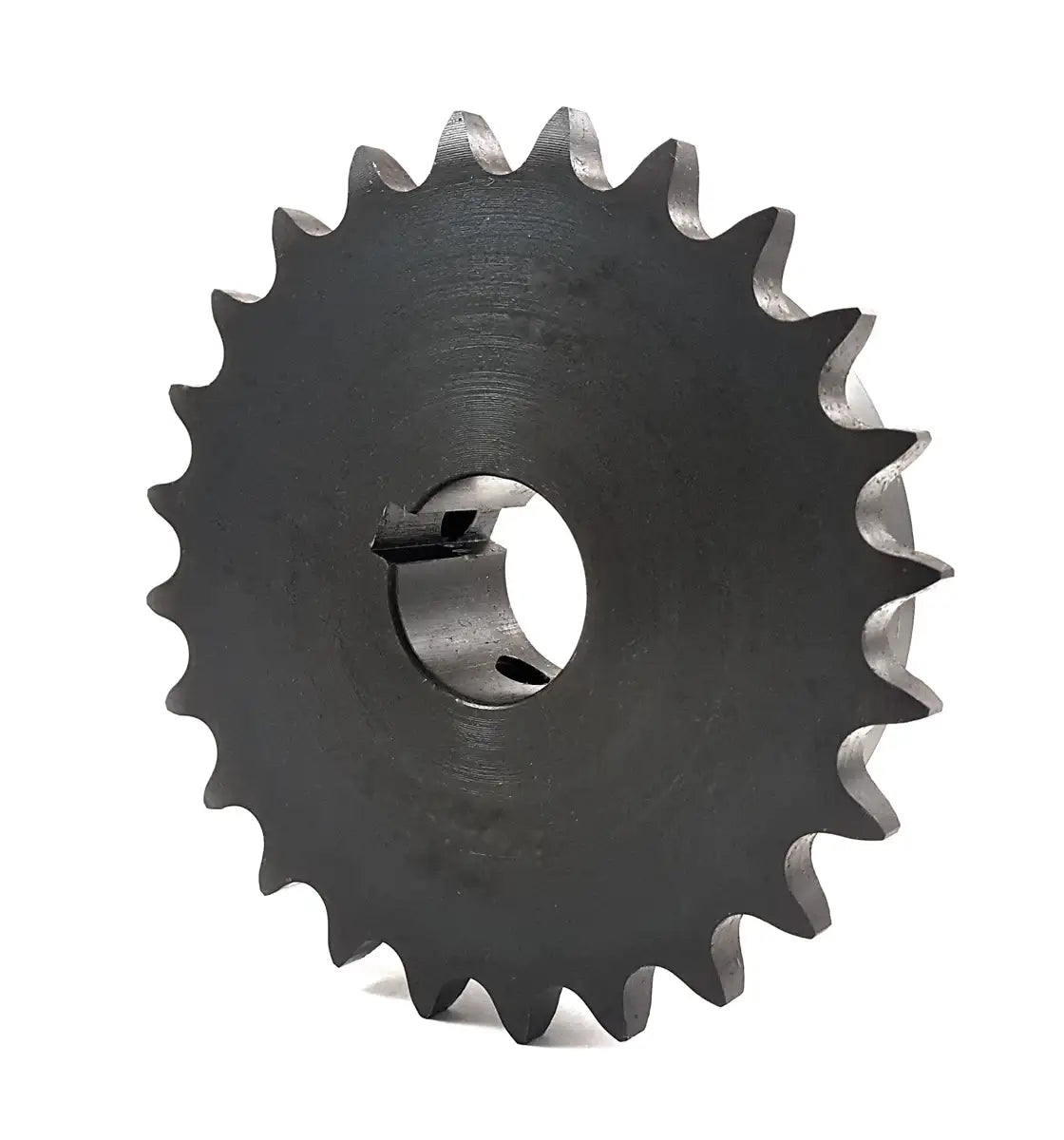

This 50BS24 sprocket featured a 1-1/2" finished bore with a key-way and two set screws. It is a durable, high quality, and precision sprocket with hardened teeth. Sprockets that have hardened teeth last longer and are much more durable than those that don't. Something else that is notable about this sprocket is that it fully meets all ANSI Standards, which insures proper contact between the #50 roller chain and sprocket thus preventing premature wear or breakage. This sprocket is also black oxide coated which increases resistance to the environment and will prevent early rust build up. We also offer stock bore sprockets, custom bore and made to order sprockets, and a full line of ANSI #50 roller chain. Fore more information, large quantities, or to get a custom sprocket please contact us and we will be happy to assist you.

50BS24 1 1/2" Finished Bore Sprocket Dimensions
  • Sprocket Size: 50BS24
  • Tooth Count: 24
  • Outside Diameter: 5.120"
  • Hub Type: B
  • Bore Size: 1-1/2"
  • Keyway Size: 3/8" X 3/16"
  • Hub Diameter: 3"
  • Length Thru Bore: 1-1/4"
  • Sprocket Weight: 3.30 LBS
  • Common Interchanges: 50BS24H, H50BS24, 50BS24-FB

Phone: (407) 347-3519
Email: sales@usarollerchain.com

Feature

  • Premium Quality Sprocket
  • Finished Bore Sprocket
  • Fully Meets ANSI Standards
  • Black Oxide Coated
  • Ultra High Performance
  • Extremely Durable
Featured image
  • Sprocket Size: 50BS24
  • Tooth Count: 24
  • Outside Diameter: 5.120"
  • Hub Type: B
  • Bore Size: 1-1/2"
  • Keyway Size: 3/8" X 3/16"
  • Hub Diameter: 3"
  • Length Thru Bore: 1-1/4"
  • Sprocket Weight: 3.30 LBS
  • Common Interchanges: 50BS24H, H50BS24, 50BS24-FB
