Dimensions:

- Chain Size: C2040
- Pitch (P): 1.000"
- Roller Width (W): 0.312"
- Roller Diameter (R): 0.312"
- Plate Height (H): 0.463"
- Plate Thickness (T): 0.060"
- Pin Diameter (D): 0.156"
- Chain Width (F): 0.640"
- Connecting Link Width (G): 0.754"
- Tensile Strength: 3,828 LBS
- Working Load: 594 LBS
- Weight: 0.34 LBS/ FT
Important Note:

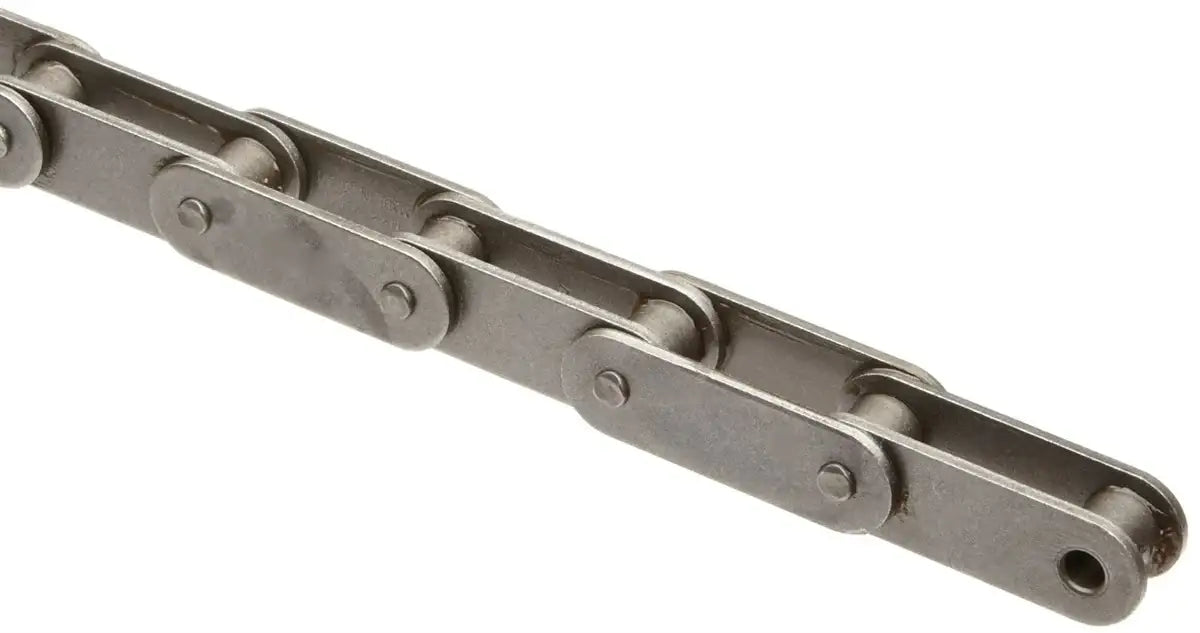

When looking for C2040 roller chain (photo below on the left) it is important, not to mix it up with C2042 roller chain (photo below on the right). This is a common and easy mistake to make because both of these chains are manufactured with the same side-plates, meaning that the part number stamped on the side of both chains is most likely "C2040".


Email:
See What All We Offer "Here"!
Feature
- Premium Roller Chain
- Ultra High Precision Components
- Extremely Durable
- Best Performance
- Slid Bushings And Solid Rollers
- Fully Meets All ANSI Standards
- Comes With Premium Lubricant Applied

- Chain Size: C2040
- Pitch (P): 1.000"
- Roller Width (W): 0.312"
- Roller Diameter (R): 0.312"
- Plate Height (H): 0.463"
- Plate Thickness (T): 0.060"
- Pin Diameter (D): 0.156"
- Chain Width (F): 0.640"
- Connecting Link Width (G): 0.754"
- Tensile Strength: 3,828 LBS
- Working Load: 594 LBS
- Weight: 0.34 LBS/ FT
