Premium C2040 Conveyor Chain - 10ft Box
Carbon Steel Chains
| Features | Premium/Premier | General Duty Plus | Economy Plus |
|---|---|---|---|
| Solid Bushings | Split Bushings in most cases | Split Bushings | |
| Solid Rollers | |||
| Through-Hardened Pins | Case-Hardened Pins | Heat-Treated Pins | |
| Case-Hardened Rollers | Heat-Treated in Some Chains | ||
| Case-Hardened Bushings | Heat-Treated in Some Chains | ||
| Wide Contour Plates | Standard Contour Plates | Standard Contour Plates | |
| Superior Pin to Plate Contact | |||
| High-Hold Riveting | Standard Dual-Stake Rivets | Standard Dual-Stake Rivets | |
| Factory Pre-Loading | Not Standard on Economy Chains | ||
| Specific Heat-Treatment on Every Component | Some Components Might be Heat-Treated | ||
| Premium Alloy & Carbon Materials | High-Quality Carbon Materials | Standard-Quality Carbon Materials | |
| Shot-Peened Components | Non Shot-Peened Components | Non Shot-Peened Components | |
| High-Precision Components | Standard Precision Components | Low Precision Components | |
| Conforms to ANSI B29.1 or ISO/DIN Standards |

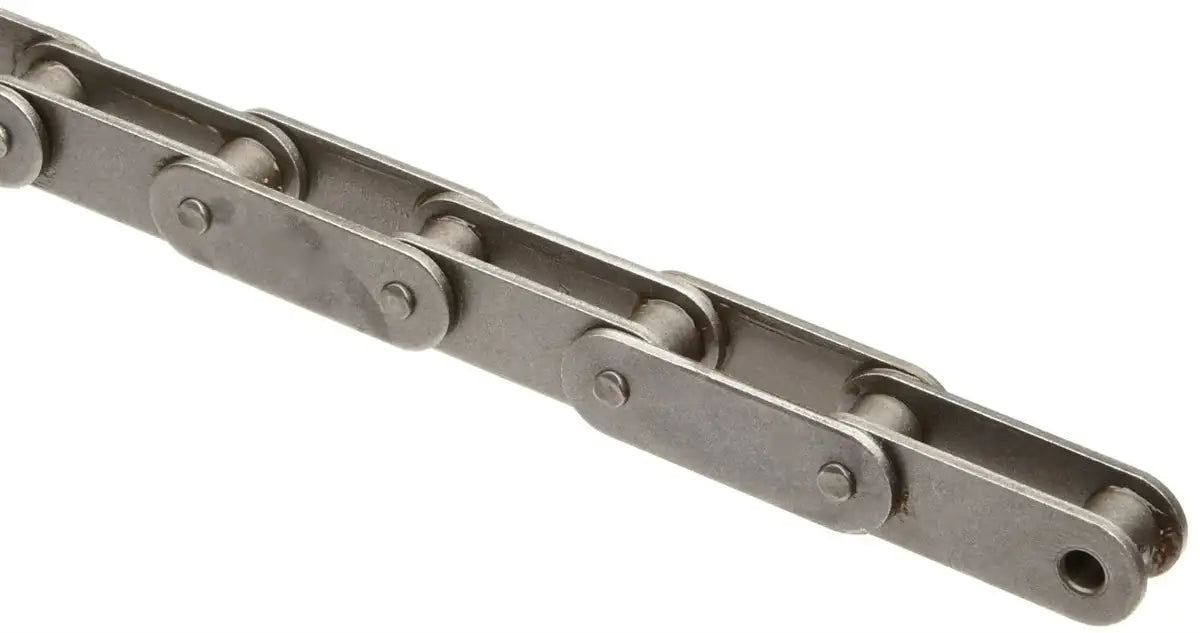

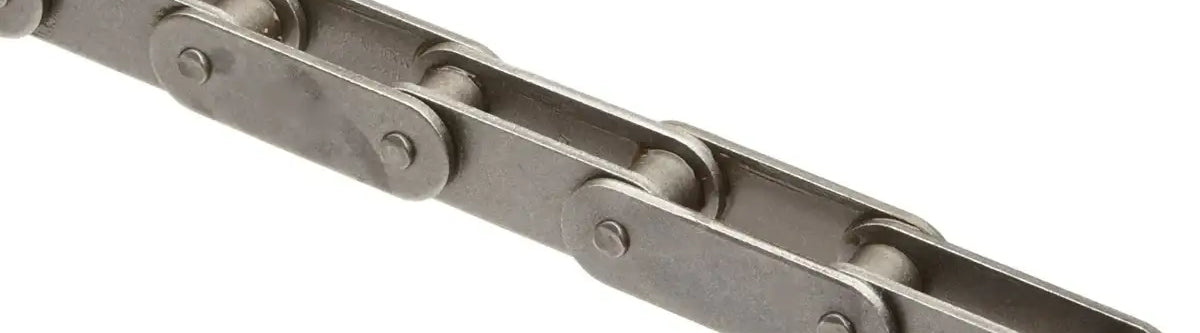

Premium C2040 conveyor chain is engineered to have the longest working life, best performance, and highest strength and manufactured using premium quality high-precision components. This C2040 conveyor chain is used in an extremely wide range of drive and conveying applications and dimensionally fully meets all ANSI Standards. This means that it will properly run on any ANSI C2040 sprocket that you may already be using. What really sets this chain apart is the solid bushing/ solid roller construction along with the usage of high-quality liberation creates a chain that not only exceeds in performance but also has as drastically better working life. In addition to C2040 chain we also offer a full line of the accompanying C2040 sprockets and attachments. This chain is commonly supplied as 10ft boxes including one connecting link each box, but we also offer 50ft reels, 100ft reels, and custom lengths per request. Fore more information or for large quantities please contact us and we will be happy to assist you!
Dimensions:
- Chain Size: C2040
- Pitch (P): 1.000"
- Roller Width (W): 0.312"
- Roller Diameter (R): 0.312"
- Plate Height (H): 0.463"
- Plate Thickness (T): 0.060"
- Pin Diameter (D): 0.156"
- Chain Width (F): 0.640"
- Connecting Link Width (G): 0.754"
- Tensile Strength: 3,828 LBS
- Working Load: 594 LBS
- Weight: 0.34 LBS/ FT
Important Note:
When looking for C2040 roller chain (photo below on the left) it is important, not to mix it up with C2042 roller chain (photo below on the right). This is a common and easy mistake to make because both of these chains are manufactured with the same side-plates, meaning that the part number stamped on the side of both chains is most likely "C2040".
VS.
Email:
See What All We Offer "Here"!
- Chain Size: C2040
- Pitch (P): 1.000"
- Roller Width (W): 0.312"
- Roller Diameter (R): 0.312"
- Plate Height (H): 0.463"
- Plate Thickness (T): 0.060"
- Pin Diameter (D): 0.156"
- Chain Width (F): 0.640"
- Connecting Link Width (G): 0.754"
- Tensile Strength: 3,828 LBS
- Working Load: 594 LBS
- Weight: 0.34 LBS/ FT
