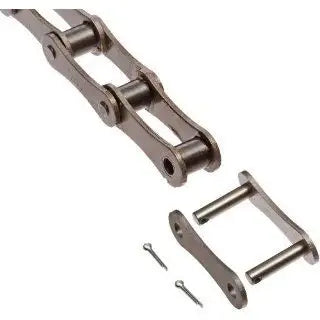

General Duty Plus A2040 Roller Chain - 10ft Box

General Duty Plus A2040 Roller Chain - 10ft Box

Note: Custom Cut to Length Chain Also Available
$49.99
$49.99
In Stock
On Sale Sold out
Product Code: GDP-A2040-ROLLER-CHAIN
In Stock

Login to Request a Quote

Other Customers Viewed
Made in USA A2040 Roller Chain Breaker
Made in USA A2040 Roller Chain Breaker
$99.99
Login
General Duty Plus A2040 Double Pitch Connecting (Master) Link
General Duty Plus A2040 Double Pitch Connecting (Master) Link
$2.99
Login
General Duty Plus A2040 Offset Link
General Duty Plus A2040 Offset Link
$6.99
Login
View full details
Description
Specification
General Duty Plus A2040 roller chain is manufactured to out-last and out-perform standard A2040 roller chains by being manufactured using higher precision components and higher quality components. This chain is also commonly referred to as A2040 agricultural roller chain due to its heavy usage in the agriculture industry but is used in a very wide range of other applications too. General Duty Plus A2040 chain dimensionally fully meets all ANSI Standards so it will operate on standard A2040 sprockets just like other chains. A2040 roller chain is typically supplied as 10ft boxes including one connecting link per box, be alternate lengths are available upon request. Additionally we offer a full line of high-quality A2040 chain sprockets right off the shelf! Fore more information or to get a quote on sprockets please contact us and we will be happy to assist you.

Dimensions:

  • Chain Size: A2040
  • Pitch (P): 1.00"
  • Roller Width (W): 0.312"
  • Roller Diameter (R): 0.312"
  • Plate Height (H): 0.463"
  • Plate Thickness (T): 0.060"
  • Pin Diameter (D): 0.156"
  • Chain Width (F): 0.640"
  • Connecting Link Width (G): 0.750"
  • Tensile Strength: 3,754 LBS
  • Weight: 0.30 LBS/ FT

Phone: (407) 347-3519
Email: sales@usarollerchain.com

See What All We Offer "Here"!

Feature

  • High Quality Chain
  • Solid Rollers
  • Fully Meets All ANSI Standards
  • Double Pitch
  • Durable Construction
  • Has Great Performance
Featured image
  • Chain Size: A2040
  • Pitch (P): 1.00"
  • Roller Width (W): 0.312"
  • Roller Diameter (R): 0.312"
  • Plate Height (H): 0.463"
  • Plate Thickness (T): 0.060"
  • Pin Diameter (D): 0.156"
  • Chain Width (F): 0.640"
  • Connecting Link Width (G): 0.750"
  • Tensile Strength: 3,754 LBS
  • Weight: 0.30 LBS/ FT
