A2040 Roller Chain

Roller Chain > More Roller Chains > Double Pitch Roller Chain > A Type Double Pitch Chains > A2040 Roller Chain

General Duty Plus A2040 Roller Chain - 10ft Box

Note: Custom Cut to Length Chain Also Available
$49.99
SKU: GDP-A2040-ROLLER-CHAIN
Item is in stockOnly 0 left in stockItem is out of stock Item is unavailable
Quantity

Login to Request a Quote

<p>Don’t see what you need?</p>

Don’t see what you need?

Call us

Buy it With:

 [{"variant_id":"51715156935023" , "metafield_value":""}]
General Duty Plus A2040 Roller Chain - 10ft Box Features
General Duty Plus A2040 Roller Chain - 10ft Box Specifications

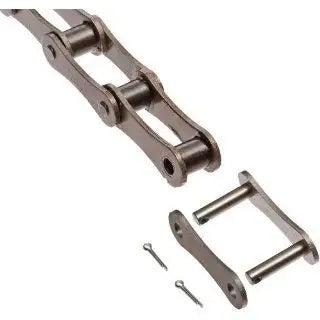

General Duty Plus A2040 roller chain is manufactured to out-last and out-perform standard A2040 roller chains by being manufactured using higher precision components and higher quality components. This chain is also commonly referred to as A2040 agricultural roller chain due to its heavy usage in the agriculture industry but is used in a very wide range of other applications too. General Duty Plus A2040 chain dimensionally fully meets all ANSI Standards so it will operate on standard A2040 sprockets just like other chains. A2040 roller chain is typically supplied as 10ft boxes including one connecting link per box, be alternate lengths are available upon request. Additionally we offer a full line of high-quality A2040 chain sprockets right off the shelf! Fore more information or to get a quote on sprockets please contact us and we will be happy to assist you.

Dimensions:
General Duty Plus A2040 Roller Chain - 10ft Box
  • Chain Size: A2040
  • Pitch (P): 1.00"
  • Roller Width (W): 0.312"
  • Roller Diameter (R): 0.312"
  • Plate Height (H): 0.463"
  • Plate Thickness (T): 0.060"
  • Pin Diameter (D): 0.156"
  • Chain Width (F): 0.640"

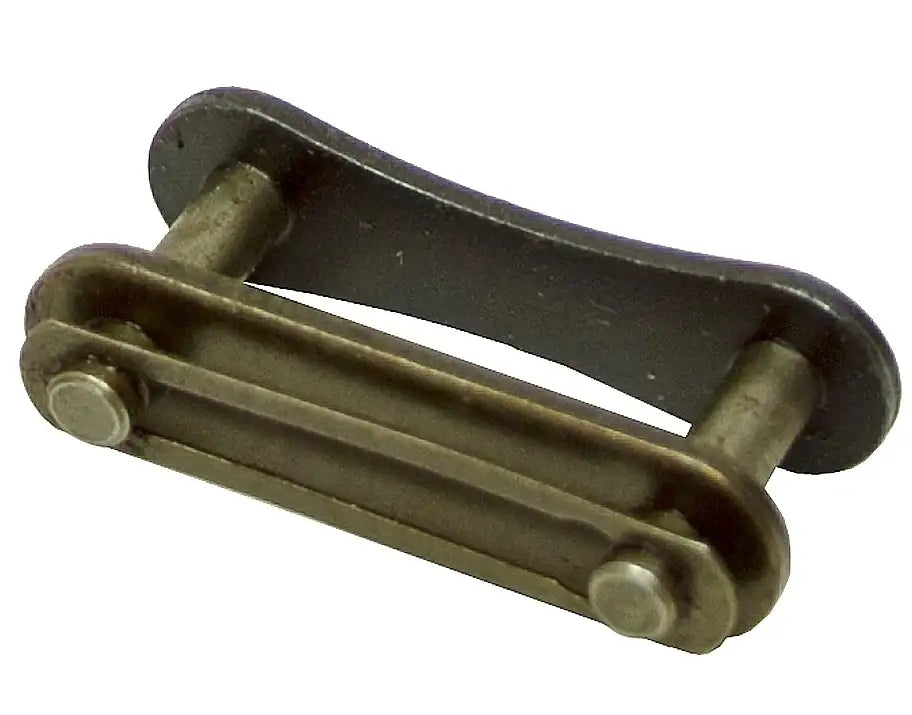

  • Connecting Link Width (G): 0.750"
  • Tensile Strength: 3,754 LBS
  • Weight: 0.30 LBS/ FT
