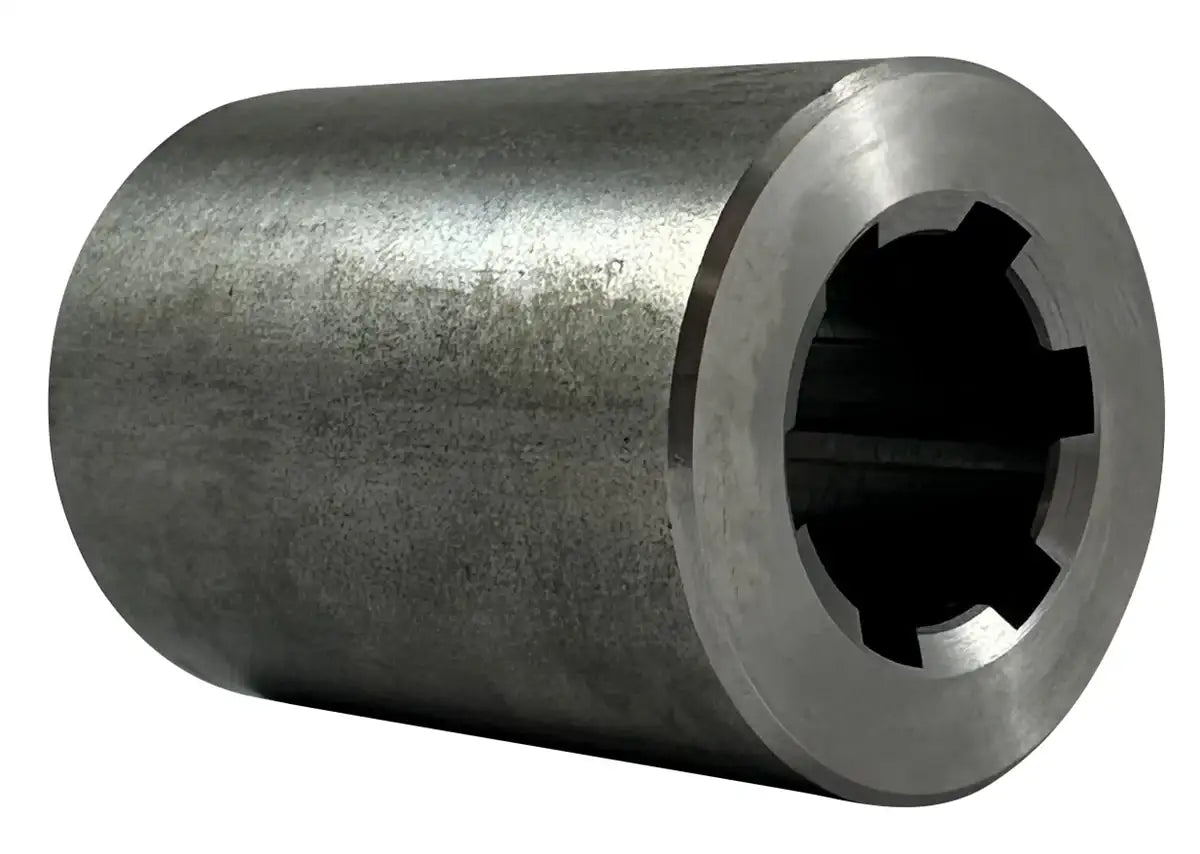

8 Spline Hub for 54mm Splined Shaft - C45 Steel
8-spline-hub-for-54mm-splined-shaft-c45

Alternative Views:
Our Price: $494.99


Availability: Usually Ships in 1 to 2 Weeks
Product Code: 64831400-HUB
Qty:

Description Technical Specs

Our premium 54mm spline hub, with 8 splines, is expertly machined from robust C45 steel to deliver optimal torque transmission with precise accuracy. Crafted to meet DIN ISO 14 standards, this hub ensures excellent fitment and compatibility with other brands. Spline hubs are used on splined shafts for various purposes, such as coupling two shafts or providing a mounting surface for components. For more information or to request a quote on our high-quality C45 steel 54mm splined shaft, please contact our customer service team, and we will be happy to assist you!

54mm Splined Shaft Hub Dimensions

Splined Shaft Hub
  • Part Number: 64831400
  • Material: C45 Steel
  • Profile Description: 46 X 54
  • Number of Keyways: 8
  • Dimension (D): 54mm
  • Dimension (d): 46mm
  • Dimension (b): 9mm
  • Dimension (A): 80mm
  • Length: 90mm
  • Weight: 2.25KG
Features
    • Precision Made from C45 Steel
    • Made for 54mm Splined Shafting
    • Conforms to DIN ISO 14 Standard
