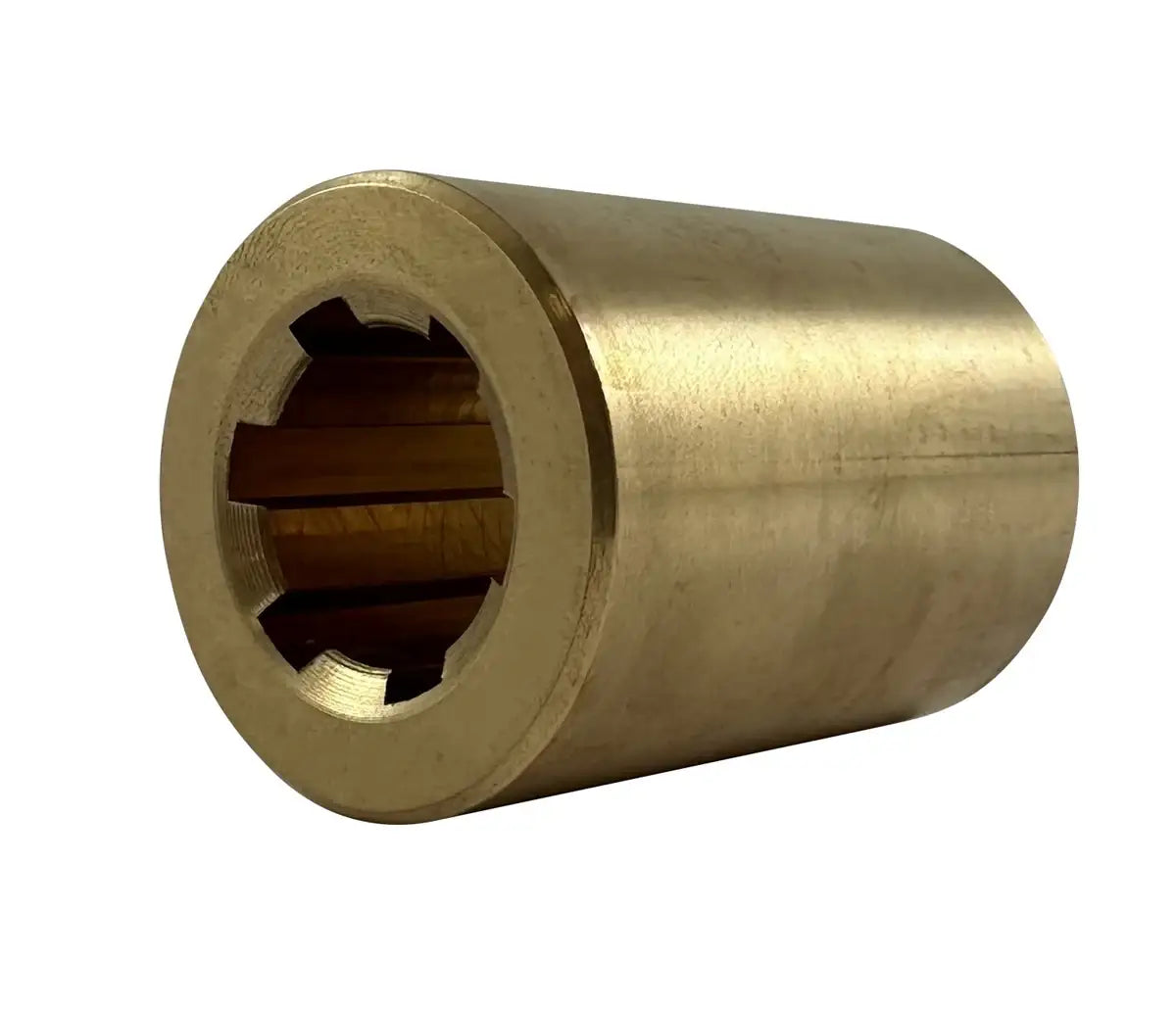

Our top-grade 22mm spline hub, featuring 6 splines, is expertly machined from premium red brass, offering outstanding resistance to corrosion and a broad operating temperature range. This 6-spline hub for 22mm splined shafts is crafted to DIN ISO 14 standards, ensuring excellent fitment and compatibility with other brands. Spline hubs are used on splined shafts for various purposes, such as coupling two shafts or providing a mounting surface. For more information or to request a quote on our premium brass 22mm splined shaft, please contact our customer service team, and we will be happy to assist you!

22mm Splined Shaft Hub Dimensions

• Part Number: 64835100
• Material: Red Brass
• Profile Description: KN 18 X 22
• Number of Keyways: 6
• Dimension (D): 22mm
• Dimension (d): 18mm
• Dimension (b): 5mm
• Dimension (A): 40mm
• Length: 50mm
• Weight: 0.3KG
