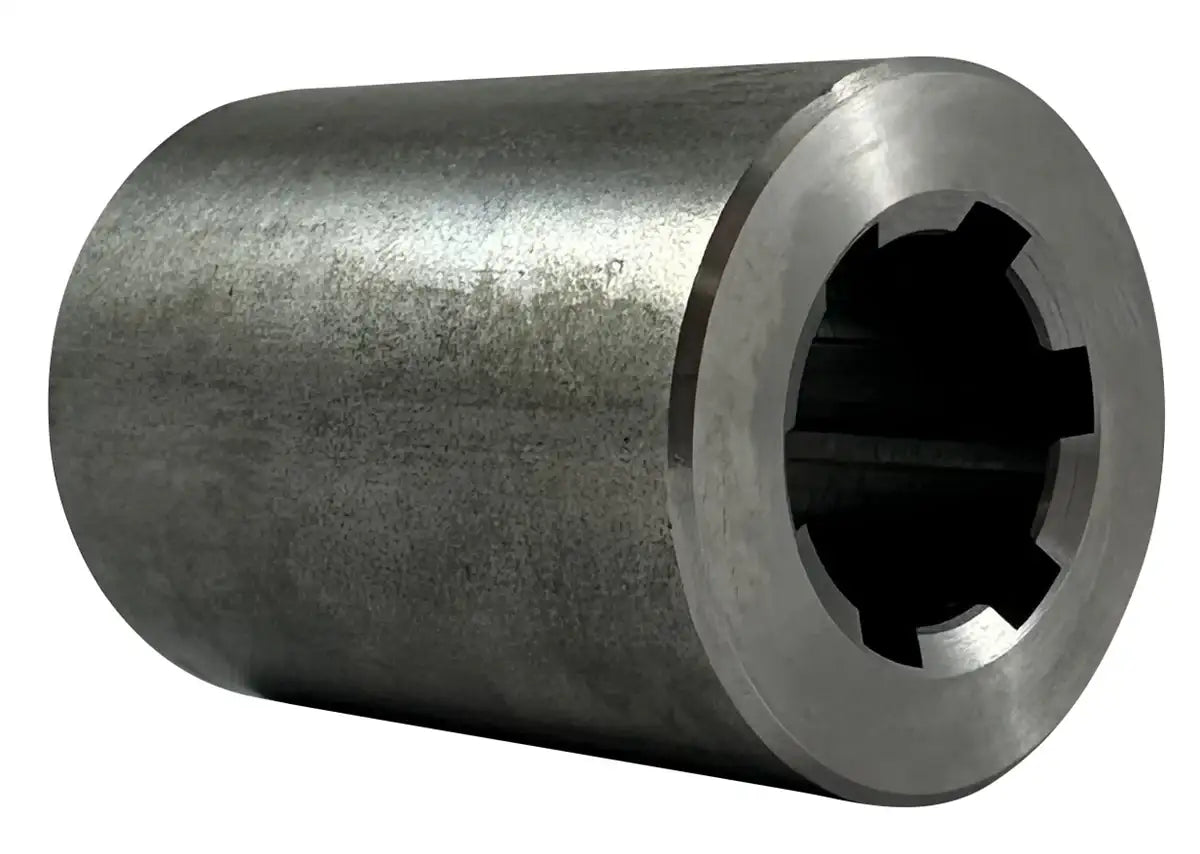

6 Spline Hub for 20mm Splined Shaft - C45 Steel
6-spline-hub-for-20mm-splined-shaft-c45

Alternative Views:
Our Price: $49.99


Availability: Usually Ships in 1 to 2 Weeks
Product Code: 64830500-HUB
Qty:

Description Technical Specs

Our premium 20mm spline hub, equipped with 6 splines, is precisely machined from high-strength C45 steel, designed to deliver maximum torque transmission with precise accuracy. Crafted to DIN ISO 14 standards, this hub ensures excellent fitment and compatibility with other brands. Spline hubs are used on splined shafts for various applications, such as coupling two shafts together or providing a mounting surface for components. For more information or to request a quote on our top-quality C45 steel 20mm splined shaft, please contact our customer service team, and we will gladly assist you!

20mm Splined Shaft Hub Dimensions

Splined Shaft Hub
  • Part Number: 64830500
  • Material: C45 Steel
  • Profile Description: KN 16 X 20
  • Number of Keyways: 6
  • Dimension (D): 20mm
  • Dimension (d): 16mm
  • Dimension (b): 4mm
  • Dimension (A): 32mm
  • Length: 45mm
  • Weight: 0.20KG
Features
    • Precision Made from C45 Steel
    • Made for 20mm Splined Shafting
    • Conforms to DIN ISO 14 Standard
